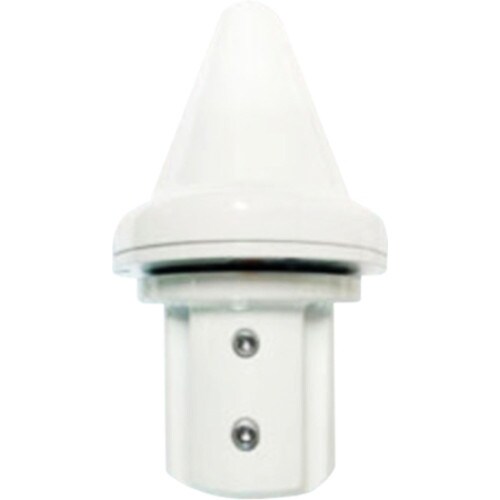

GPS Networking 38dB Gain GPS Antenna (100001192G)

The L1GPSA-N GPS antenna is a 38db gain antenna designed specifically for the GPS L1 carrier frequency. Item Height 3.87 inches, and Item Width 3.54 inches.
Key Features

• The L1GPSA-N is powered by 5VDC it receives on the center conductor.
• 1575.42 MHz Frequency, 3 dBiC Gain, 38 dB Amplifier Gain, and 50 Ohms RF Impedance.
• 1.5:1 Maximum VSWR, Right Circular Polarization, 5 DC Voltage, and N Female RF Connectors.
