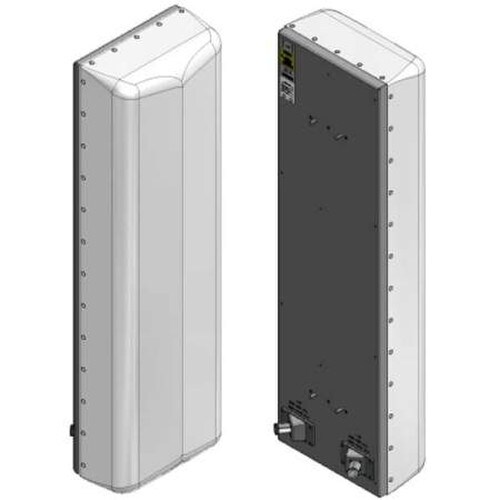

JMA 698-960 and 1695-2700 MHz X-Pol Dual Band Panel Antenna (XGU-465-I)

The JMA Wireless X-Pol Dual Band Panel Antenna. Internal diplexers. Item Height 50.5 inches, Item Length 10.6 inches, and Item Width 14.6 inches. Jumper Not Included.
Key Features

• Specific Frequency 698-745 MHz / 746-896 MHz / 897-960 MHz / 1695-2180 MHz / 2181-2360 MHz / 2496-2700 MHz.
• Gain dBi 13.9 dBi / 15.5 dBi / 15.2 dBi / 17.3 dBi / 16.7 dBi / 17.6 dBi.
• Horizontal Beamwidth 71 deg / 68 deg / 66 deg / 62 deg / 58 deg / 59 deg.
• 26 dB Minimum Front Back Ratio, +/- 45 Degrees Polarization, 1.5:1 Maximum VSWR, and 500 W / 250 W Maximum Power.
• Fixed Electrical Downtilt, (2) 7/16 DIN Female RF Connectors, Back Connector Placement, and 150 mile/h Maximum Rated Wind Velocity.
