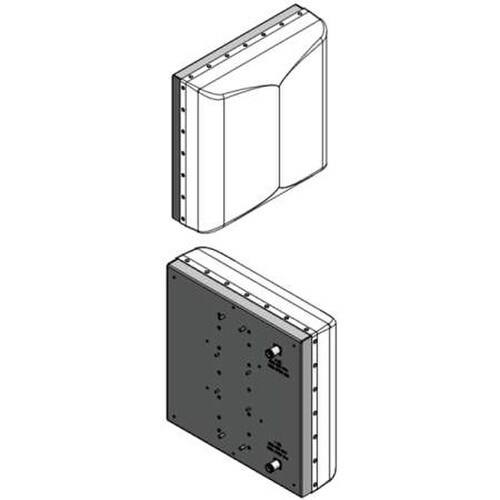

JMA 698-960 and 1695-2700MHz X-Pol Dual Band Panel Antenna (XGU-465)

JMA Wireless X-Pol Dual Band Panel Antenna. Item Height 12.0 inches, Item Length 50.5 inches, and Item Width 10 inches.
Key Features

• Specific Frequency 698-745 MHz / 746-896 MHz / 897-960 MHz / 1695-2180 MHz / 2181-2360 MHz / 2496-2700 MHz.
• Gain dBi 13.7 dBi / 14 dBi / 14.4 dBi / 17.0 dBi / 16.5 dBi / 16.7 dBi.
• Horizontal Beamwidth 71 deg / 68 deg / 66 deg / 62 deg / 55 deg / 59 deg.
• 26 dB Minimum Front Back Ratio, +/- 45 Degrees Polarization, 500 W / 250 W Maximum Power, Fixed Electrical Downtilt, (2) diplexed and (4) non-diplexed version 7-16 female DIN RF Connectors, Back Connector Placement, and 150 mile/h Maximum Rated Wind Velocity.
• Jumper Not Included. Standard bracket mounting hardware included.
