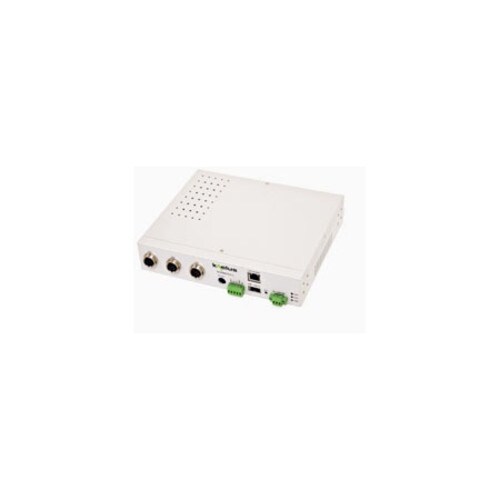

Kaelus 3-Port AISG Controller (ACU0001F1V1-1)

  • Brand: Kaelus
  • P\N: ACU0001F1V1-1
  • UPC: 729198829667
(0)No Reviews yet

Availability: Discontinued


Your Price: $1,685.43

Do you have questions?

Please contact our experts for assistance.

Description

The Kaelus Antenna Control Unit (ACU) is used to provide remote monitoring and RET control for TMA devices installed at a cell site. 8.66 x 7.28 x 1.73 inches.
The ACU0001 is able to communicate with AISGv1.1 or AISGv2.0 devices via a remote Ethernet connection or locally via laptop computer.
Controls and monitors RET and TMA devices via AISG protocol. Software programmable dry contact provides alarm report output to BTS. Provides remote software download capability.
Remote or local control via Ethernet interface. Able to store local site data such as GPS coordinates, site contact information, etc. Supports both +24V and -48V DC power inputs.
+24VDC / maximum 3.0A or -48VDC / maximum 1.5A Input voltage/current, +28VDC at 1.7A or +13VDC @ 3.3A (user selectable)Output voltage/current, 50W Maximum output to AISG devices, 10/100Mbps Network interface Ethernet, and 3 x 8-pin circular AISG female AISG connectors.
1U 19 inch rack and wall mounting brackets included. DC input connector HDR PLUG(F) SCR P3.81 GRN 3P R/A LF included. Alarm connector HDR PLUG(F) P3.81 GRN 5P R/A LF included.
