L-Com Connectivity Product 2.4 GHz Backfire Dish Antenna with 14 dBi (HG2414D)

  • Brand: L-Com Connectivity
  • P\N: HG2414D
  • UPC: 729198853532
(0)No Reviews yet

Availability: In Stock

Your Price: $111.00

Do you have questions?

Please contact our experts for assistance.

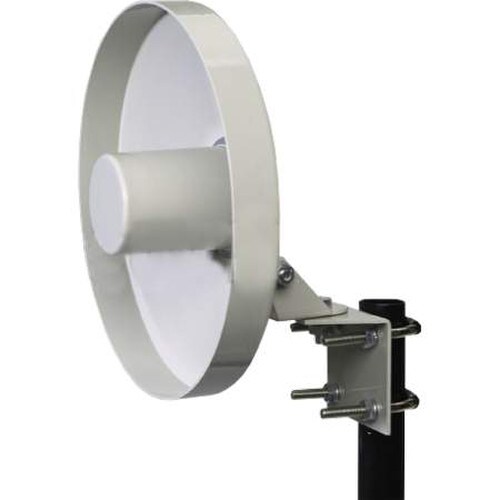

L-COM HG2414D 2.4 GHz Backfire Dish Antenna. Compact size and low profile. The HyperLink HG2414D "Backfire" is a compact high performance Wi-Fi reflector antenna. 10.25" in diameter.
Key Features
  • It is ideally suited for IEEE 802.11b/g/n wireless LANs and other systems operating in the 2.4GHz ISM band and CPE (Customer Premise Equipment) applications where directional coverage is desired.
  • These antennas feature a tilt and swivel mount for wall or mast mounting. The reflector design minimizes interference.
  • 2.4-2.5 GHz Specific Frequency, 14 dBi Gain, 30 dB Minimum Front Back Ratio, Horizontal / Vertical Polarization, and 25 deg Horizontal Beamwidth.
  • 1.5:1 Maximum VSWR, 50 W Maximum Power, DC Short Lightning Protection, N Female RF Connectors, and 150 mile/h Maximum Rated Wind Velocity.
  • Jumper Not Included.
