L-Com Connectivity Product 2.4 GHz Flat Batch Antenna with 8 dBi (HG2409PCL-NF)

  • Brand: L-Com Connectivity
  • P\N: HG2409PCL-NF
  • UPC: 729198957797
(0)No Reviews yet

Availability: In Stock

Your Price: $85.00

Do you have questions?

Please contact our experts for assistance.

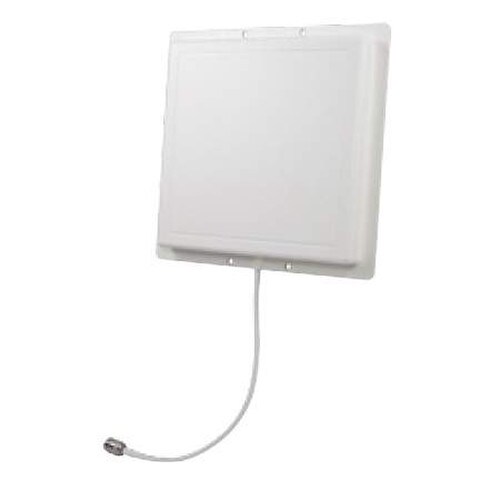

The HyperGain HG2409PCL series antennas are a compact Left Hand Polarized flat WiFi patch antenna providing 8 dBi gain with very broad coverage. Item Height 0.9 inches, Item Length 4.5 inches, and Item Width 4.5 inches.
Key Features
  • The use of a circular polarized antenna on a fixed AP can be advantageous if the linear polarized remote links are constantly moving. Circular polarized antennas have equal response to either horizontal or vertical polarized antennas.
  • It is suitable for both indoor and outdoor applications in the 2.4GHz ISM band, including IEEE 802.11b, 802.11g and 802.11n, Bluetooth and for public wireless hotspot applications.
  • 2400-2500 MHz Specific Frequency, 8 dBi Gain, 5.85 dBd Gain, Dual Polarization, 2.0:1 Maximum VSWR, and 100 W Maximum Power.
  • DC Short Lightning Protection, 0 deg Fixed Electrical Downtilt, SMA Female RF Connectors, Bottom Connector Placement, and 150 mile/h Maximum Rated Wind Velocity.
  • Jumper Not Included.
