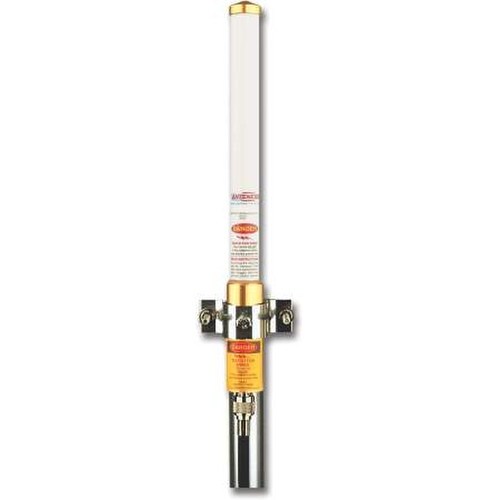

Laird Technologies 2.4-2.48GHz 5dBi Fiberglass Omni Antenna (FG24005)
- Brand: Laird Connectivity
- P\N: FG24005
- UPC: 646444527897
Do you have questions?
Please contact our experts for assistance.
Description
Description
LAIRD 2400-2480 MHz 5 dBi Omnidirectional Fiberglass Antenna. Direct N Female connector. Gold base. Order 65724 or 69293 clamp set separate. Item Length: 14 inches.
Key Features
Key Features
- Laird fiberglass base station antennas are collinear designs enclosed in a high density fiberglass, which is covered with a protective ultraviolet inhibiting coating.
- The radiating elements are made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane.
- The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a "cold" sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency.
- Vertical Polarization, 2.0:1 Maximum VSWR, 100 W Maximum Power, N Female RF Connectors, and Maximum Rated Wind Velocity: 125 mile/h.
- Jumper and hardware not included.
