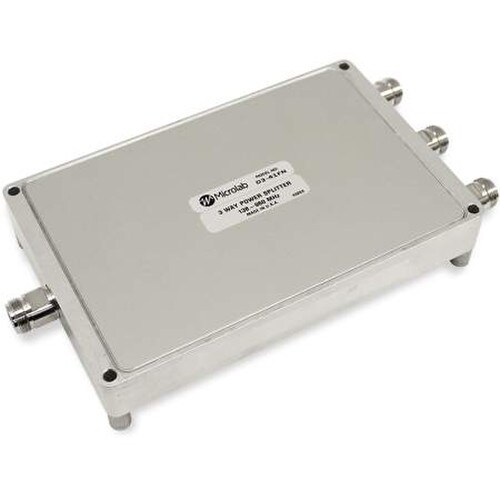

Microlab FXR 138-960 MHz 3-Way Splitter With N-Female Connectors (D3-41FN)

Microlab 3-way in-line Wilkinson splitter has been designed for low PIM applications where output isolation is preferable over the lowest possible loss. The wide frequency range of this design allows use with multiband antennas and leaky cable systems.

Special Order. Non-Cancellable and Non-Returnable

Key Features

• Frequency Range 138-960 MHz
• Maximum Power 100 W
• PIM Typical -161 dBc
• Loss 4.8 dB
• RF Connectors N-Female
• Maximum VSWR 1.4:1
• PIM Minimum -158 dBc
