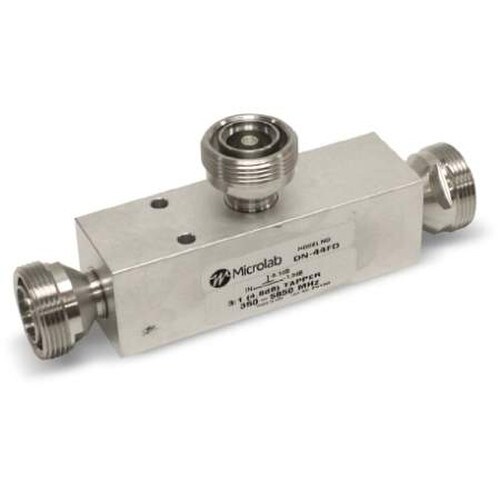

Microlab FXR 350-2700 MHz 8 dB Low PIM Tapper (DN-64FD)

  • Brand: Microlab FXR
  • P\N: DN-64FD
  • UPC: 729198832339
(0)No Reviews yet

Availability: In Stock


Your Price: $212.96

Do you have questions?

Please contact our experts for assistance.

Description

Description

This series of Tappers unevenly split high power cellular signals with minimal reflections or loss over the key wireless bands, the innovative asymmetric design ensures an excellent input VSWR and coupling flatness across specified bands. The lightweight design allows easy attachment to a wall using the supplied bracket. Designed with only a few solder joints and an air dielectric, loss is minimized and reliability enhanced.
Key Features
  • Frequency Range 350-2700 MHz
  • Maximum Power 500 W
  • PIM Typical -153 dBc
  • Nominal Coupling 8 dB
  • RF Connectors 7/16 DIN Female
  • Maximum VSWR 1.25:1
  • Output Split ratio 6:1
