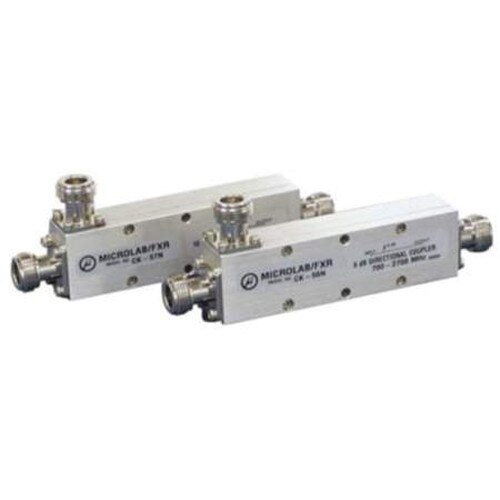

Microlab/FXR 694-2700 10dB Coupler NF (CK-57N)

Microlab CK-50N series of N type Directional Couplers, is a multi section, quarter wave, microstrip design for indoor applications covering all wireless bands from 694 to 2,700 MHz. Units couple off a defined fraction of signal from 5 to 20 dB with minimal reflections or loss. The wide frequency range allows use with multiband antennas and leaky cable systems and in wireless base stations. With minimal solder joints and an air dielectric, the dissipative loss has been minimized and reliability enhanced.

Special Order. Non-Cancellable and Non-Returnable

Key Features

• Maximum power 50 W with Nominal Coupling of 10 dB
• The Frequency Range is 694-2700 MHz
• Dimensions of 5.35" L x .81" W x 1.97" H
