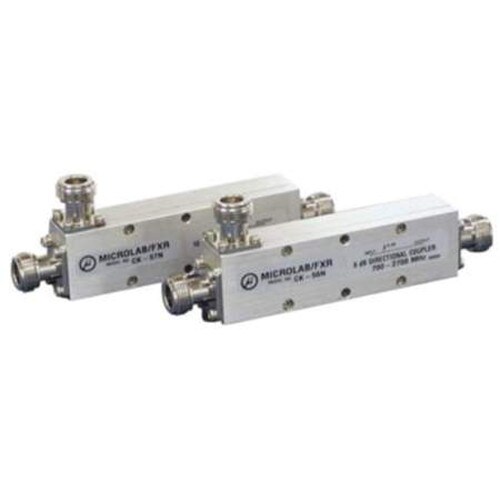

Microlab/FXR 694-2700 6db Coupler N-Female (CK-56N)
- Brand: Microlab FXR
- P\N: CK-56N
- UPC: 888063476266
Do you have questions?
Please contact our experts for assistance.
Description
Microlab CK-50N series of N type Directional Couplers, is a multi-section, quarter wave, microstrip design for indoor applications covering all wireless bands from 694 to 2,700 MHz. Units couple off a defined fraction of the signal from 5 to 20 dB with minimal reflections or loss. The wide frequency range allows use with multiband antennas and leaky cable systems and in wireless base stations. With minimal solder joints and an air dielectric, the dissipative loss has been minimized and reliability enhanced.
Key Features
- Special Order. Non-Cancellable and Non-Returnable
Key Features
- Nominal Coupling 6 dB
- Maximum Power 50 W
- RF Connectors N-Female
- Maximum VSWR 1.25:1
- Dimensions of 1.97" L x .81" W x 5.35" H
