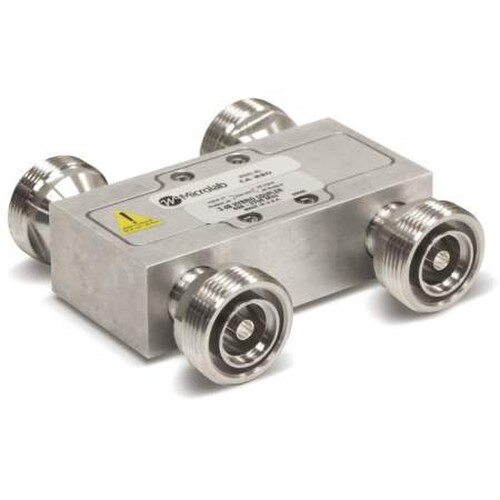

Microlab FXR 694-2700 MHz 2x2 Hybrid Coupler (CA-88E)

The CA-86D is a smaller sized Hybrid that has been designed to meet the special needs of the wireless market. Hybrids are most commonly used to combine two wireless carriers to a single antenna feed or distribution cable. This requires the termination of one output port in 50W and results in a 3 dB loss in each signal. In situations where two similar feeds are required, as required for an in-building application, both outputs may be used, eliminating the need for a termination and the 3 dB loss.
Key Features

• Frequency Range 694-2700 MHz
• Nominal Coupling 3 dB
• PIM Typical -161 dBc
• Coupled Loss (dB) 3.1
• Maximum Power 200 W
• Directivity 25 dB
• Maximum VSWR 1.20:1
• RF Connectors 4.3-10 Female
• Dimensions 1.00"L x 3.55"W x 3.2"H
