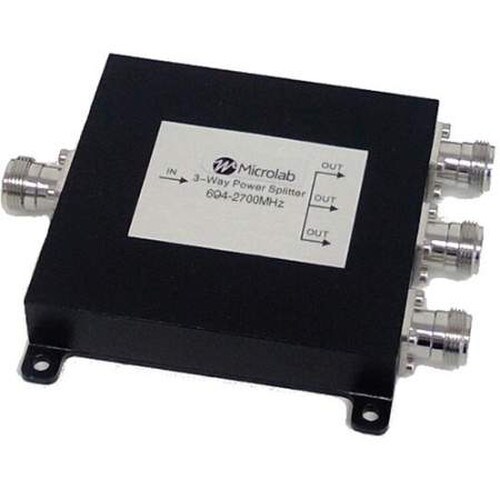

Microlab/FXR 694-2700 MHz 3-Way Splitter With N-Female Connectors (D3-72FE)

Microlab/FXR 3-Way splitter is one of the series of Wilkinson style Power Dividers that has been designed for low PIM applications where output isolation is preferable over the lowest possible loss. The wide frequency range of this design allows use with multiband antennas and leaky cable system.

Special Order. Non-Cancellable and Non-Returnable

Key Features

• Frequency Range 694-2700 MHz
• Minimum Isolation 20 dB
• Maximum Power 50 W
• Directivity 30 dB
• RF Connectors N-Female
• Maximum VSWR 1.20:1
• Low PIM Design
• Low RF Insertion Loss
