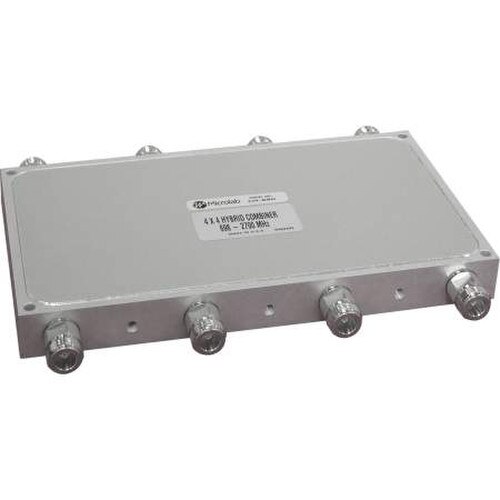

Microlab/FXR 694-2700 MHz 4X4 Isolated Combiner (CM-88N)

The CM88-N 4x4 Hybrid is a matrix of four 3 dB Hybrid Couplers arranged so that signals applied to any of the four inputs will be split equally between the four outputs. This allows simple combining of multiple signals in the same wireless band to a common feeder cable, as might be required in a neutral host in-building distributed antenna system, or the decoupled combining of 4 transmitter or receiver signals equally to 4 antennas. Unused ports must be terminated externally in 50W,

Special Order. Non-Cancellable and Non-Returnable

Key Features

• Frequency Range is 694-2700 MHz with Nominal Coupling of 6 dB
• Dimensions of 8.29" L x 1.34" W x 6.77" H
• Maximum Power is 100 W and Maximum VSWR is 1.20:1
• RF Connector N-Female
