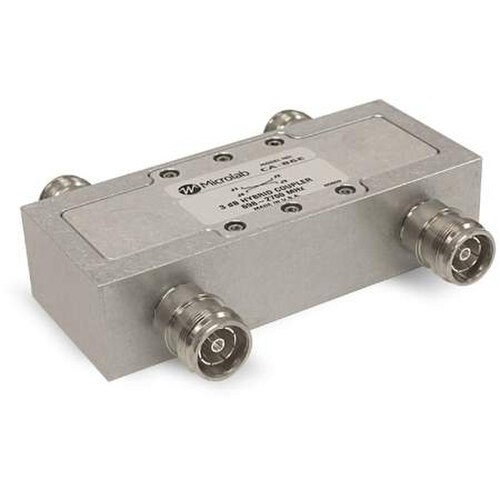

Microlab FXR 694-2700 MHz High Power Hybrid Combiner (CA-86E)

The CA-86E Hybrid Coupler has been designed to meet the special needs of the higher power needs of the wireless market. The most common use is to combine two wireless carriers in the band to a single antenna feed or distribution cable. This requires the termination of one output port in 50O and results in a 3 dB loss in each signal. Note that the termination used must have a return loss of at least 25 dB and PIM below -153 dBc for the isolation and PIM performance to be maintained. A high power low PIM cable load appropriate to the power dissipation, is recommended to maintain this performance.

Special Order. Non-Cancellable and Non-Returnable

Key Features

• Frequency Range 694-2700 MHz
• Nominal Coupling 3 dB
• PIM Typical -160 dBc
• Maximum Power 250 W
• RF Connectors 4.3-10 Female
• Maximum VSWR 1.20:1
• Mfg. Warranty 1 Year
