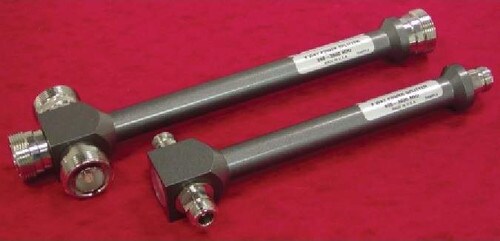

Microlab FXR 694-3800 MHz 3-Way Splitter (D3-16FD)

This Microlab Model Dx-16 series 3-way power splitter is designed to evenly split high power cellular and WiMAX signals with minimal reflections or loss. All joints are moisture sealed to meet the IP67. The mechanical shape allows easy attachment to wall using the supplied clips. The wide frequency range allows use with multiband antennas and leaky cable systems. With few solder joints and an air dielectric, the loss has been minimized and reliability enhanced. Outdoor rated with 7/16 DIN connectors. Units are available with either N-Type connectors. Low PIM <-153 dBc (2 x +43 dBm tones).
Key Features

• 4.8dB split loss through the splitter
• 694-3800 MHz frequency range; up to 300 watts
• 7/16 DIN female
• Tubular body style
• One year warranty
