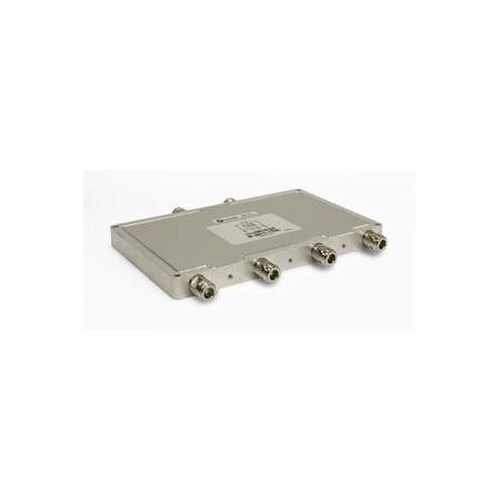

Microlab FXR Hybrid Matrix 4x4 694-2700 MHz (CM-88E)

The CM-88E 4x4 hybrid combiner is a matrix of hybrid couplers arranged so that signals applied to any of the four inputs will be split equally between the four outputs. This allows combining of multiple signals in the same wireless band to a common feeder cable, as might be required in a neutral host in-building distributed antenna system.
Key Features

• Frequency Range 694-2700 MHz
• Nominal Coupling 6.2 dB
• PIM Typical -161 dBc
• Maximum Power 150 W
• RF Connectors 4.3-10 Female
• Dimensions 4.59" L x 8.70" W x 1.42" H
