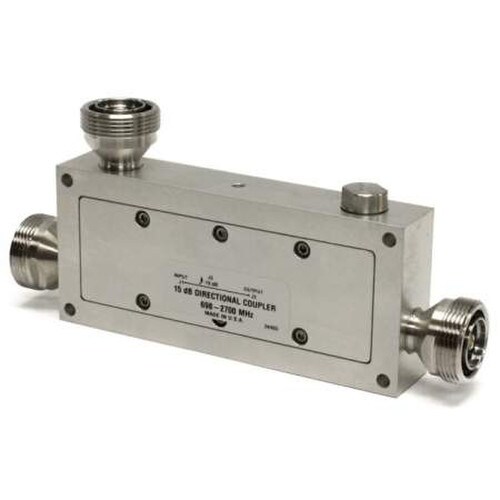

Microlab FXR Tapered Stripline 694-3600 MHz 15 dB (CK-15E)

  • Brand: Microlab FXR
  • P\N: CK-15E
  • UPC: 729198871161
(0)No Reviews yet

Availability: In Stock

Your Price: $642.51

Do you have questions?

Please contact our experts for assistance.



The CK-15E series of Directional Couplers is a tapered stripline design covering from 698 to 3,600 MHz. Units couple off a defined fraction of the signal with minimal reflections or loss. Each model is available as a 4 port coupler. The extremely wide frequency range allows use with multiband antennas, leaky cable systems and wireless base stations. With minimal solder joints and a low loss dielectric, the dissipative loss has been minimized and reliability enhanced.
Key Features
  • Frequency Range 694-3600 MHz
  • Nominal Coupling 15 dB
  • PIM Typical -161 dBc
  • Maximum Power 200 W
  • Directivity 20 dB
  • RF Connectors 4.3-10 Female
  • Maximum VSWR 1.20:1
  • Dimensions 6.75" L x 1.00" W x 3.03" H
