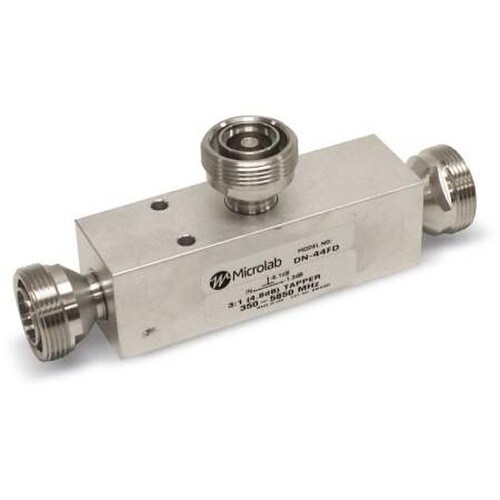

Microlab FXR Tappers 350-5850 MHz 30 dB 7-16 Female (DN-14FD)

Microlab DN-x4FD series of Tappers unevenly split high power cellular signals in fixed ratios from 1000:1 to 2:1 with minimal reflections or loss over the key wireless bands in the range 350 - 5,850 MHz. The innovative asymmetric design ensures an excellent input VSWR and coupling flatness across the specified bands, even down to a 2:1 split. Designed with only a few solder joints and an air dielectric, loss is minimized and reliability enhanced.
Key Features

• Frequency Range 350-5850 MHz
• Nominal Coupling 30 dB
• PIM Typical -161 dBc
• Maximum Power 500 W
• PIM Minimum -153 dBc
• RF Connectors 7/16 DIN Female
• Maximum VSWR 1.25:1
