NewMar - 48VDC 5A DIN Power System (DIN-UPS-48-5)

NewMar - 48VDC 5A DIN Power System (DIN-UPS-48-5)

Key Features and Benefits

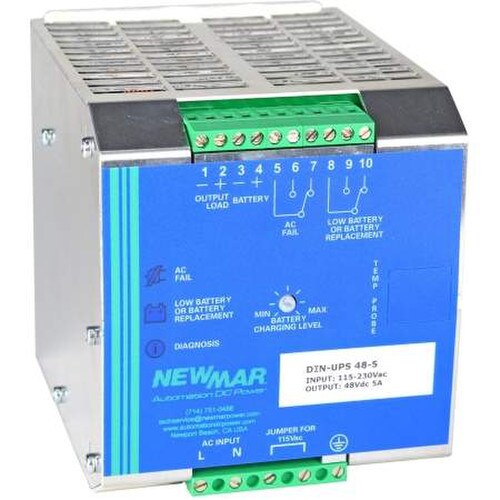

Introducing the NewMar DIN-UPS-48-5, a compact, DIN-Rail DC UPS that powers loads, charges, and monitors back-up batteries. This power system is ideal for automation and wireless system transmitter applications, combining all system power functions in one compact DIN rail mount unit.

• Separate outputs for load and battery
• Load priority circuit ensures power is dedicated first to the load
• 3 step charging for rapid battery recovery
• Programmable for battery type with optional temperature compensation sensor
• Battery automatically supports load anytime AC fails
• Low voltage disconnect protects battery from total discharge
• Automatic periodic battery health diagnosis
• High operating temperature range up to 70 C
• Alarm contacts: AC fail, battery at Risk
• Communication MODBUS via RS-45 Interface
• CE Approved/Designed to UL 1950

Technical Specifications

• Mounting Type: DIN Rail
• Power Source Type: DC
• AC Voltage Range: 90-264V
• DC Voltage Range: 48-48.1V
• Crowbar Protection: YES

Experience the NewMar Difference

With the NewMar DIN Power System, you can ensure the smooth operation of your critical loads. Its load priority circuit ensures power is dedicated first to the load, preventing a discharged battery from impacting operation. The 3 step charging allows for rapid battery recovery, and the system is programmable for battery type, with an optional temperature compensation sensor. The battery automatically supports the load anytime AC fails, and the low voltage disconnect protects the battery from total discharge. The system also includes automatic periodic battery health diagnosis.

Designed to UL 1950 and CE approved, the NewMar DIN Power System offers crowbar protection and a high operating temperature range up to 70 C. It also features alarm contacts for AC fail and battery at risk, and communication MODBUS via RS-45 Interface.

Experience the peace of mind that comes with knowing your power system is reliable, efficient, and built to last. Choose the NewMar DIN Power System for your automation and wireless system transmitter applications today.

Don't wait. Experience the reliability and efficiency of the NewMar DIN Power System now.
