Plasma Cloud PS8-L Switch (PS8-L)
- Brand: Plasma Cloud
- P\N: PS8-L
Live Chat
Contact Us
Description
Description

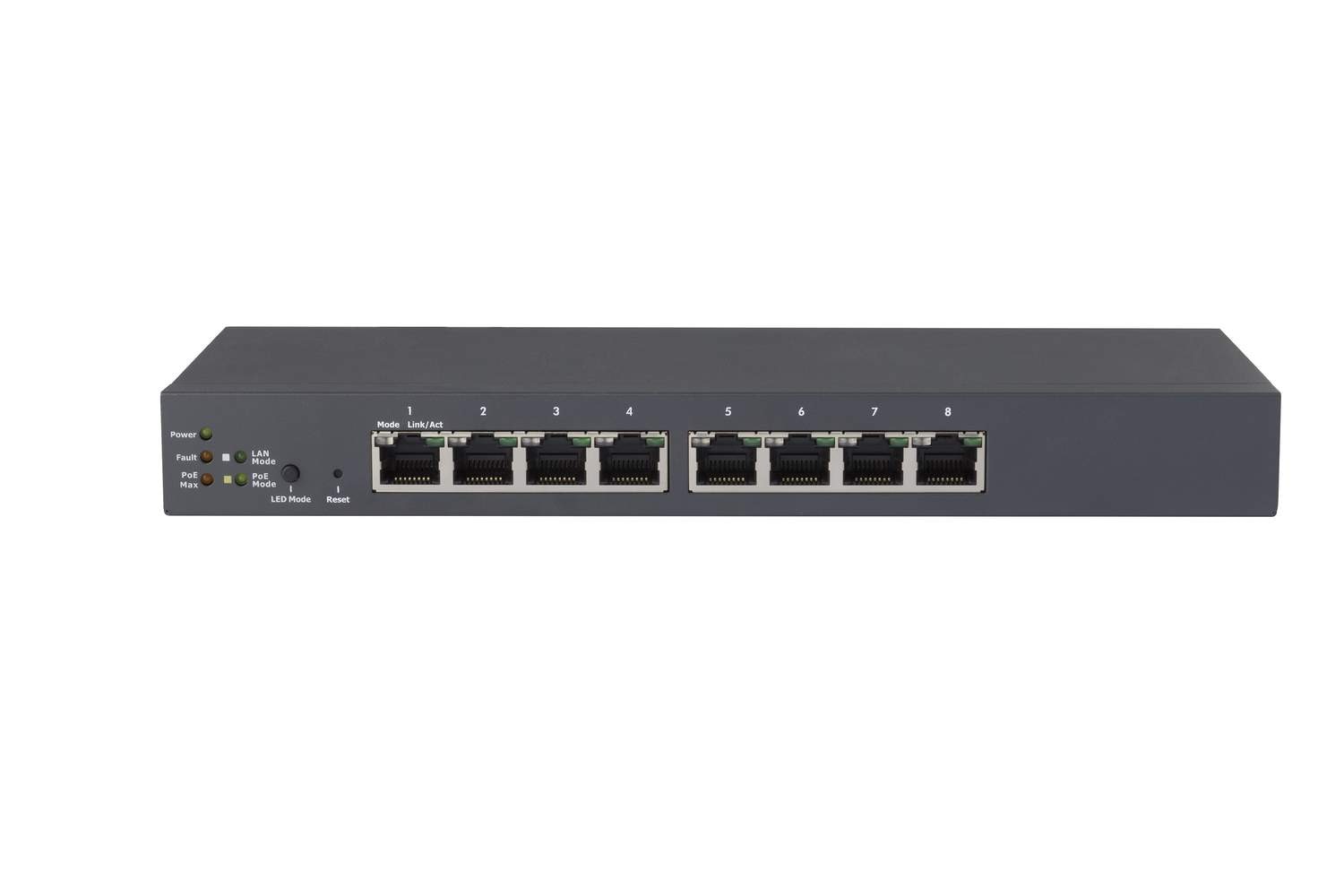

The Plasma Cloud PS8-L desktop switch is a compact and cost-effective solution for small offices or homes needing to power only few PoE devices. With its 8x 1 Gigabit Ethernet ports and a PoE budget of 55 W, it can comfortably power up to 3x 802.3af devices or 1x 802.3at devices at the same time. The backplane switching capacity of 16 Gbps allows to max out the Gigabit throughput on all Ethernet ports without hitting any bottleneck.
Plasma Cloud switches support 802.3af and 802.3at PoE standards. Each port comes with the capability to detect the PoE standard required by the connected device. Therefore, a mix of 802.3af and 802.3at power consumers can be powered. The amount of power supplied on each PoE port may vary greatly depending on power consumption of the connected device. To give an example: although the PA300 uses 802.3af PoE standard, its actual power consumption is 11.5 W or less (depending on system load and cable length). Consequently, a PS8-L allows to power up to 4x PA300 despite the PoE standard defining a power consumption of 15.4 W.
Power over Ethernet (PoE) allows you to combine data transfer and power supply using a single Ethernet cable which terminates in a PoE switch. Thereby, cabling effort can be reduced and power management of all connected devices greatly simplified. Combined with the powerful Plasma Cloud console, all connected devices can be centrally managed, power consumption monitored, power schedules automated and even non-Plasma Cloud devices power cycled when needed. Almost all networking equipment today supports PoE, including WiFi Access Points, IP cameras, VoIP phones, and many more IoT devices. This allows for easy installation since PoE enables you to place devices in locations removed from power outlets (up to 100m Ethernet cable length).
Key Features
Plasma Cloud switches support 802.3af and 802.3at PoE standards. Each port comes with the capability to detect the PoE standard required by the connected device. Therefore, a mix of 802.3af and 802.3at power consumers can be powered. The amount of power supplied on each PoE port may vary greatly depending on power consumption of the connected device. To give an example: although the PA300 uses 802.3af PoE standard, its actual power consumption is 11.5 W or less (depending on system load and cable length). Consequently, a PS8-L allows to power up to 4x PA300 despite the PoE standard defining a power consumption of 15.4 W.
Power over Ethernet (PoE) allows you to combine data transfer and power supply using a single Ethernet cable which terminates in a PoE switch. Thereby, cabling effort can be reduced and power management of all connected devices greatly simplified. Combined with the powerful Plasma Cloud console, all connected devices can be centrally managed, power consumption monitored, power schedules automated and even non-Plasma Cloud devices power cycled when needed. Almost all networking equipment today supports PoE, including WiFi Access Points, IP cameras, VoIP phones, and many more IoT devices. This allows for easy installation since PoE enables you to place devices in locations removed from power outlets (up to 100m Ethernet cable length).
Key Features
- 8x 1 Gigabit Ethernet ports
- 55 W PoE budget and 16 Gbps switching capacity
- Zero config, plug-and-play networking
- Free cloud-based web console for complete management
- Installation kit included
