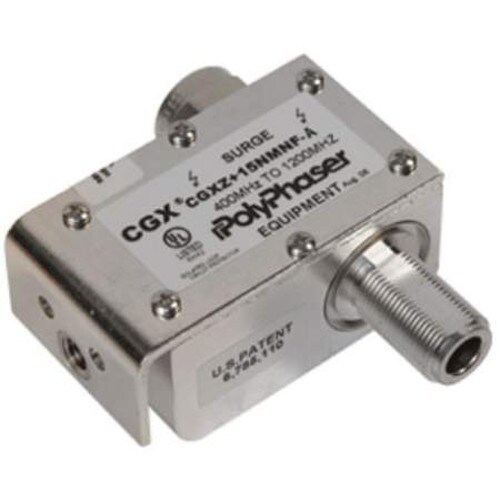

PolyPhaser DC Pass Protector 15VDC (CGXZ-15NMNF-A)

These units use separate RF (dc-blocked) and dc paths through the protector. This design results in low throughput voltage and energy. The Best protection when dc is required to operate tower top amplifiers and active antennas. Maximum Power (Watts) Receive Only Throughput Energy 550 µJ Conn. Side N Female Maximum DC 15V Frequency Range 800-2500 MHz Product Bulkhead Mount DC Pass Arrestor Conn. Side N Female Inject, Pick, or Both Pass Mfg.

Key Features:

• Line Voltage:15 VDC
• Frequency Range:400-1200 MHz
• Maximum Power:300 W
• Turn On Voltage:16.5 VDC
• Nominal Insertion Loss:0.1 dB
• Maximum Throughput Energy:1500 µJ
