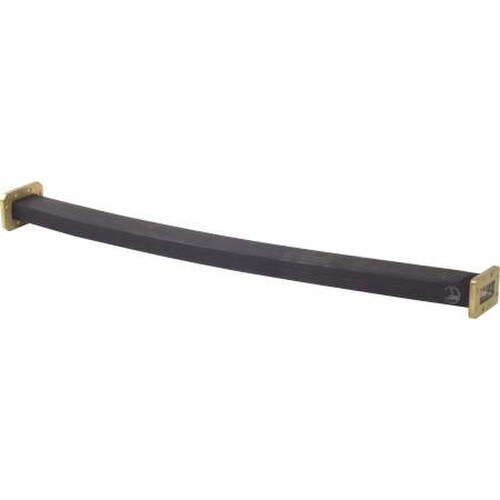

RFS 24-Inch WR137 FlexTwist CPR137G to CMR137 Interface (400146)

  • Brand: RFS
  • P\N: 400146
  • UPC: 729198201739
(0)No Reviews yet

Availability: Backorder


Your Price: $638.00

Do you have questions?

Please contact our experts for assistance.

Description

Description

RFS' FlexTwist is engineered to provide exceptional low-loss electrical performance. It is also designed for fast, accurate installation, even in the most challenging environments.
The FlexTwist's core is created by helically winding a silver-coated brass strip to form a continuous, uniform rectangular tube. A solder fillet is then wound around the core, creating a seal that eliminates RF and pressure leakage. A protective neoprene jacket provides additional mechanical support.
Controlled construction of the core results in an ideal form that provides repeatable return-loss and insertion-loss performance during flexing. The flex twist features a neoprene jacket that provides environmental and mechanical protection. Each purchase includes a one-year manufacturer warranty.
Key Features
  • Designed to provide exceptional low-loss electrical performance
  • 2-feet in length
  • Features CPR137G to CMR137 interface
  • Neoprene jacket is highly resistant to oil and other fluids, as well as to ozone attack
  • EIA Size: WR137
  • Frequency Range: 5.925-7.125 GHz

Special Order. Non-Cancellable and Non-Returnable
