Rohn - Top Section with Threaded 10-in Pipe for 25G (25AG1)

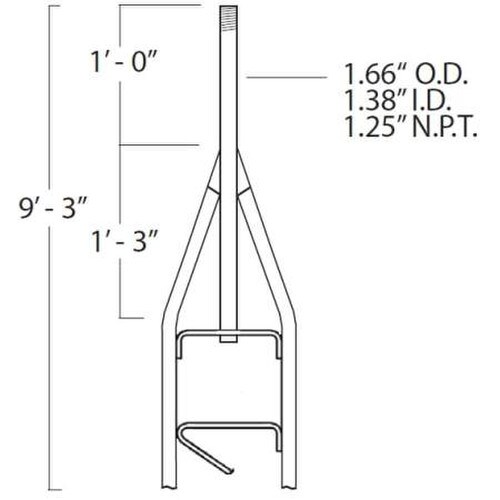

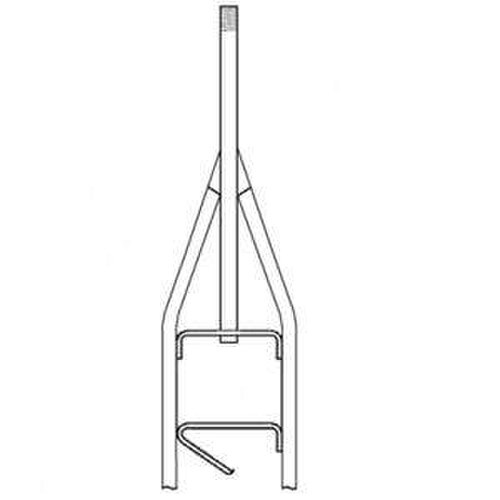

The ROHN R-25AG1 25G standard top section features the same 12 & frac12 in face and 5/16-in solid serpentine Zig-Zag bracing as the standard 25G tower sections and it also comes with a tapered top and integrated mounting pipe. The pipe, measured from the apex of the side rails, measures 1.66-in OD x 10-in and features 1 & frac14 in NPT threading at the top.

You can connect the 9-ft 3-in long R-25AG1 to any standard ROHN 25G tower section using the included bolts and double-bolted leg connections. The entire section has been completely hot-dip galvanized for years of worry-free corrosion protection and it can be used in guyed, self-supporting and bracketed tower configurations.
