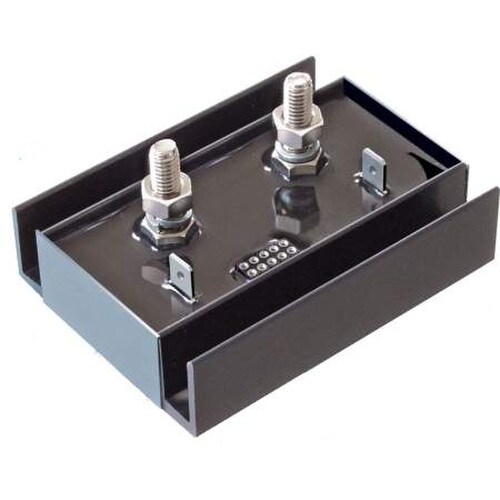

Samlex Battery Guard 60A (BG-60)

  • Brand: Samlex America
  • P\N: BG-60
  • UPC: 622988086502
(0)No Reviews yet

Availability: Discontinued

Your Price: $190.30

Do you have questions?

Please contact our experts for assistance.


The Samlex America BG-60 Battery Guard is designed to prevent excessive discharge of the battery and voltage caused by a faulty alternator or charger with a low and high voltage disconnect. The Battery Guard is microprocessor controlled and can be programmed to engage or disengage at ten different voltage levels for 12 and 24 volt battery systems with 60 amps of power. This delay timer constantly measures the battery. If battery voltage is too low for 15 seconds, an alarm contact/output is activated. The alarm contact is activated if overvoltage is detected.

Key Features:
  • Amperage: 60A
  • Dimension: 3.15x2.4x1.6 inches
  • Polarity is positive
  • Input voltage: 12V, Voltage Range: 6-35V
  • 2 year warranty
