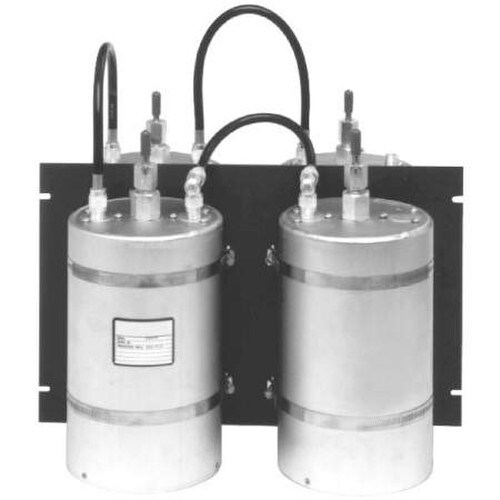

Sinclair 4-Cavity Pass-Reject Multicoupler 415-430 MHz (C3037-2)

Sinclair's Multicoupler offers excellent performance combined with ease of expandability required in many multicoupling systems. Each multicoupler channel consists of a reject cavity and one or more bandpass cavities, depending on the selectivity required. The reject cavity acts as a switch, diverting the wanted channel frequency to or from the antenna while allowing the remaining channel frequencies to flow in the antenna feed-thru line to or from the remaining C-Series multicoupler channels.
Because cable lengths between the multicoupler channels are not critical, additional channels may be easily added in the field. However, in order to minimize losses due to cabling, these interconnecting cables should be as short as possible. These highly versatile combiners offer improved performance through the addition of single or dual stage isolators and/or one or more Q-circuit cavities wherever they are required. Each purchase includes a two-year manufacturer warranty.
Key Features

• Combines transmitters or receivers with inter-channel spacing down to 1 MHz
• Features three bandpass cavities and one reject cavity
• High selectivity ideally suited for applications where significant expansion is contemplated
• Dimensions: 14.9" x 19" x 16"

Special Order. Non-Cancellable and Non-Returnable
