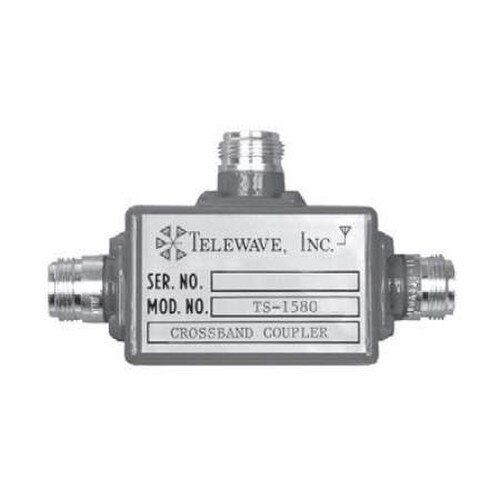

Telewave 132-174/806-902 Cross-Band Coupler (TS-1580)

Telewave TS-1580 Crossband Coupler allow transmitters, receivers, and antennas in the 150 and 800 MHz bands to share a common feedline. A single coupler can be used to couple two radios to a multiband antenna, or a multiband radio with two antennas. Two couplers are used with two radios and two antennas. The ability to share a feedline between systems on different bands simplifies installation while reducing cost and tower loading. No tuning is required for full band coverage, and each unit is completely weather sealed for zero maintenance and long service.

Special Order. Non-Cancellable and Non-Returnable

Key Features

• Frequency Range 132-174 & 806-902
• RF Connectors 7/16 DIN Female / N-Female
• Maximum power 150 W and Minimum isolation 27 dB
• Dimensions 3.75" L x 2.14" W x 1.14" H
