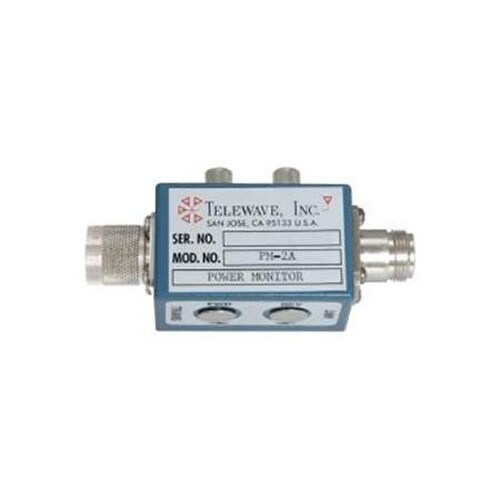

Telewave Power Monitor N-Male to N-Female 118-230MHz (PM-2A-150-NM-NF)

Telewave RF Power Monitor is a dual-direction device which produces a DC voltage proportional to an RF signal between 118-230 MHz. This device exhibits extremely low insertion loss and is designed to be placed in the transmission line permanently, allowing continuous monitoring of forwarding and reflected power. The power monitor is used for one transmitter within a specified bandwidth. Voltage trimmers allow each unit to be quickly recalibrated for a new frequency within the same band. Two RCA connectors provide access to the proportional DC output, which is coupled to the meter panel with a simple shielded audio-type cable.
Key Features

• Produces a DC voltage proportional to an RF signal between 118-230 MHz
• Features an extremely low insertion loss
• Has N-Male to N-Female RF connection
• Dual direction
• Input Power Range: 5-1000 W
