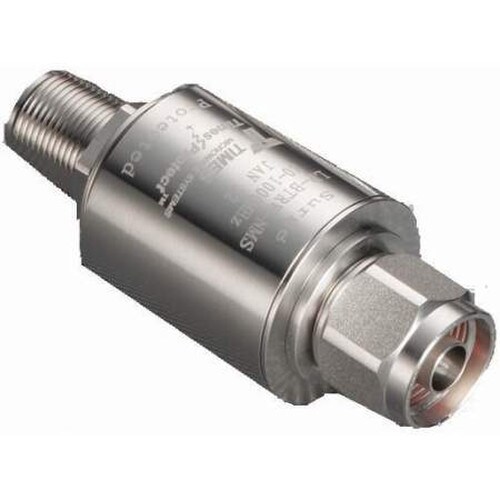

Times Microwave Systems Bulkhead Arrestor NF-NM (LP-BTRW-NMS)

Bulkhead mounting coaxial protector attaches through a maximum 1/4" thickness panel. Flange mount to any flat surface with optional LP-BFDN-CW bulkhead to flange adaptor. DC blocked to minimize throughput energy. Turn-on voltage 600V 20%. Turn-on time 2.5nS for 2kV/nS voltage rise time. Will withstand multiple strikes at 10kA (8x20S wave-form). Insertion loss is <0.1 dB, VSWR <1.1:1, Return loss <-26dB. Brass body with white bronze plating, weatherized to IP67 standards.

Key Features:

• Frequency Range:20-1000 MHz
• Nominal Insertion Loss:0.1 dB
• Maximum Throughput Energy:200 µJ
• Protected Side Connector:N Male
• Surge Side Connector:N Female
