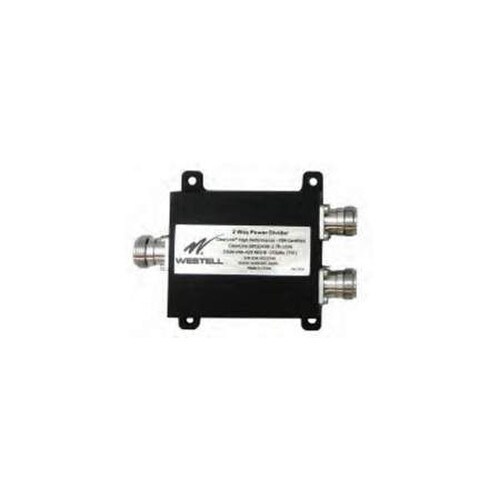

Westell 698-2700 MHz ClearLink 2-Way Power Divider (SPD269827KLP16143)

PIM can occur when two or more signals are present in a passive, non-linear device. PIM can be generated in any passive component within a wireless communication system. Carriers are placing more emphasis on maintaining a low PIM rating on the products used in their system. These power dividers are manufactured to meet a specific PIM rating.
Key Features

• Frequency Range 698-2700 MHz
• Nominal Coupling 20 dB
• Maximum Power 100 W
• PIM Minimum -161 dBc
• RF Connectors 4.3-10 Female
• Maximum VSWR 1.20:1
• Dimensions 4.2" L x 3.1" W x 0.9" H
