BZBGEAR 2-Channel 40W 4/8 Ohms Stereo/Mono Audio Amplifier(BG-AMP2X20)

Overview

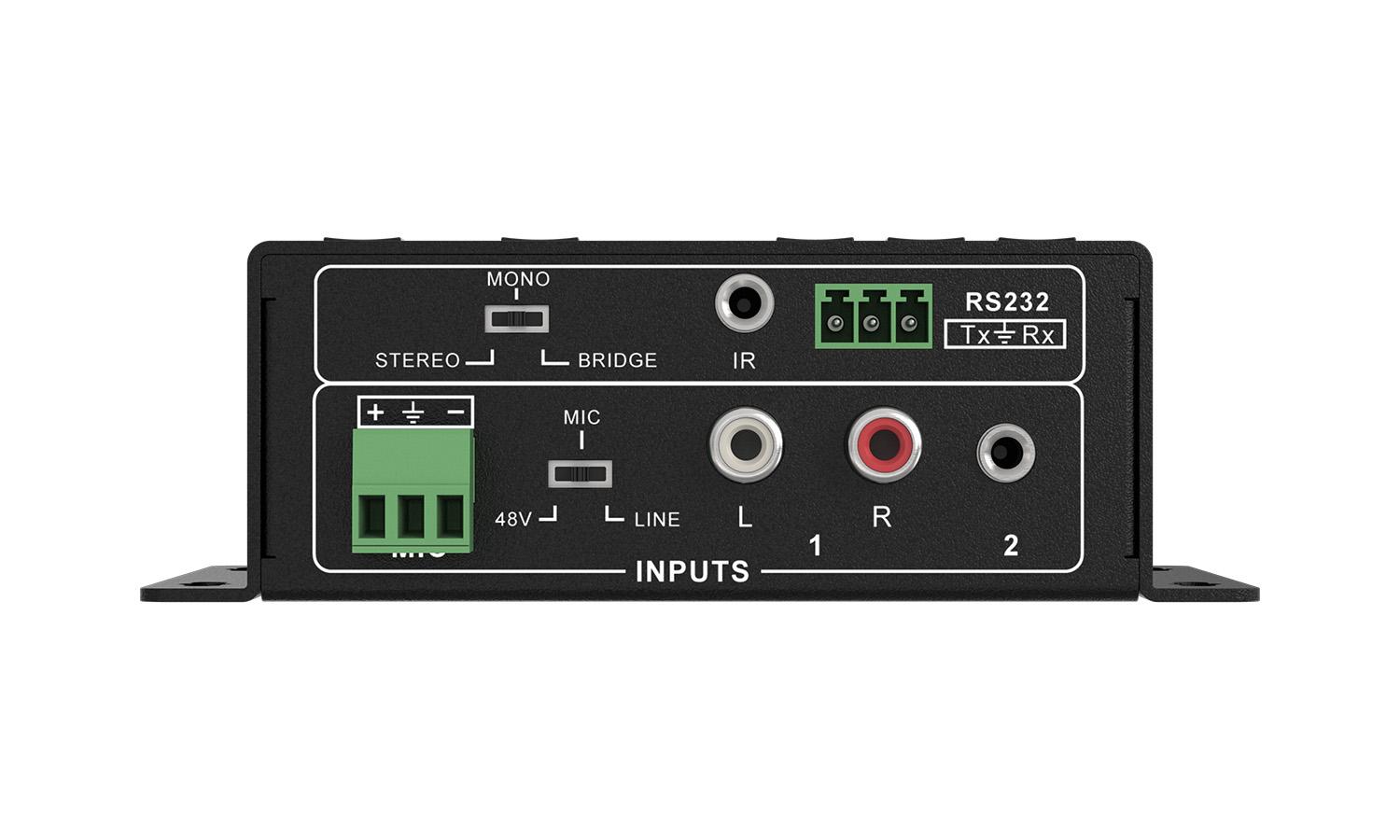

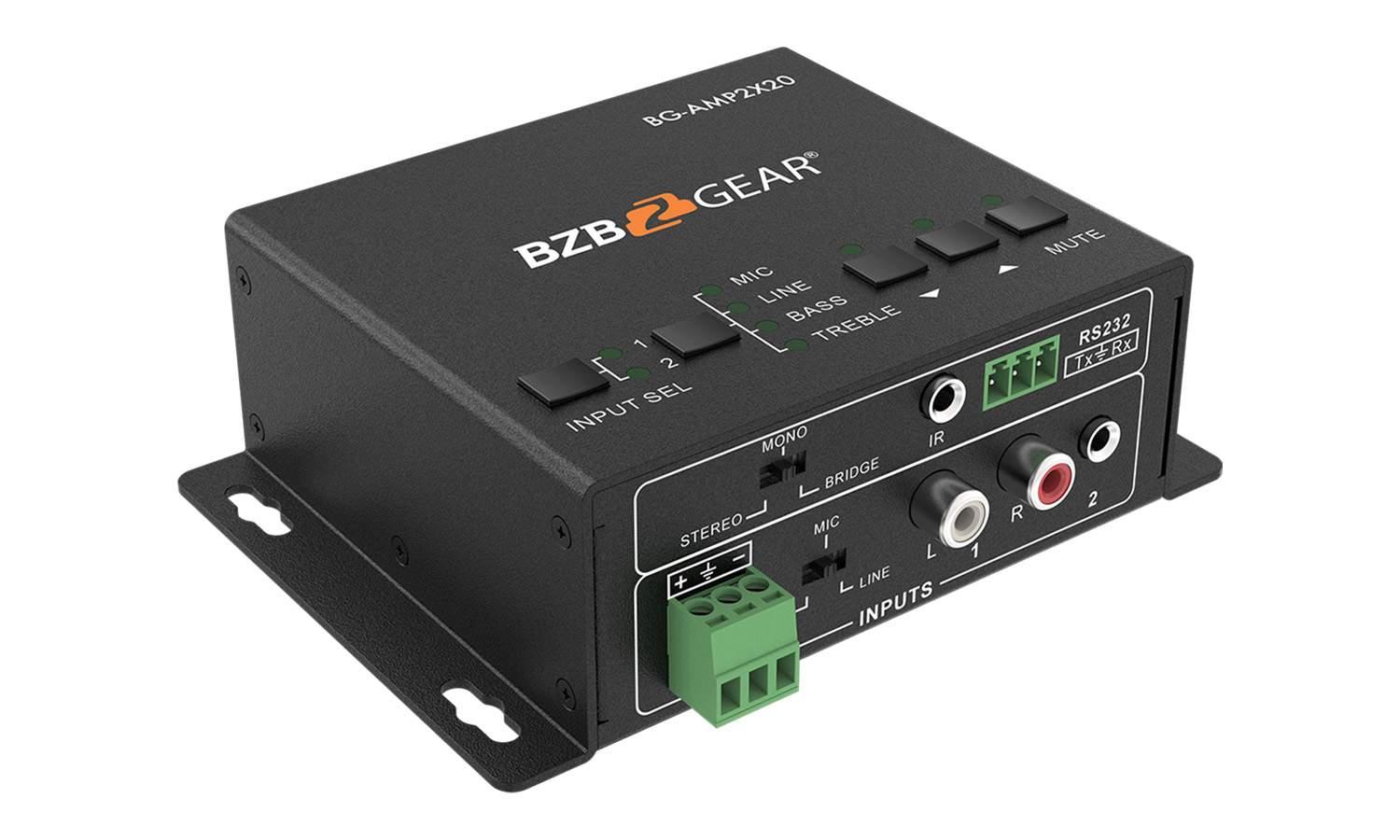

The BG-AMP2X20 is a versatile and compact bridgeable digital stereo amplifier (Class-D). Perfect for installations with limited space, it can be operated in three different configurations. In stereo configuration the amplifier outputs 2x20 watts at 4 Ohms. The selector switch also allows for dual-mono operation for distributed audio applications. In bridge-mono configuration it can double the output to 40 watts at 8 Ohms. Inputs include 1 x stereo RCA, 1 x 3.5mm, and a microphone input with switchable 48v phantom power. Bass, Treble, volume level, and input selection are all controllable via the integrated buttons on the bottom panel, IR remote control, or RS-232. The features and performance combined with its compact form factor make this amplifier the perfect solution for situations that don’t allow a full-sized amplifier.


Features

Microphone Input
3-level Mic input with mixer function

Amplify Your Sound

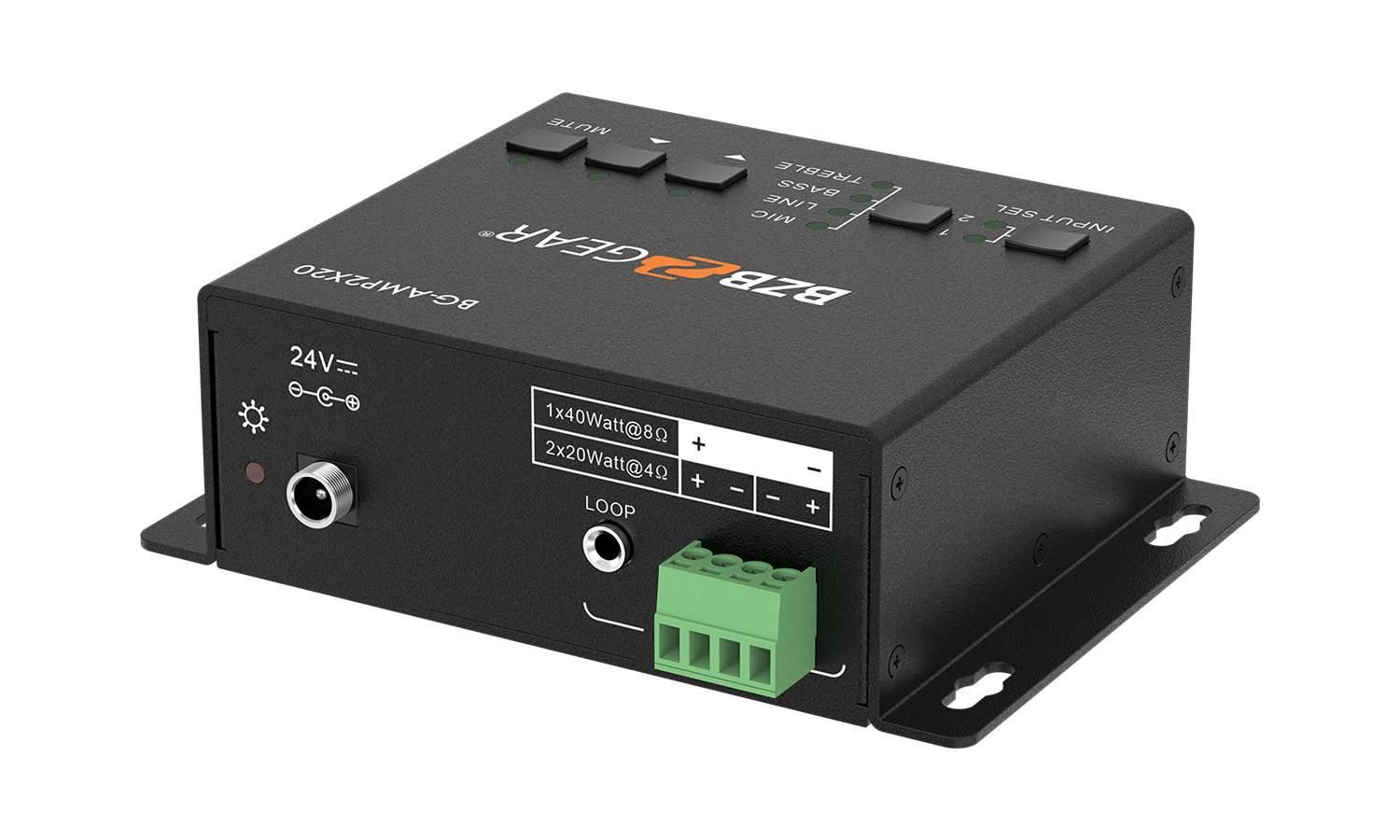

Outputs Stereo 20Watt@4 Ohms or bridged mono 40Watt@8 Ohms

Compact
Small form factor ideal where full-sized amplifiers will not fit

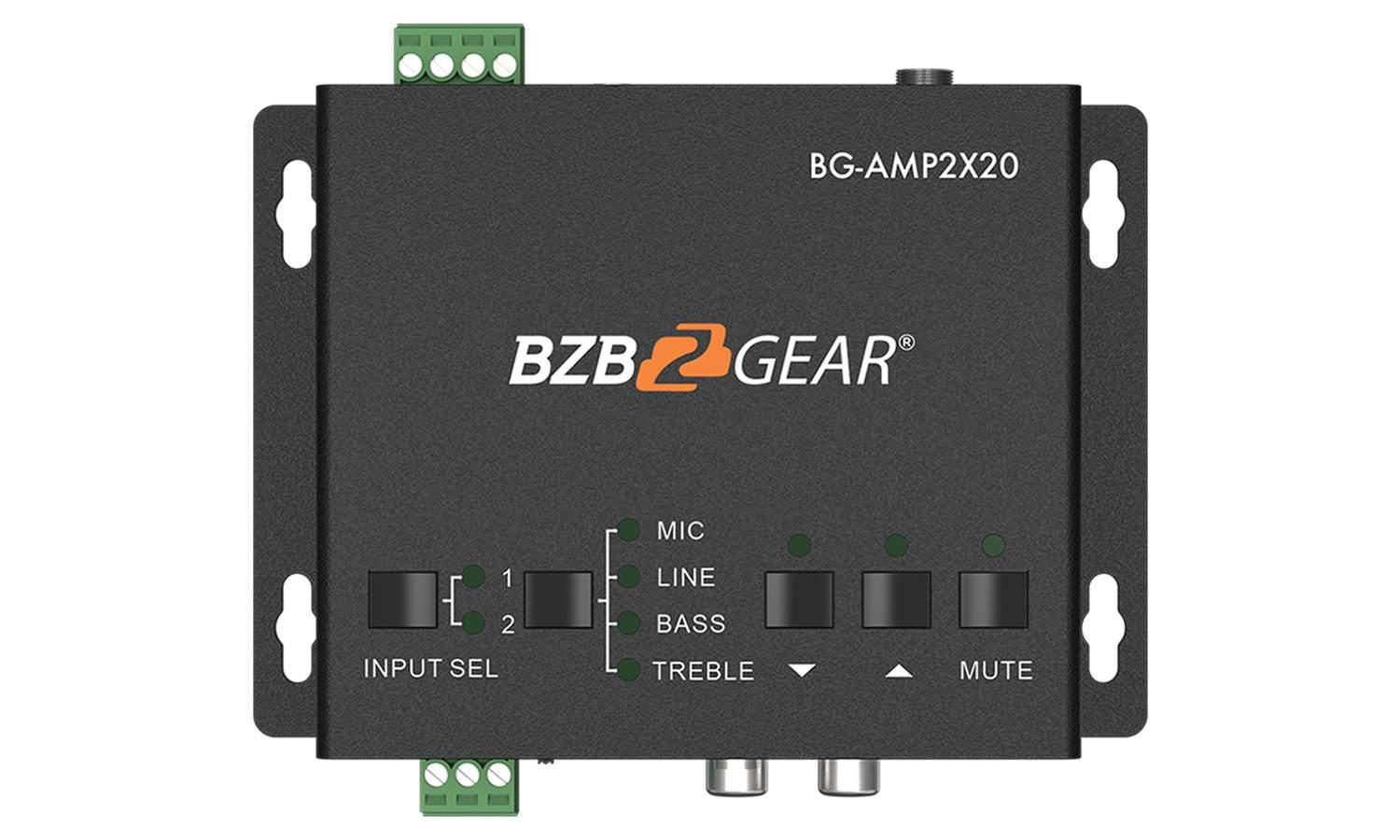

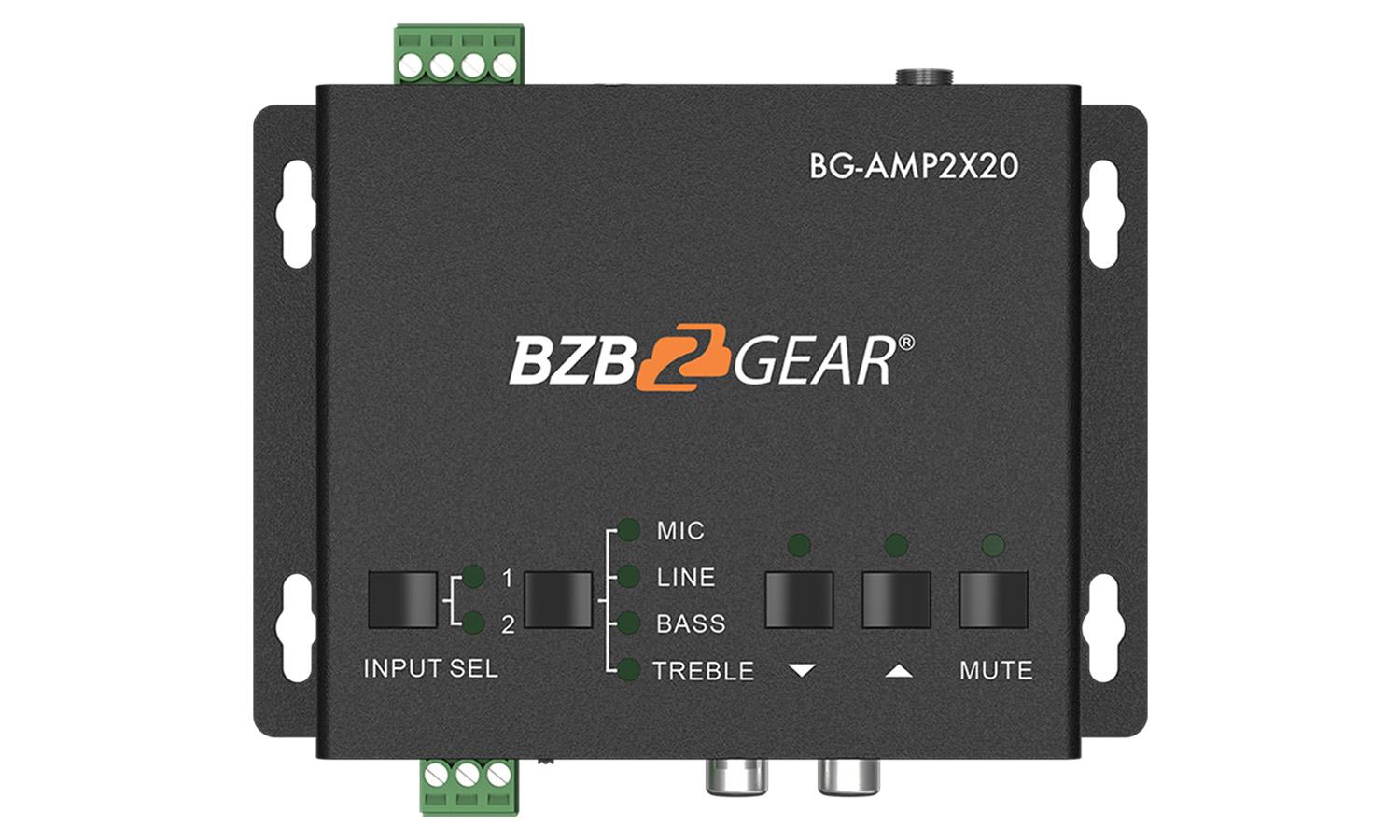

Multiple Control Options
Take control using RS232, IR, or push buttons

Durable
Metal enclosure designed to last for years

Bass, Treble, & Volume
Control bass, treble and volume levels conveniently using integrated push buttons


2 switchable analog audio inputs

Loop output to cascade to another PA2B

Locking power adaptor

Specifications
