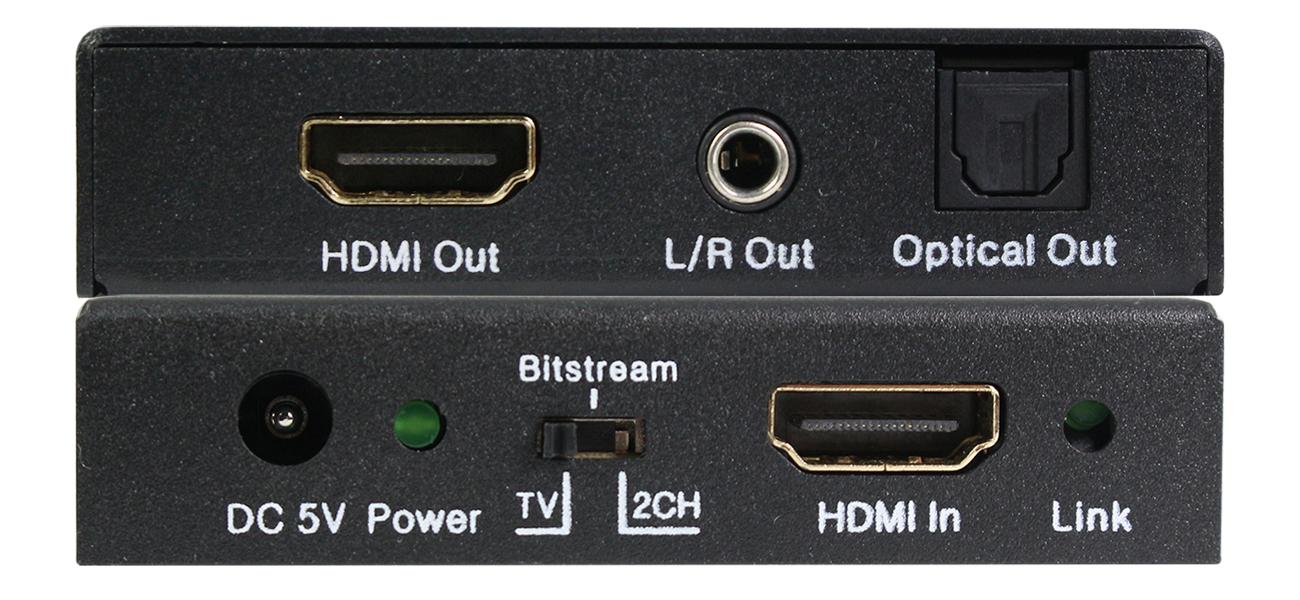

A-Neuvideo UHD 4K@60Hz HDMI 2.0 HDR 2CH/7.1CH Audio Extractor

A-Neuvideo UHD 4K@60Hz HDMI 2.0 HDR 2CH/7.1CH Audio Extractor

This HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192KHz. HDCP 2.2 and CEC bypass are supported. This product has a 3 year warranty.

FEATURES

• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
• Video resolutions up to 4K2K@50/60Hz (YUV444)
• Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
• Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
• Supports HDMI High Bit Rate (HBR) audio pass through
• Audio sample rates up to 192KHz
• 10bits HDR (High Dynamic Range) pass through
• Supports CEC bypass

SPECIFICATION

• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.2 and HDCP 1.4
• Video Bandwidth: 18Gbps
• Video Resolutions: up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• Color Depth: 10bit, 12bit
• HDMI Audio Formats: (Pass-through) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
• Optical Audio Formats: LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
• L/R Audio Formats: Analog Stereo 2CH
• ESD Protection: Human body model
  • ±8kV (air-gap discharge)
  • ±4kV (contact discharge)

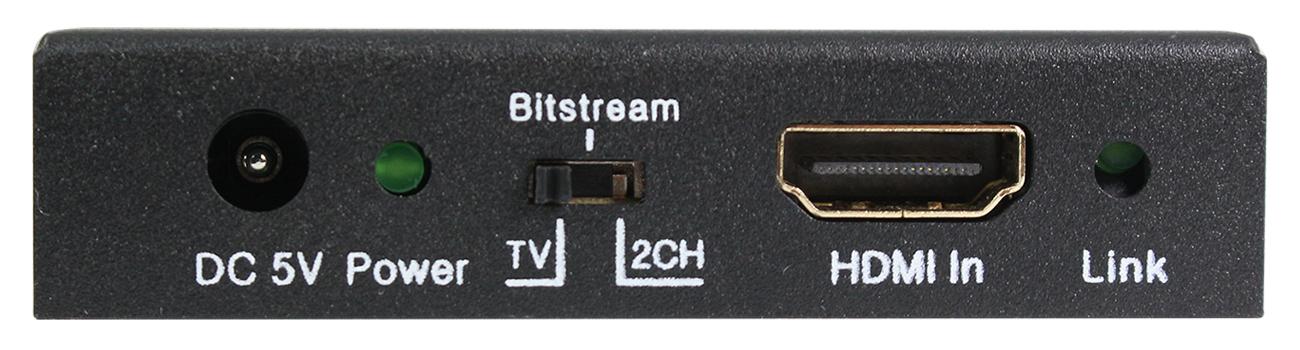

• Inputs: HDMI Type A [19-pin female]

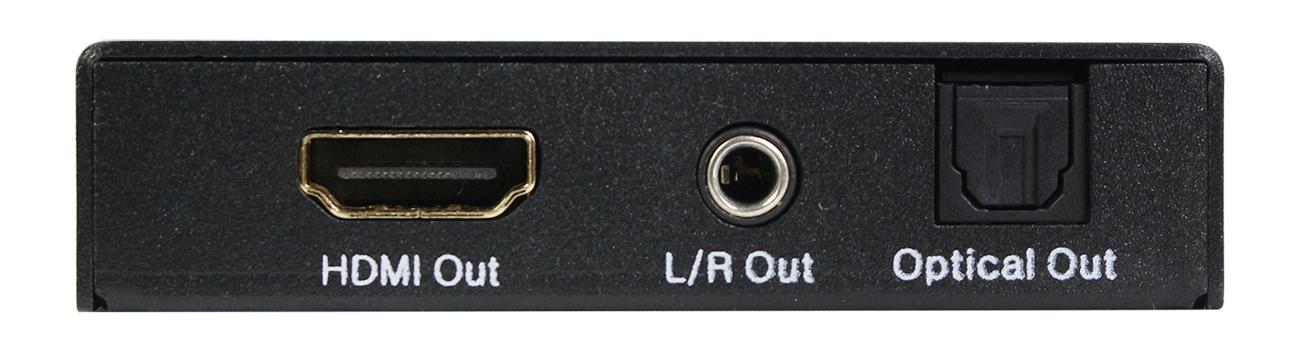

• Outputs:
  • HDMI Type A [19-pin female]
  • L/R Audio Out [3.5mm Stereo Mini-jack]
  • Optical Out [S/PDIF]
• Housing: Metal Enclosure
• Color: Black
• Dimensions (WxDxH): 2.9 x 2.4 x .7 in (73.5x60.7x17mm)
• Weight: 4.6 oz / 130g
• Power Supply:
  • Input: AC100 - 240V 50/60Hz
  • Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
• Power Consumption: 1W (Max)
• Operation Temperature: 32°F - 104°F / 0 - 40°C
• Storage temperature: -4°F - 140°F / -20°C - 60°C
• Relative Humidity: 20% - 90% RH (no condensation)

INCLUDED

• ANI-7.1CH4K HDMI 18Gbps Audio Extractor
• 5V/1A Power Adaptor
• Users Guide
