Altelix 10x8x6 Fiberglass Weatherproof NEMA 4X Pole Mount Enclosure

Extreme Protection Built to Last

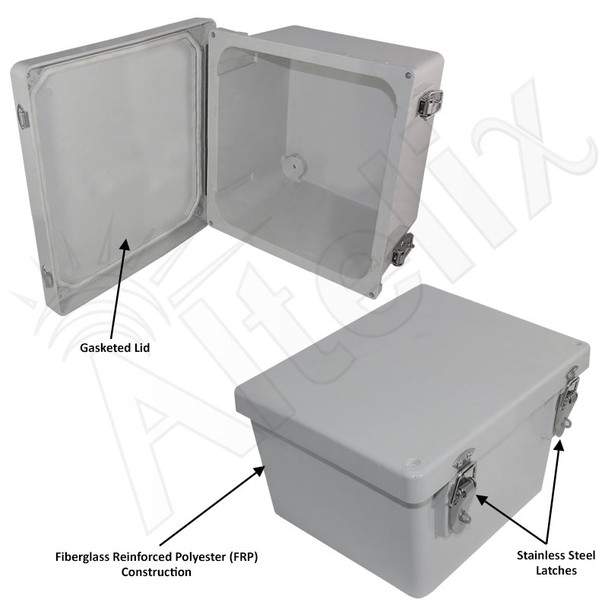

The Altelix NF100806-PKIT NEMA 4X Weatherproof Pole Mount Enclosure is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

This JIC style pole mount enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

Pole Mounting

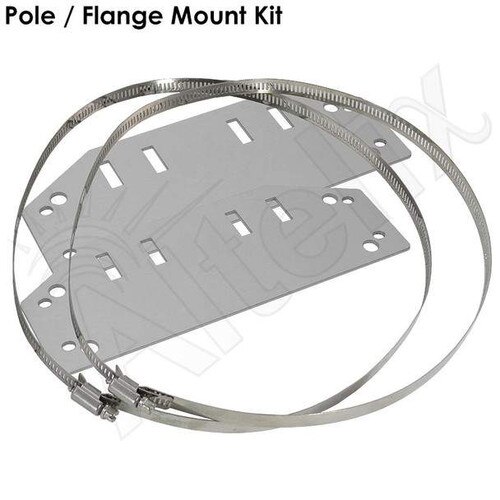

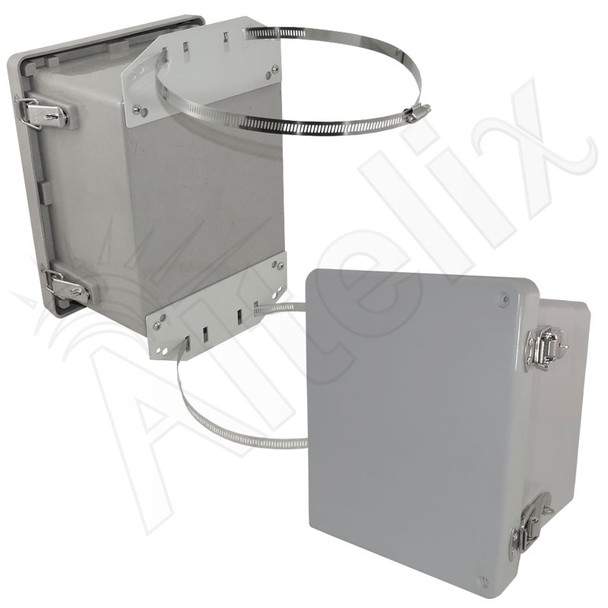

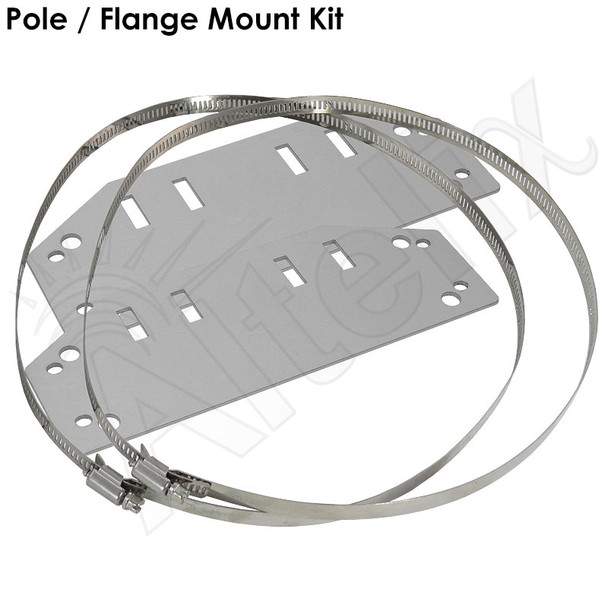

Included in this kit is our heavy duty NMKS-200-08 pole mount kit. The (2) included mounting brackets are constructed from 14 gauge (0.08 inch thick) steel and are coated for all weather applications. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated. To mount to the pole this kit includes (2) 304 stainless steel adjustable bands which allows the enclosure to be mounted to poles 2.0 to 7.6 inches (50.8 to 194.5mm) in diameter.

Wall Mounting
For wall mounting the brackets can be reversed to provide a continuous steel mounting flange along the edge of the enclosure.

Features

• Includes Heavy Duty Pole Mount Kit with Steel Mounting Brackets and 304 Stainless Steel Adjustable Bands
• Adjustable Bands for Mounting to Poles 2.0 to 7.6 inches (50.8 to 194.5mm) in Diameter
• Water Resistant JIC Enclosure Design with Gasketed Lid NEMA Type 4, 4X / IP66 Rated
• Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
• Corrosion Resistant, Dent Proof and UV Stable
• Non-Conductive and RF Transparent
• Raised Bosses and Brass Inserts for Plate Mounting
• Heavy Duty Compression Molded Fiberglass Reinforced Polyester (FRP) Construction
• High Quality Stainless Steel Quick Release Latches with Padlock Hasps
• Stainless Steel Contiuous Door Hinge
• Stainless Steel Mounting Feet Included
• Easily Modified with Conventional Tools

Applications

• Harsh Environments
• WiFi Enclosure
• RFID Reader Enclosure
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Solar Equipment Enclosure
• Outdoor Use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
• Building Automation Controls
• Industrial Controls Enclosure
