Altelix 12VDC Fiberglass Weatherproof Enclosure for Starlink® Satellite Router (Gen 2) & Mesh Node with 12VDC to 120VAC Power Inverter, Heater, Cooling Fan and 120 VAC Outlets

Industrial Grade Protection for the Starlink® Satellite Internet Router

12VDC Power Operation
The NF14VFHD1-STK1 includes a 12VDC to 120VAC power inverter installed inside the enclosure which allows it to be powered from 12VDC solar and battery power sources as well as ideal for use in mobile applications such as in RV's, commerical and military vehicles. The (2) 120VAC power outlets are pre-wired to the inverter for use with the Starlink® Satellite Internet Router (Gen 2). Included are (2) heavy duty pre-terminated power cords for connecting the inverter to a power source.

Multi Function Mounting Cradle

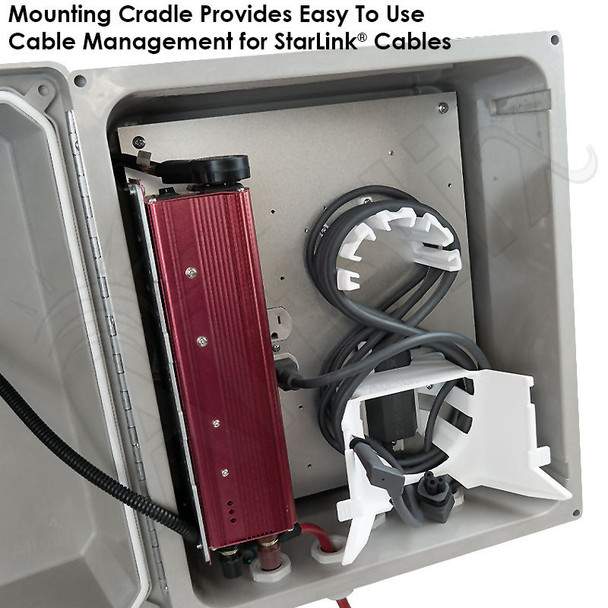

The Altelix Starlink® enclosure features an innovated multi function mounting cradle which is designed to easily mount both the Starlink® Router (Gen 2) and Starlink ® Ethernet adapter into one cradle. This mounting cradle also provides easy to use cable management for all the required cables.

Easy Setup

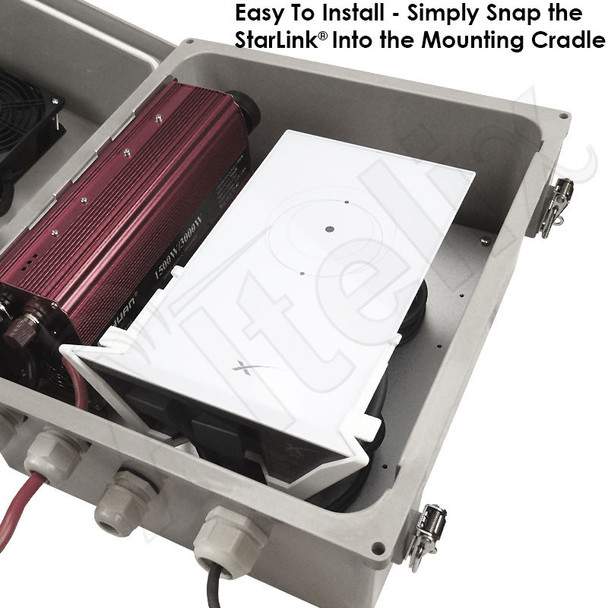

This enclosure provides easy installation. Once the Starlink® Router (Gen 2) and Ethernet adapter are securely mounted inside the enclosure, connect the router's power supply to the internal 120VAC power outlet. Cable glands on the enclosure allow cables to be connected to the device. Connect the included DC power cables from power inverter to a 24VDC power source and you are up and running!

Fan Cooling with Thermostat Control
This enclosure features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment. The fan is wired internally, leaving both power outlets available for the Starlink® Router as well as for any additional installed equipment.

200W Thermostat Controlled Heater
This enclosure is equipped for harsh weather and cold environments. It features a thermostat controlled 200W heating system. The heater turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is mounted below the equipment plate and wired internally so leaves the interior space and power outlets available for the Starlink® Satellite Internet Router.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent so that it will not interfere with the WiFi signal range or coverage pattern of the Starlink® WiFi Router. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

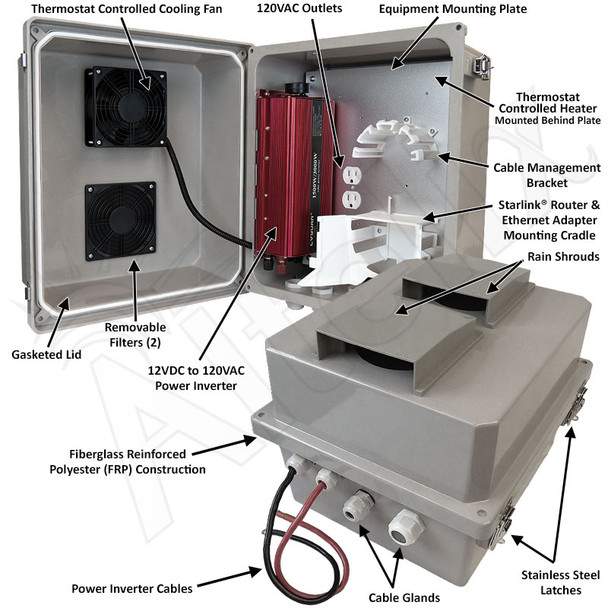

Features

• Internal 12VDC to 120VAC power inverter
• (2) Pre-Wired 120VAC power outlets
• Multi function cradle designed to mount both the Starlink® Router (Gen 2) and Starlink® Ethernet adapter
• Integral cable management for Starlink® cables
• Thermostat controlled 200W heating system
• Thermostat controlled cooling fan with (2) 4” vents with rain shields and screens
• Rugged RF transparent fiberglass reinforced polyester FRP construction
• Weatherproof, UV stable and highly corrosion resistant
• Stainless steel hinge and quick release latches with padlock hasps
• NEMA Type 3R, 3RX / IP24 rated
• Includes power inverter cables, spare fuses, cable glands and stainless steel enclosure mounting feet
• Optional pole mounting kit available

Applications

• Starlink® Satellite Router (Gen 2) - Model #UTR-211
• Starlink® WiFi Mesh Node
• Vehicle mounted installations
• Recreational vehicles (RV), commerical and military vehicles
• 12VDC Solar powered operation in remote locations
• 12VDC Battery powered operation
• Protection of Starlink® Satellite Internet Router from theft or damage
• Concealment of equipment
• Rapid deployment
• Emergency networks
• Harsh environments
