  • Altelix NS121006-DIN - 12x10x6 Industrial DIN Rail NEMA 4X Steel Weatherproof Enclosure

Altelix NS121006-DIN - 12x10x6 Industrial DIN Rail NEMA 4X Steel Weatherproof Enclosure

  • Brand: Altelix
  • P\N: NS121006-DIN
(0)No Reviews yet

Availability: In Stock


Your Price: $139.99

Do you have questions?

Please contact our experts for assistance.

Description

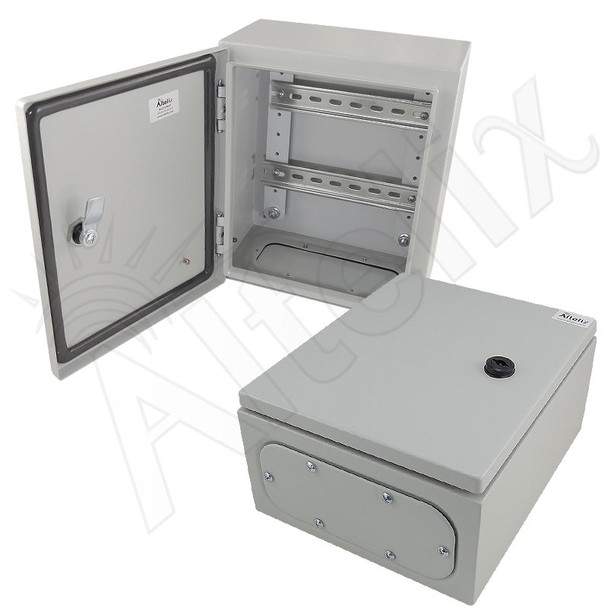

The Altelix NS121006-DIN Steel NEMA 4X Weatherproof Industrial DIN Rail Enclosure is ideal for protecting DIN rail mounted equipment from harsh environments and tampering. The outside dimensions are 11.8 x 9.9 x 5.9 inches (300 x 250 x 150 mm) and the usable interior dimensions are 8.3 x 6.3 x 4.8 inches (210 x 159 x 121 mm).

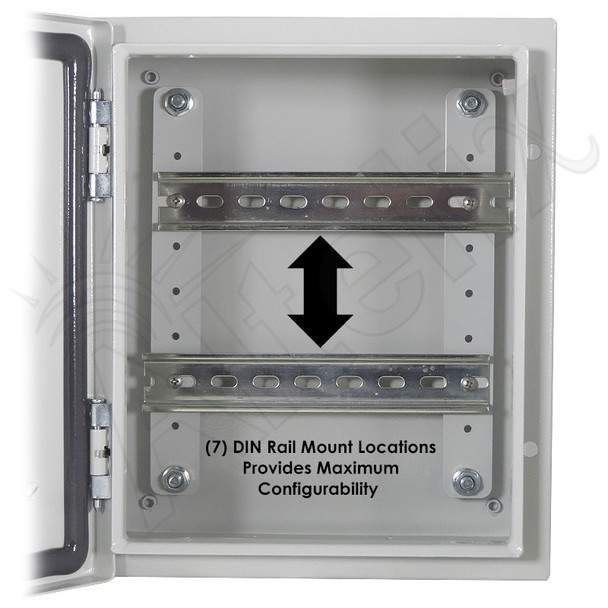

DIN Mounting Rails

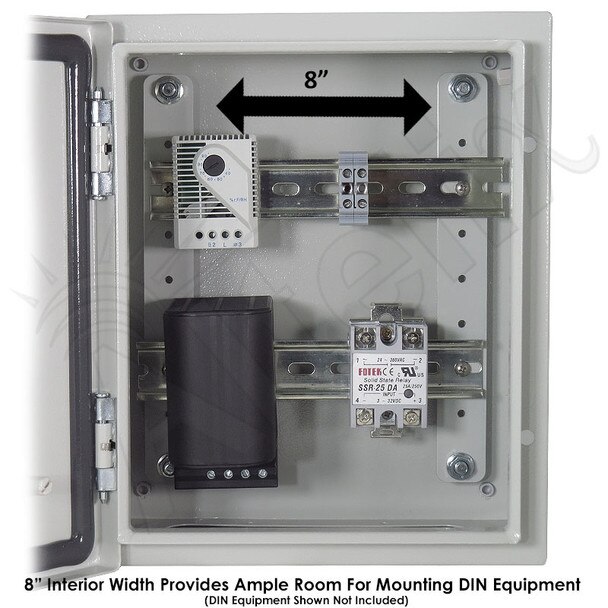

Included with this enclosure are (2) DIN Mounting Rails. These rails mount to the interior of enclosure and are designed for use with (2) 35mm top hat DIN rails included with the enclosure. This versatile DIN rail mounting system runs the full length of the enclosure from top to bottom. This allows the Top Hat DIN rails to be mounted easily in any of 7 locations providing the flexibility needed when configuring the enclosure for specific user requirements. Hardware for mounting the Top Hat DIN rails is included.

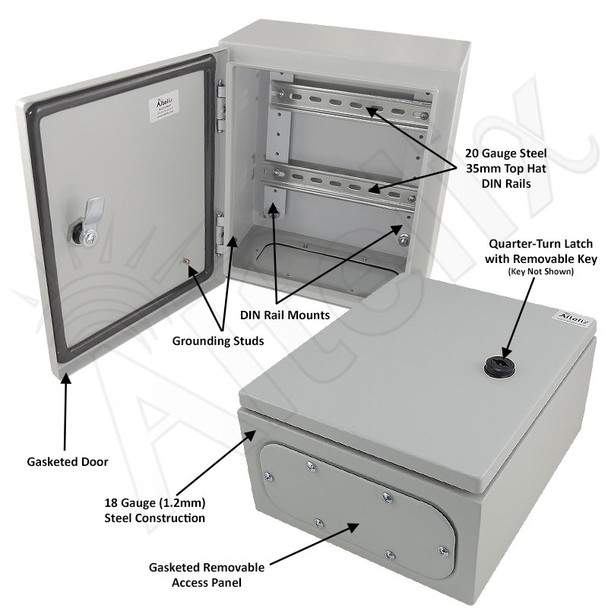

Construction and Features
This rugged IP66 rated enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and a quarter-turn latch to secure the enclosure. Internal grounding studs are provided on both the door enclosure. A removable access panel is provided and is fully gasketed to ensure proper seal.

Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.

Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

Mounting
Mounting holes are provided in the rear of the enclosure for mounting to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-250-08) and stainless steel (model NMKX-250-08).

Optional Lockable Latches
For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.

Features

  • Heavy Duty Continuous Seam Welded 18 Gauge Steel Construction
  • Includes (2) 35mm Top Hat DIN Rails and DIN Rail Mounting System with 7 Positions
  • Quarter-Turn Door Latch with Key
  • Bonus Aluminum Bottle Opener Key Now Included!
  • Epoxy polyester textured light gray powder coat finish
  • NEMA Type 4, 4X / IP66 Rated
  • Optional DIN Rail Mount Heater Available

Applications

  • DIN Rail Mount Equipment
  • Industrial Controls
  • Building Automation
  • Agricultural Controls
  • Environmental Monitoring Stations
  • SCADA Remote Terminal
  • DIN Mount Power Relays and Terminals
  • Security & Surveillance Equipment
  • Access Controls
  • Protection of Equipment from Theft or Damage
