Altelix NP131004VMA1C - 13x10x4 PC+ABS Vented RF Transparent Outdoor NEMA Enclosure with No-Drill PVC Equipment Mounting Plate, 120 VAC Outlets & Power Cord

The Altelix NP131004VMA1C enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The non-metallic equipment mounting plate features a pre-wired 120VAC power outlet for your equipment. Cable glands on the enclosure allows cables to be connected to internal devices.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be removed and the power receptacle can be hard-wired by a qualified installer.

Construction and Features
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. It meets or exceeds NEMA 3R, 3RX and IP24. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

No-Drill Non-Metallic Equipment Plate
This configuration consists of the PC+ABS enclosure with hinged lid and a 1/4" thick non-metallic PVC plate for mounting and securing equipment. Due to the "No-Drill" design of this PVC plate, mounting radios and other equipment can be done simply by using self-tapping screws.

RF Transparent Design
The NP131004VMA1C is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere the radio's operation. The size of this enclosure will fit a wide range of popular wireless points on the market.

Ventilation
The NP131004VMA1C features two 3" inch air vents covered by rain shields, with cleanable screens. It is ideal for protecting small devices from harsh environments and tampering, while allowing ventilation for installed equipment or batteries.

Complete with Cable Glands and Wire Management Straps
This enclosure includes 3 weatherproof cable glands. Simply punch out the seal, run your cable, and hand tighten for a water-tight seal. For convenience, the included accessory kit contains wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.

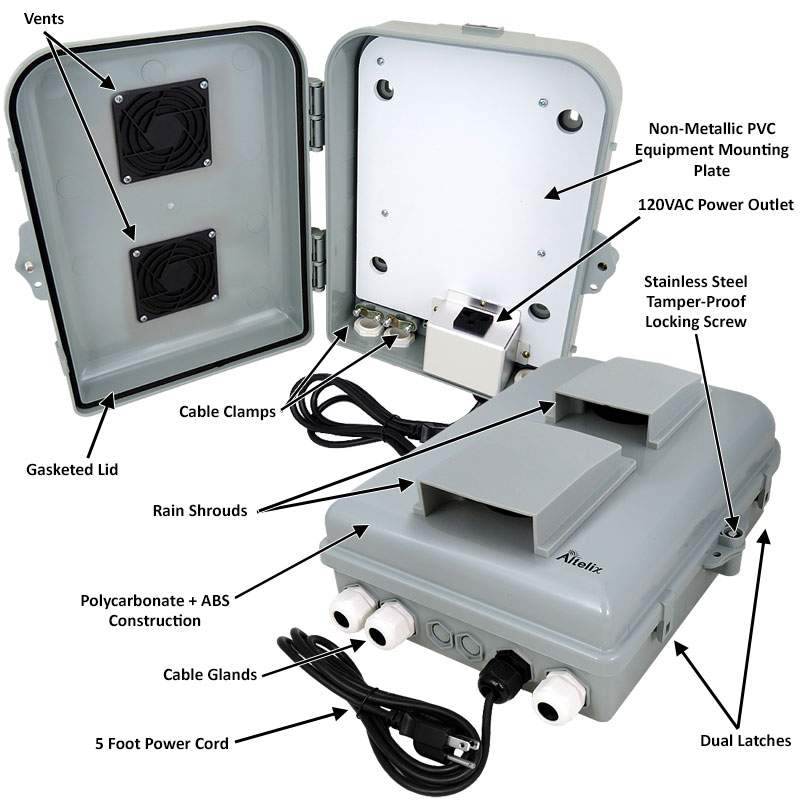

Features

• Two (2) 3" Vents with Rain Shields and Screens
• Features a No-Drill PVC Non-Metallic Equipment Mounting Plate – Mount your equipment securely without the need for drilling!
• Pre-Wired 120VAC Outlet
• Pre-wired 5 foot Power Cord
• Includes Cable Glands, Zip Ties, Cable Management Straps and Wall Mounting Hardware
• Meets NEMA 3R, 3RX and IP24
• Weatherproof and UV Stable
• Durable Polycarbonate + ABS
• RF Transparent for Wireless Devices
• Gasketed Lid
• Tamper-Proof Locking Screw with Key and Provision for Padlock
• External Dimensions: 13.7 x 10.8 x 4.1 Inches (348 x 274 x 104 mm)
• Internal Dimensions*: 7.0 x 7.8 x 3.1 Inches (178 x 197 x 79 mm)

Applications

• Multi Purpose Plastic Utility Box
• Data Wiring and Fiber Optic
• Cable TV Connections
• Broadband Demarc Enclosure
• Low Voltage Wiring Junction Box
• Outdoor Speaker Wiring
• LED Controllers
• IoT Devices
• WiFi Gear
• Security and Surveillance Systems
• Outdoor Weather Protection
• Protection Against Theft or Damage
• Warehouses and Public Areas
• Concealment of Equipment
