Altelix NP141107VFA1C - 14X11x7 Polycarbonate + ABS Vented RF Transparent Outdoor WiFi Enclosure with Cooling Fan, 120 VAC Outlets & Power Cord

Brand: Altelix
P\N: NP141107VFA1C

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

Altelix NP141107VFA1C 14x11x7 Vented RF-Transparent Outdoor WiFi Enclosure

Best For

Outdoor WiFi, IoT, networking, surveillance, automation, and other electronics installations needing a powered, ventilated RF-transparent enclosure.

Why Choose the NP141107VFA1C?

This PC+ABS enclosure provides two internal pre-wired 120VAC outlets, a 5-foot power cord, thermostat-controlled ventilation, multiple equipment-mounting options, and weather-resistant cable-entry accessories.

Key Benefits

14x11x7 class PC+ABS enclosure
Two internal pre-wired 120VAC outlets
5-foot power cord
Dual vents and thermostat-controlled fan
Fan on at 100°F / 38°C and off at 79°F / 26°C according to existing content
RF-transparent non-metallic construction
Raised bosses for optional equipment plate or up to four 35 mm top-hat DIN rail kits

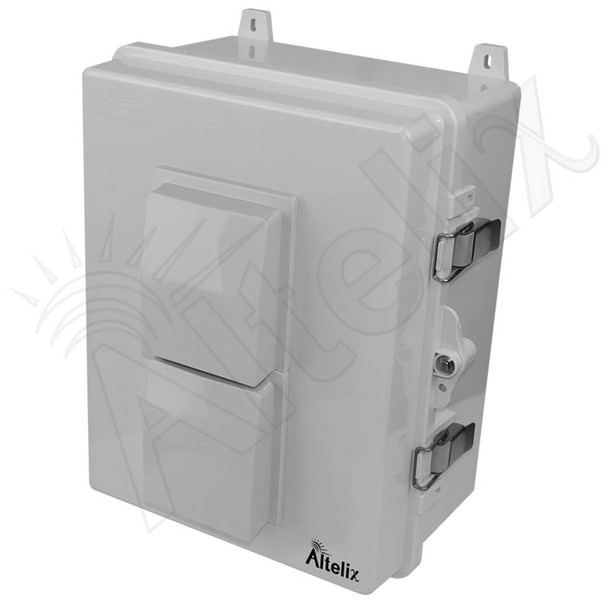

Gasketed lid, dual stainless latches, security screw/key and padlock provision
Cable grommets/glands and wire-management accessories

Who Should Buy the NP141107VFA1C?

Installers who have confirmed equipment dimensions, heat load, power, cable entry, environmental rating, mounting, RF needs, and electrical/code requirements.

Purchase Note

Non-Cancellable and Non-Returnable. Protected Contact Us content remains preserved separately.

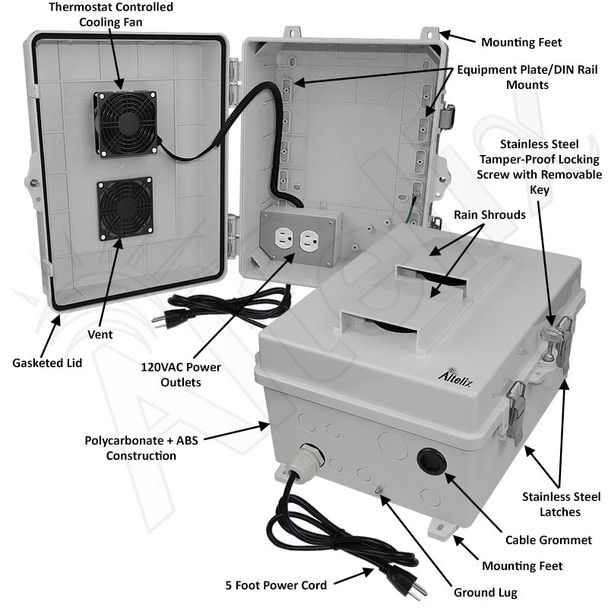

Features

Features

New design provides better versatility and security!

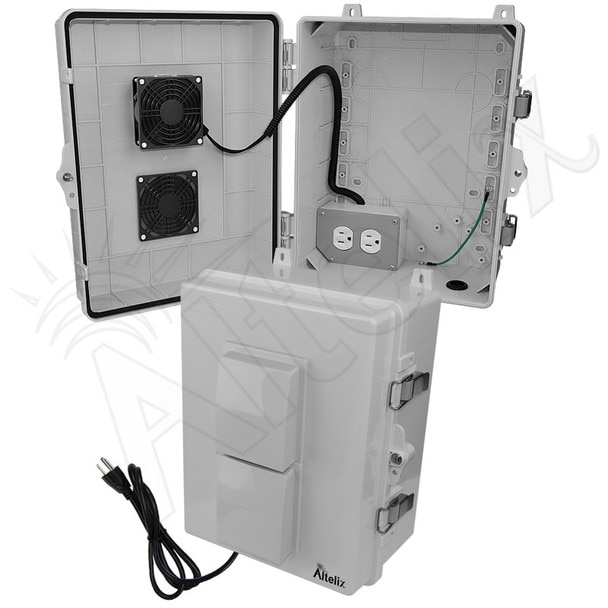

Thermostat controlled cooling fan to help expel heat

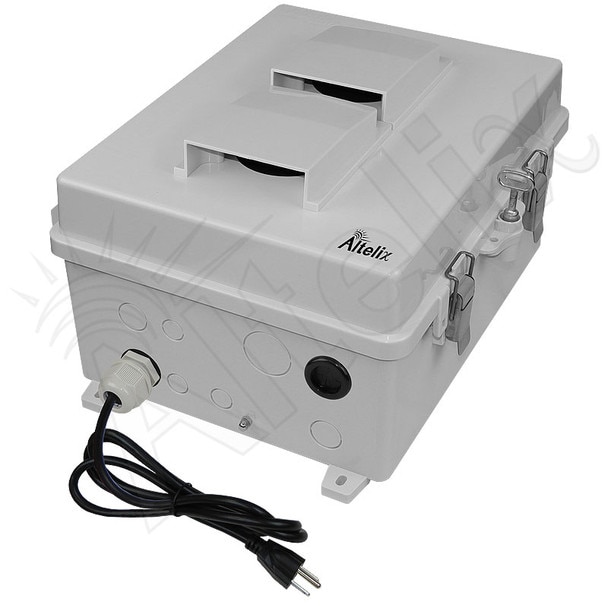

Dual vents with rain shields and screens
No electrical wiring required

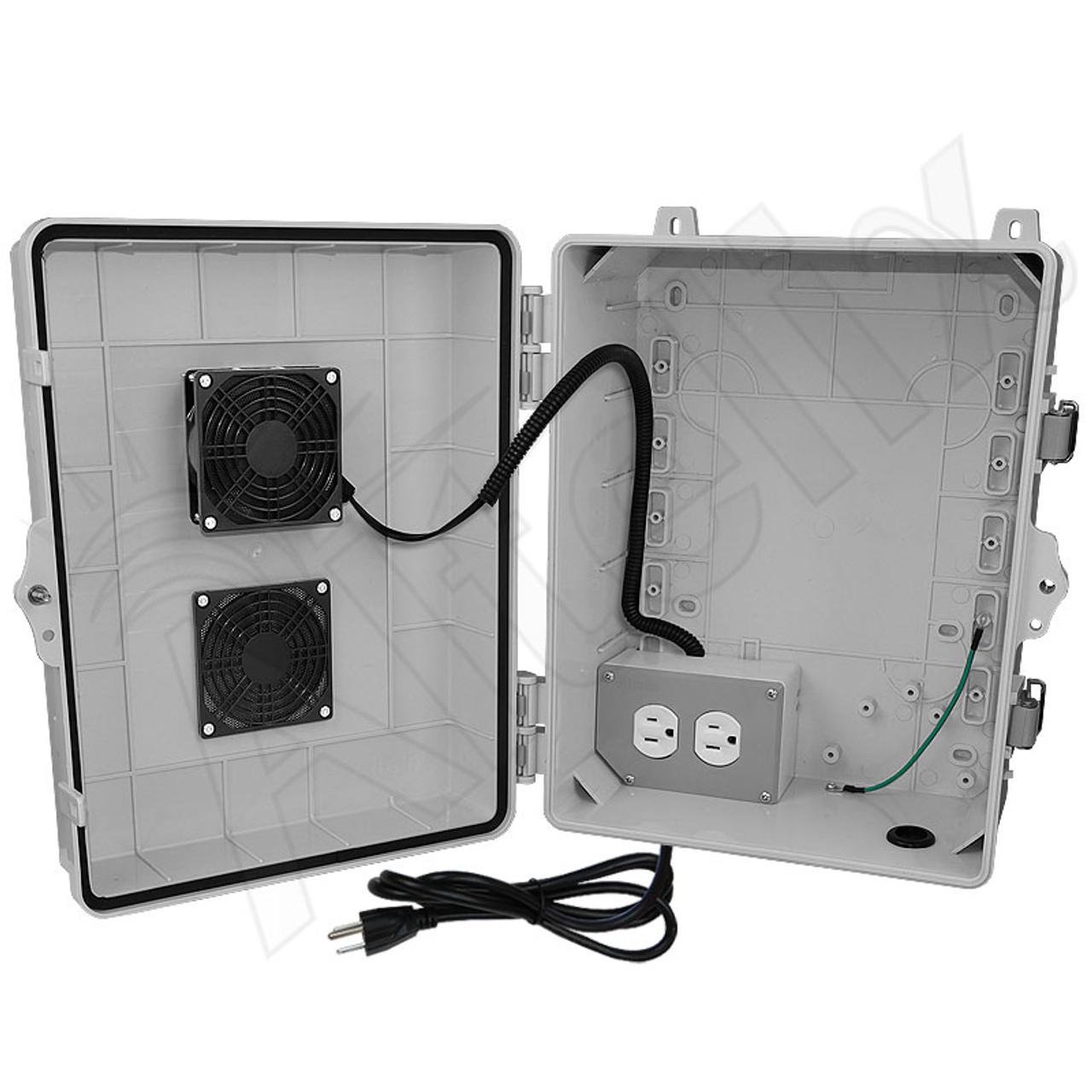

(2) Internal pre-wired 120VAC power outlets
Pre-wired 5 foot 3-prong power cord
Integral internal mounting bosses for use with equipment mounting plates or DIN rails
Durable Polycarbonate + ABS construction
Weatherproof and UV Stable
Meets NEMA 3R, 3RX and IP24
Gasketed lid with dual stainless steel latches
Tamper-Proof locking screw with key and provision for padlock

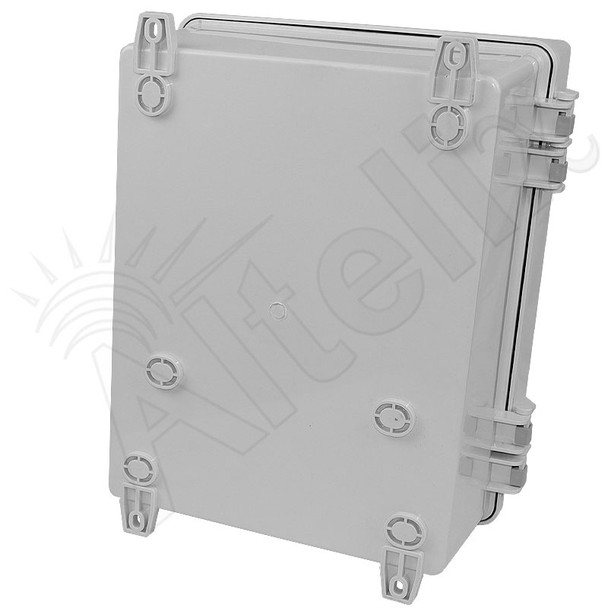

Can be mounted using external feet or internal mounting points
RF transparent for wireless devices

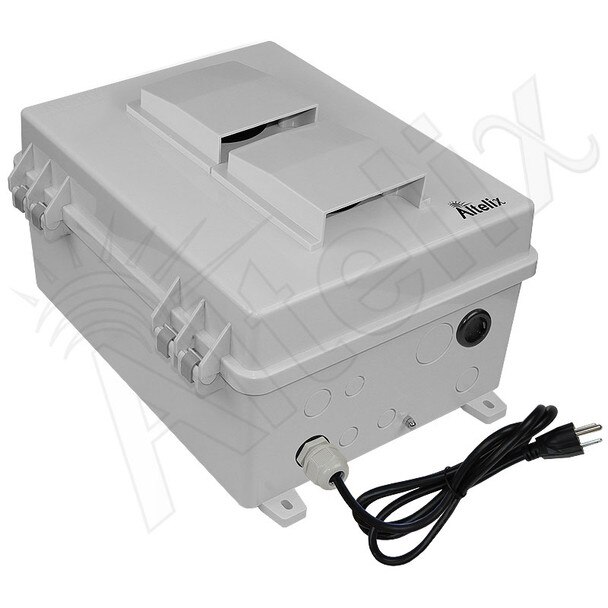

Multiple size knock-out holes on bottom of enclosure

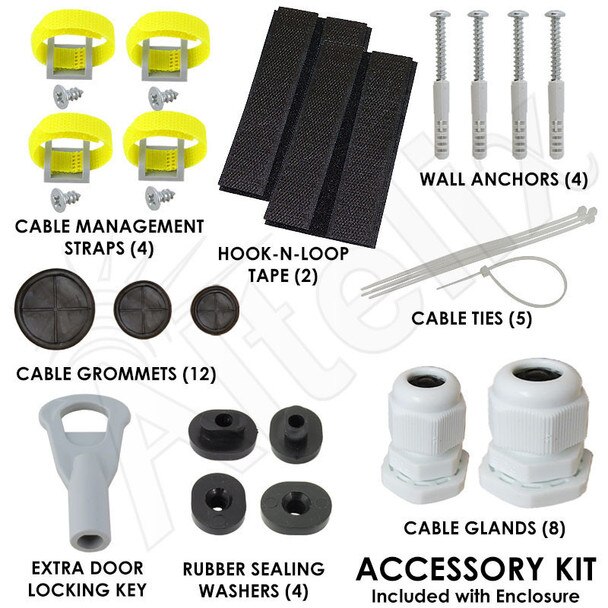

Includes (2) locking keys, cable grommets, cable glands, zip ties, hook-n-loop tape and wall mounting hardware
Optional pole mount kits available

Applications

Indoor / Outdoor WiFi access points and routers
Multi purpose utility box
Home automation
WiFi, LoRa and RFID gear
Security and surveillance systems
LED controllers
IoT devices
Network switches
Media converters
Cable TV and CCTV amplifiers
Broadband equipment
SCADA remote terminal
Outdoor weather protection
Protection against theft or damage
Warehouses and public areas
Concealment of equipment

Specifications

Material	PC+ABS Polycarbonate / ABS Blend
Color	Gray
Voltage	120VAC
Max Load	10A @ 120VAC
Cooling Fan Turn-On Temperature	100°F (38°C) ±6°F
Cooling Fan Turn-Off Temperature	79°F (26°C) ±9°F

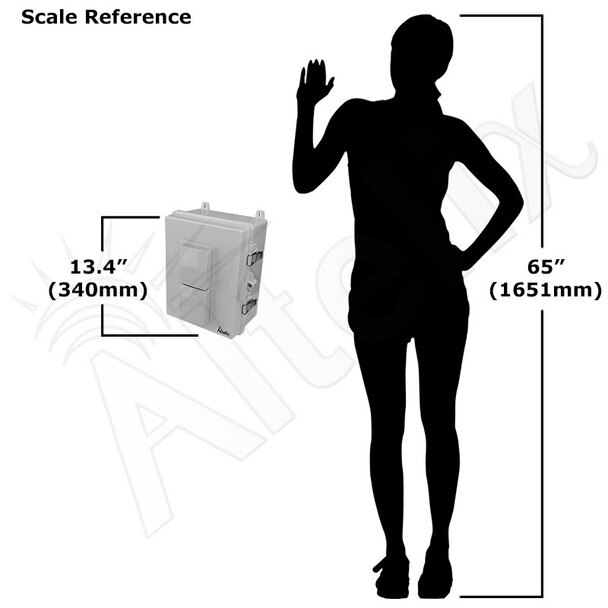

Outer Dimensions (Height x Width x Depth)	14.2 x 11.6 x 8.2 Inches (361 x 293 x 208 mm)
Inner Dimensions* (Height x Width x Depth)	9.5 x 8.7 x 4.7 inches (241 x 220 x 119 mm)
Weight	5.4 lbs. (2.4 kg)
Power Cord Length	5 Feet (1.5m)
Ratings	NEMA Type 3R, 3RX / IP24
Flame Rating	Meets UL94-V0
Industry Certifications	CE
Knockout Sizes (Diameter)	(3) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm)

*Interior dimensions represent maximum space available for equipment.
