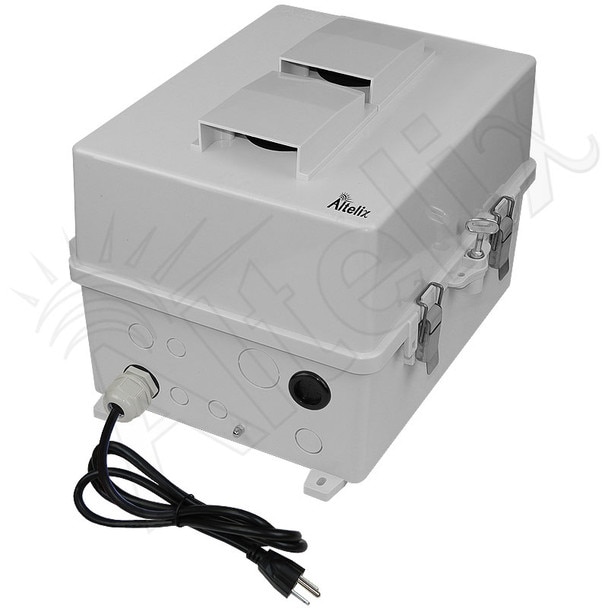

Altelix NP141109VPA1C - 14X11x9 Polycarbonate + ABS Vented Enclosure with Aluminum Equipment Mounting Plate, 120 VAC Outlets & Power Cord

Brand: Altelix
P\N: NP141109VPA1C

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

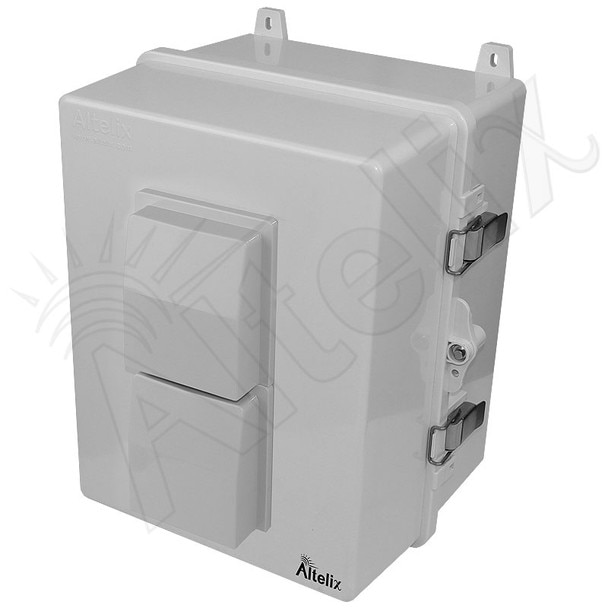

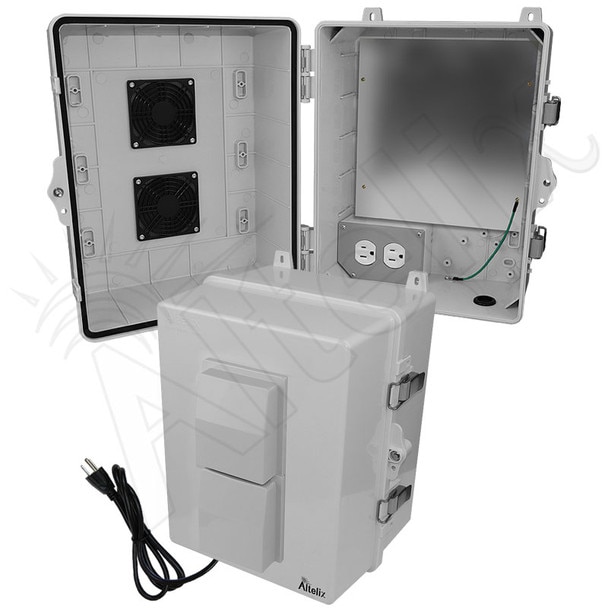

Altelix 14x11x9 Polycarbonate + ABS Vented Enclosure with Aluminum Equipment Mounting Plate, 120 VAC Outlets & Power Cord

The Altelix NP141109VPA1C NEMA enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Two internal pre-wired 120VAC power outlets are provided to power your equipment.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can removed and the power receptacle can be hard-wired by a qualified installer.

Increased Interior Space
This enclosure features an extra deep gasketed lid, over 4 inches deep. With the generous size of this enclosure and extended lid the NP141109VPA1C can accommodate a wide range of equipment.

Ventilation

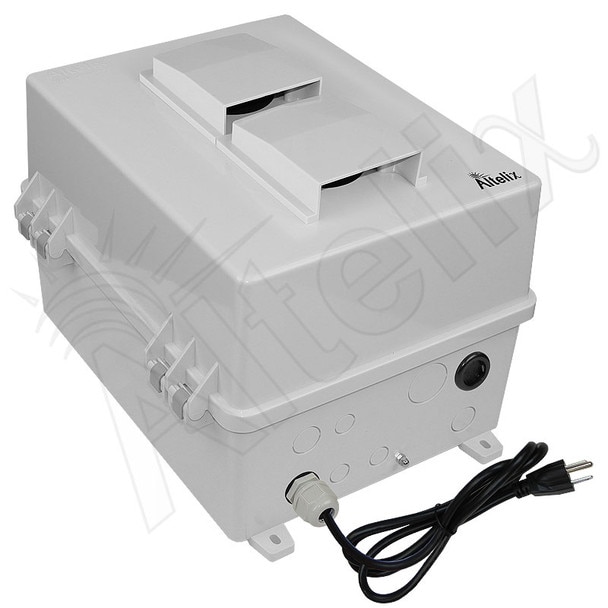

The NP141109VPA1C features two vents with rain shields to help expel heat from inside the enclosure. Screens on the inside of the vents can be removed and cleaned as required.

Aluminum Equipment Mounting Plate

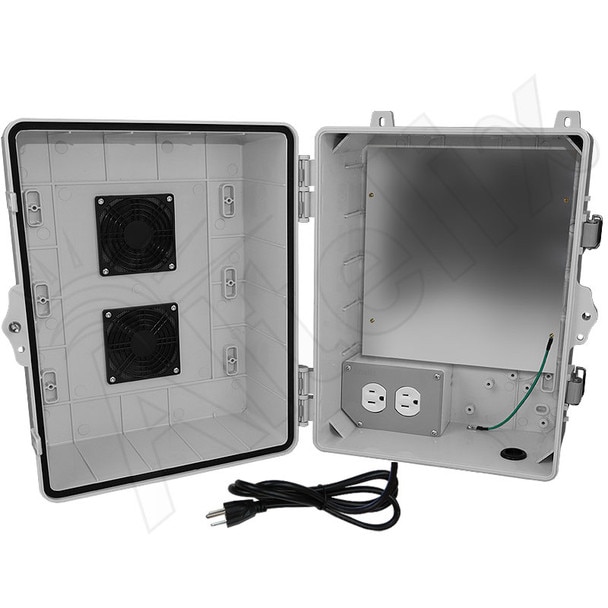

Included with this enclosure is a 1.5mm thick aluminum plate for mounting and securing equipment. The plate can be easily drilled and modified by the installer to suit unique site requirements.

Note: this enclosure is also available with a non-metallic PVC equipment mounting plate (see NP141109VMA1C) and without an equipment mounting plate (see NP141109VA1C).

Secure Your Equipment
These NP series enclosures feature dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

Complete with Cable Grommets and Wire Management Accessories

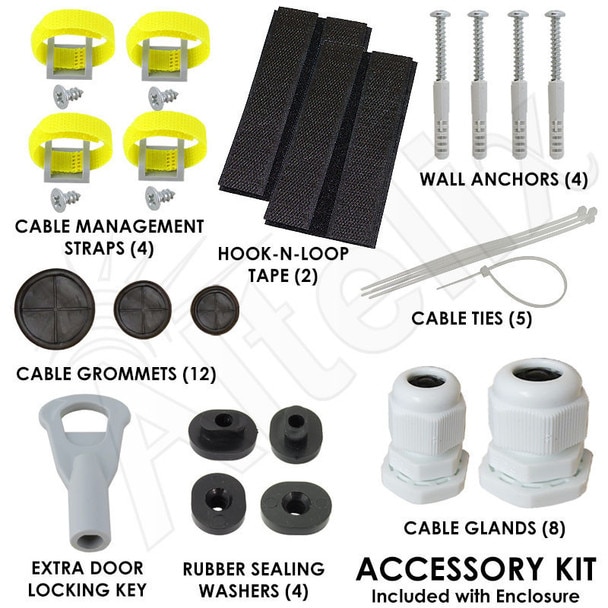

This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.

Multiple Mounting Options

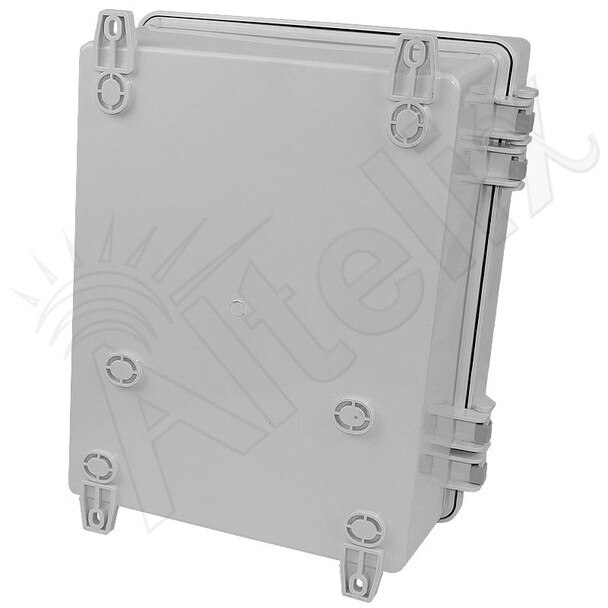

This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.

Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Interested in learning more about this product?Check out our blog!

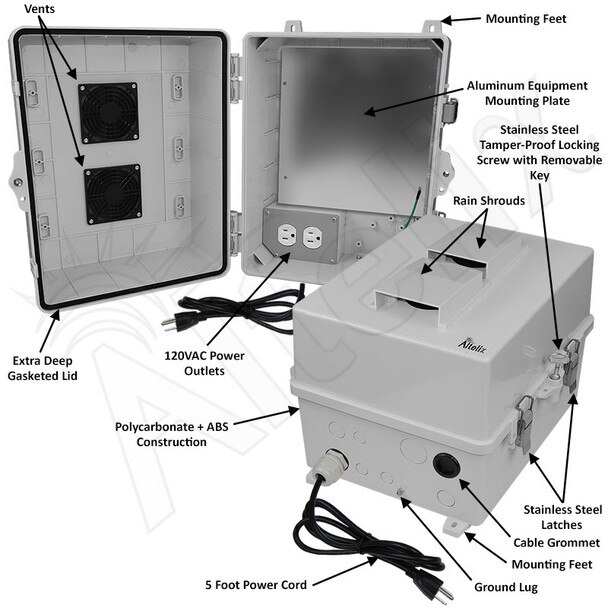

Features

Features

New design provides better versatility and security!
No electrical wiring required
(2) Internal pre-wired 120VAC power outlets
Pre-wired 5 foot 3-prong power cord
Dual vents with rain shields and screens to help expel heat
Features an aluminum equipment mounting plate
Durable Polycarbonate + ABS construction
Weatherproof and UV Stable
Meets NEMA 3R, 3RX and IP24
Extra deep gasketed lid with dual stainless steel latches
Tamper-Proof locking screw with key and provision for padlock
Can be mounted using external mounting feet or internal mounting feet
RF transparent for wireless devices
Multiple size knock-out holes on bottom of enclosure
Includes (2) locking keys, cable grommets, cable glands, zip ties, hook-n-loop tape and wall mounting hardware
Optional pole mount kits available

Applications

Indoor / Outdoor WiFi access points and routers
Multi purpose utility box
Home automation
WiFi, LoRa and RFID gear
Security and surveillance systems
LED controllers
IoT devices
Network switches
Media converters
Cable TV and CCTV amplifiers
Broadband equipment
SCADA remote terminal
Outdoor weather protection
Protection against theft or damage
Warehouses and public areas
Concealment of equipment

Specifications

Material	PC+ABS Polycarbonate / ABS Blend
Color	Gray
Voltage	120VAC
Max Load	10A @ 120VAC

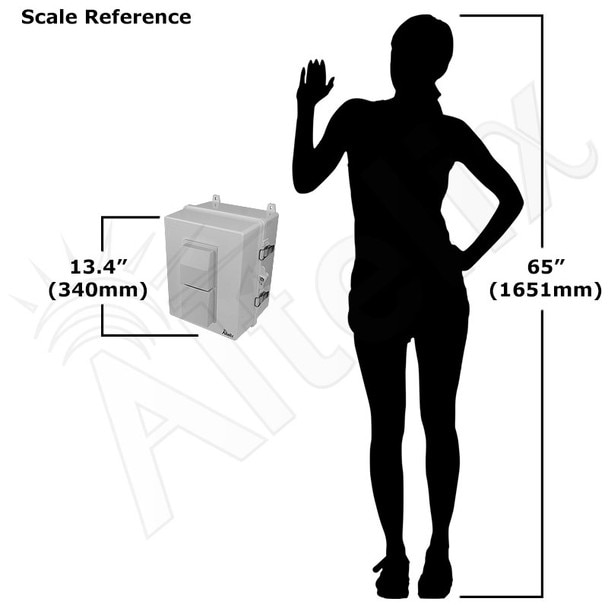

Outer Dimensions (Height x Width x Depth)	14.2 x 11.6 x 10.2 Inches (361 x 293 x 258 mm)
Inner Dimensions* (Height x Width x Depth)	9.5 x 8.7 x 7.5 inches (241 x 220 x 190 mm)
Mounting Plate Material	0.06 in. (1.5 mm) Aluminum
Mounting Plate Dimensions	8.9 x 8.5 in. (227 x 216 mm)
Weight	6.1 lbs. (2.8 kg)
Power Cord Length	5 Feet (1.5m)
Ratings	NEMA Type 3R, 3RX / IP24
Flame Rating	Meets UL94-V0
Industry Certifications	CE
Knockout Sizes (Diameter)	(3) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm)
