Altelix NP141109VMFA1C - 14X11x9 Polycarbonate + ABS Vented RF Transparent Outdoor WiFi Enclosure with No-Drill PVC Equipment Mounting Plate, Cooling Fan, 120 VAC Outlets & Power Cord

Brand: Altelix
P\N: NP141109VMFA1C

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

Altelix 14x11x9 Polycarbonate + ABS Vented RF Transparent Outdoor WiFi Enclosure with No-Drill PVC Equipment Mounting Plate, Cooling Fan, 120 VAC Outlets & Power Cord

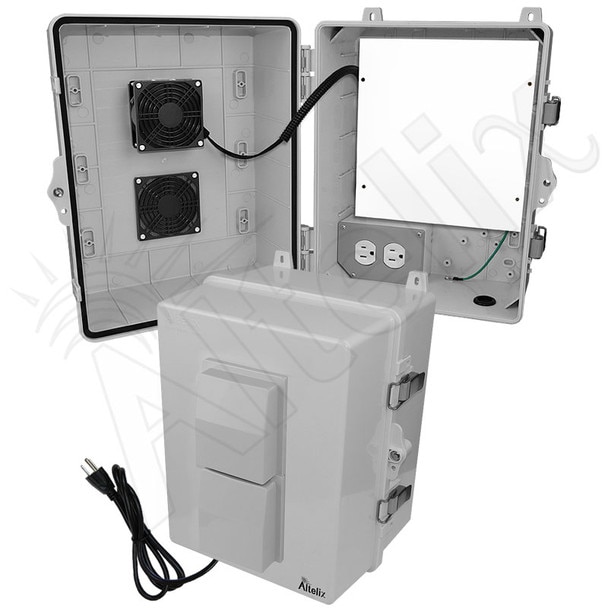

The Altelix NP141109VMFA1C NEMA enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Two internal pre-wired 120VAC power outlets are provided to power your equipment.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can removed and the power receptacle can be hard-wired by a qualified installer.

Increased Interior Space
This enclosure features an extra deep gasketed lid, over 4 inches deep. With the generous size of this enclosure and extended lid the NP141109VMFA1C can accommodate a wide range of equipment.

Cooling Fan Ventilation

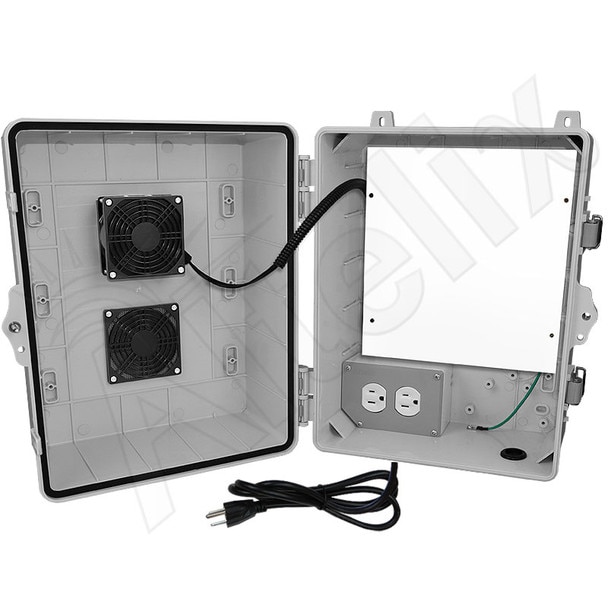

The NP141109VMFA1C features dual vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure.

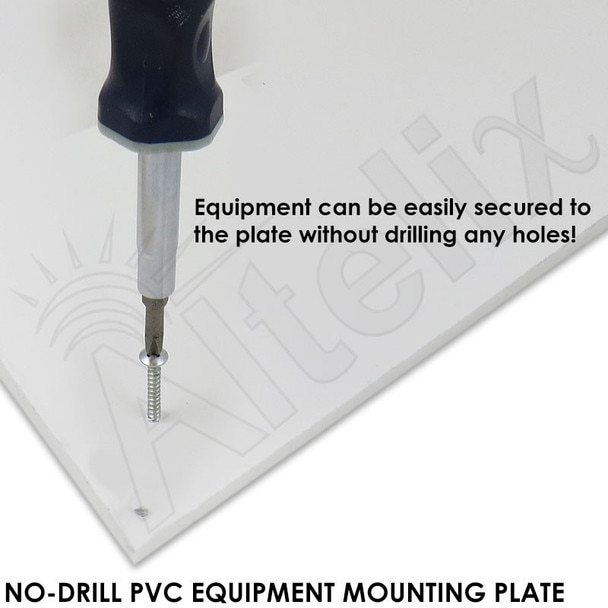

No-Drill Non-Metallic Equipment Plate
Included with this enclosure is a 10mm thick non-metallic PVC plate for mounting and securing equipment. Due to the "No-Drill" design of this PVC plate, mounting radios and other equipment can be done simply by using self-tapping screws.

Note: this enclosure is also available with an aluminum equipment mounting plate (see NP141109VPFA1C) and without an equipment mounting plate (see NP141109VFA1C).

RF Transparent Design
The NP141109VMFA1C is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. The size of this enclosure will fit a wide range of popular wireless access points on the market.

Secure Your Equipment

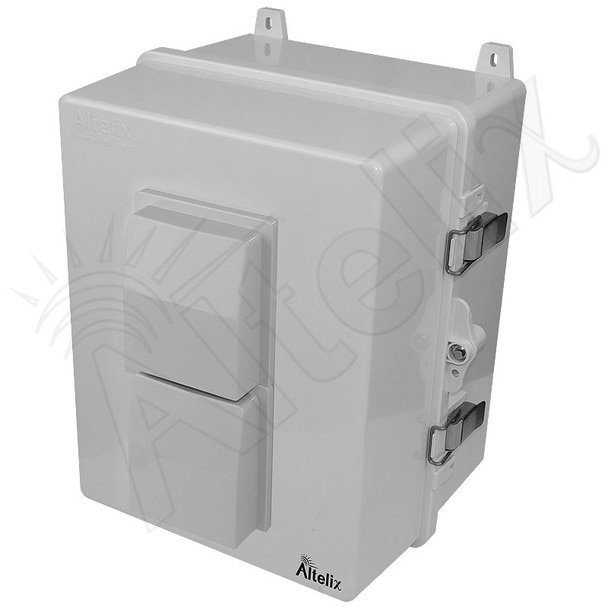

These NP series enclosures feature dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

Complete with Cable Grommets and Wire Management Accessories

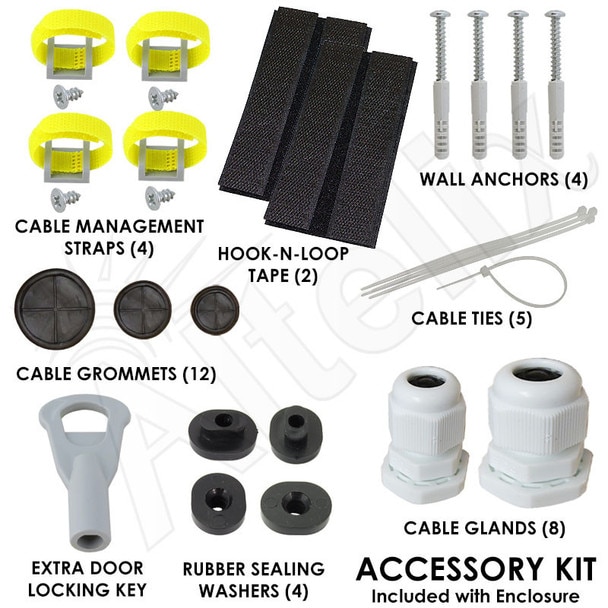

This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.

Multiple Mounting Options

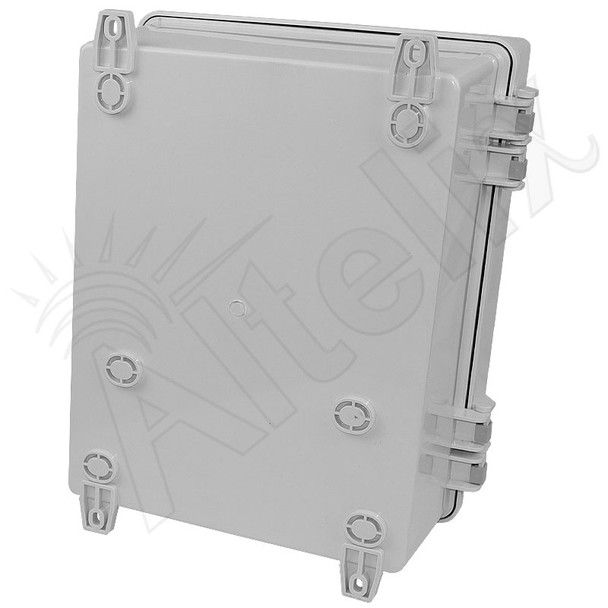

This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.

Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Interested in learning more about this product?Check out our blog!

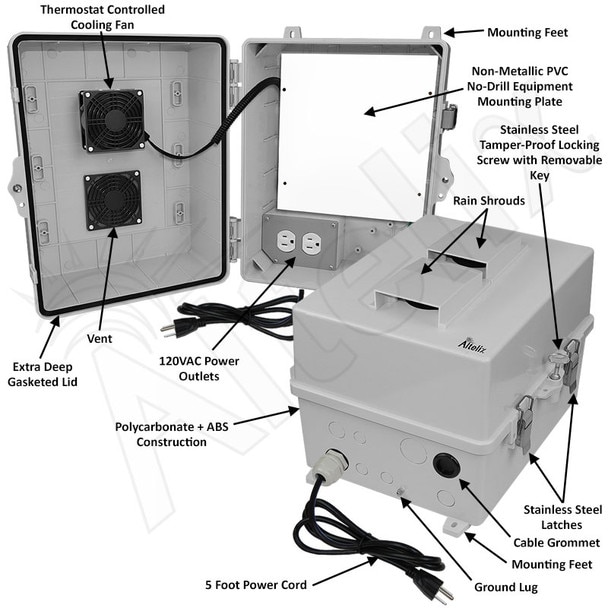

Features

Features

New design provides better versatility and security!
Thermostat controlled cooling fan to help expel heat
Dual vents with rain shields and screens
No electrical wiring required
(2) Internal pre-wired 120VAC power outlets

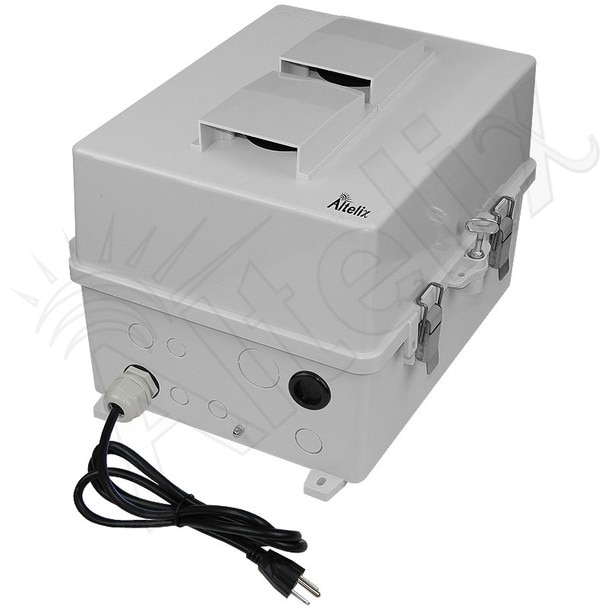

Pre-wired 5 foot 3-prong power cord
Features a No-Drill PVC non-metallic equipment mounting plate - mount your equipment securely without the need for drilling!
Durable Polycarbonate + ABS construction
Weatherproof and UV Stable
Meets NEMA 3R, 3RX and IP24
Extra deep gasketed lid with dual stainless steel latches
Tamper-Proof locking screw with key and provision for padlock
Can be mounted using external feet or internal mounting points
RF transparent for wireless devices

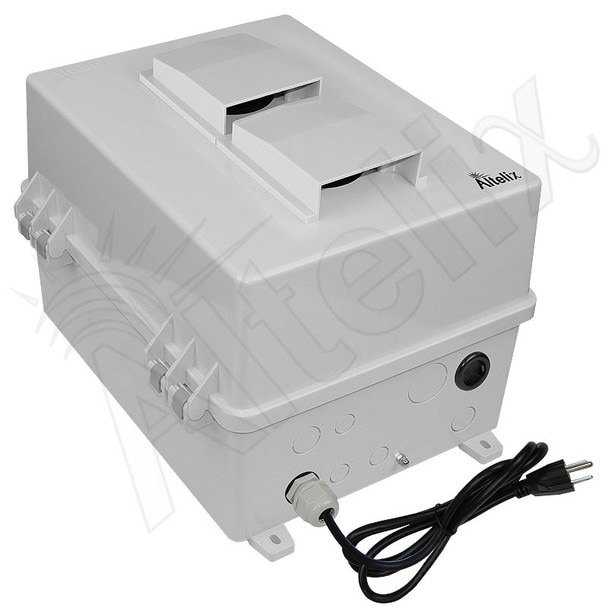

Multiple size knock-out holes on bottom of enclosure
Includes (2) locking keys, cable grommets, cable glands, zip ties, hook-n-loop tape and wall mounting hardware
Optional pole mount kits available

Applications

Indoor / Outdoor WiFi access points and routers
Multi purpose utility box
Home automation
WiFi, LoRa and RFID gear
Security and surveillance systems
LED controllers
IoT devices
Network switches
Media converters
Cable TV and CCTV amplifiers
Broadband equipment
SCADA remote terminal
Outdoor weather protection
Protection against theft or damage
Warehouses and public areas
Concealment of equipment

Specifications

Material	PC+ABS Polycarbonate / ABS Blend
Color	Gray
Voltage	120VAC
Max Load	10A @ 120VAC
Cooling Fan Turn-On Temperature	100°F (38°C) ±6°F
Cooling Fan Turn-Off Temperature	79°F (26°C) ±9°F

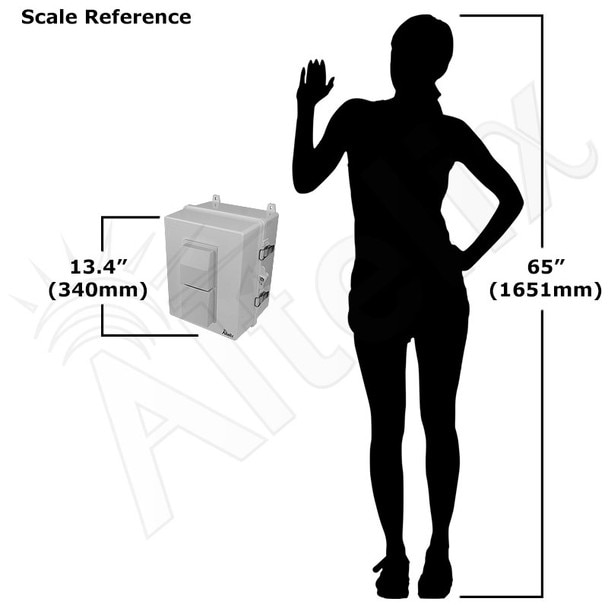

Outer Dimensions (Height x Width x Depth)	14.2 x 11.6 x 10.2 Inches (361 x 293 x 258 mm)
Inner Dimensions* (Height x Width x Depth)	9.5 x 8.7 x 6.3 inches (241 x 220 x 160 mm)
Mounting Plate Material	0.40 In. (10 mm) PVC
Mounting Plate Dimensions	8.9 x 8.5 in. (227 x 216 mm)
Weight	6.7 lbs. (3.1 kg)
Power Cord Length	5 Feet (1.5m)
Ratings	NEMA Type 3R, 3RX / IP24
Flame Rating	Meets UL94-V0
Industry Certifications	CE
Knockout Sizes (Diameter)	(3) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm)

*Interior dimensions represent maximum space available for equipment.
