  • Altelix NP141105VMA1C - 14x11x5 Polycarbonate + ABS Vented RF Transparent Outdoor WiFi Enclosure with No-Drill PVC Equipment Mounting Plate, 120 VAC Outlets & Power Cord

Altelix NP141105VMA1C - 14x11x5 Polycarbonate + ABS Vented RF Transparent Outdoor WiFi Enclosure with No-Drill PVC Equipment Mounting Plate, 120 VAC Outlets & Power Cord

  • Brand: Altelix
  • P\N: NP141105VMA1C
(0)No Reviews yet

Availability: In Stock


Your Price: $194.99

Do you have questions?

Please contact our experts for assistance.

Description

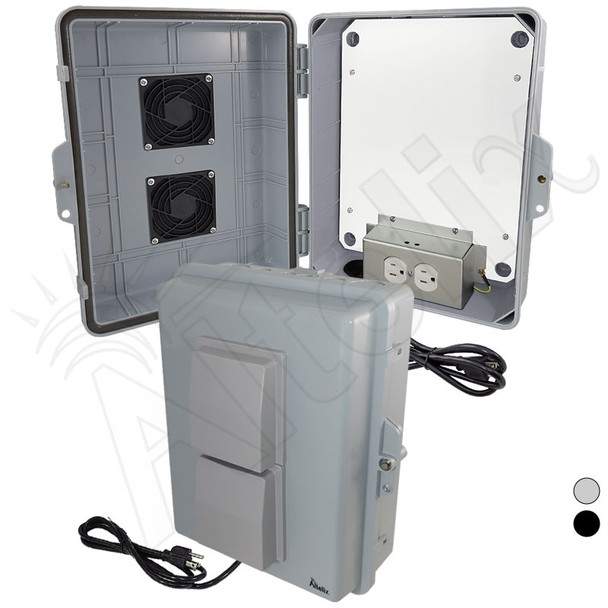

The Altelix NP141105VMA1C NEMA enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The non-metallic equipment mounting plate features two pre-wired 120VAC power outlets for your equipment. A cable grommet on the enclosure allows cables to be connected to internal devices. Knock-outs are also provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can removed and the power receptacle can be hard-wired by a qualified installer.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

Ventilation

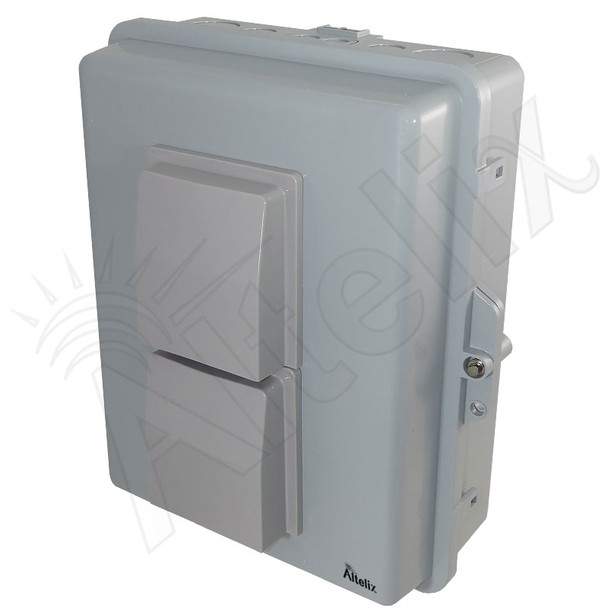

The NP141105VMA1C features two 3" vents. Rain shrouds on the front door keep rain water from entering the enclosure.

No-Drill Non-Metallic Equipment Plate
This configuration consists of the PC+ABS enclosure with hinged lid and a 1/4" thick non-metallic PVC plate for mounting and securing equipment. Due to the "No-Drill" design of this PVC plate, mounting radios and other equipment can be done simply by using self-tapping screws.

RF Transparent Design
The NP141105VMA1C is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere the radio's operation. The size of this enclosure will fit a wide range of popular wireless points on the market.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.

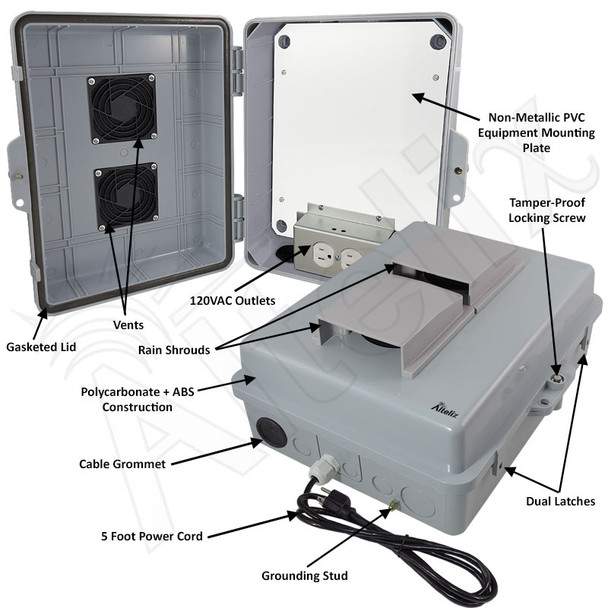

Features

  • Dual 3" Vents with Rain Shields to Expel Heat
  • Features a No-Drill PVC Non-Metallic Equipment Mounting Plate – Mount your equipment securely without the need for drilling!
  • ABS + Polycarbonate Enclosure
  • Gasketed Lid with Tamper-Proof Locking Screw
  • Dual Door Latches
  • (2) 120VAC Outlets
  • Pre-wired 5 foot power cord
  • NEMA Type 3R, 3RX / IP24 Rated
  • Available in Gray and Black
  • Includes Wall Mount Hardware and Cable Grommets

Applications

  • Indoor / Outdoor WiFi Access Points and Routers
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage
  • Concealment of Electronic Equipment
