Altelix NP141105VFA1C-GFI - 14x11x5 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with Cooling Fan, 120 VAC GFCI Outlets & Power Cord
- Brand: Altelix
- P\N: NP141105VFA1C-GFI
Do you have questions?
Please contact our experts for assistance.
Description

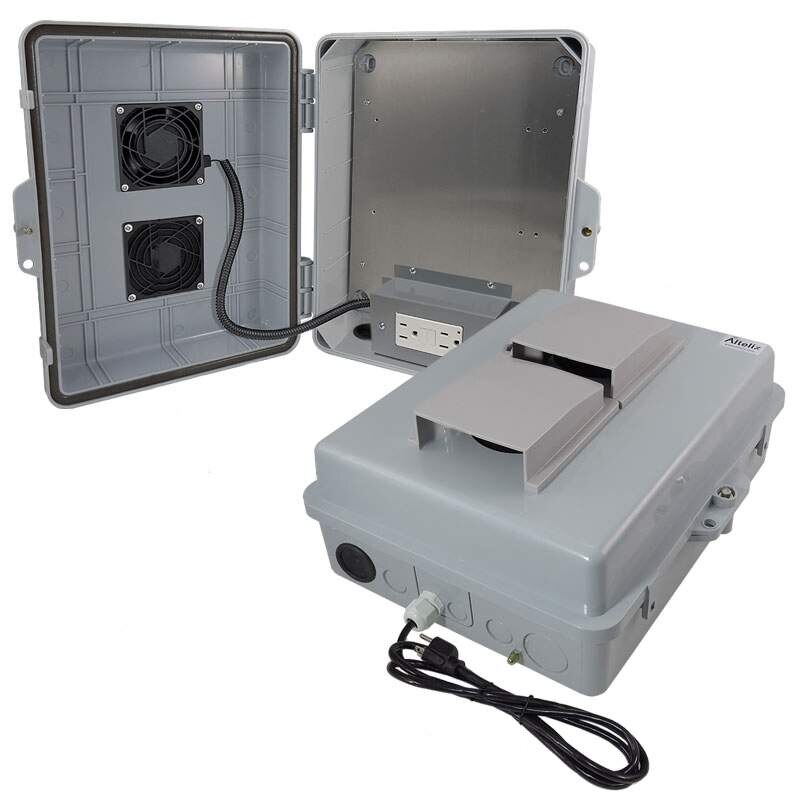

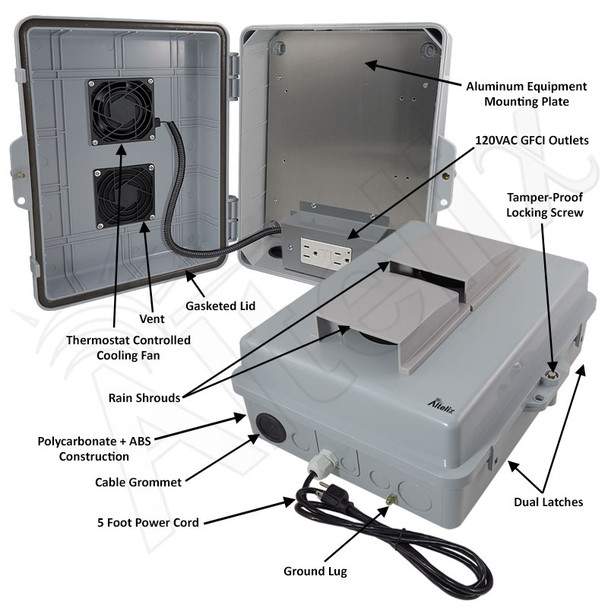

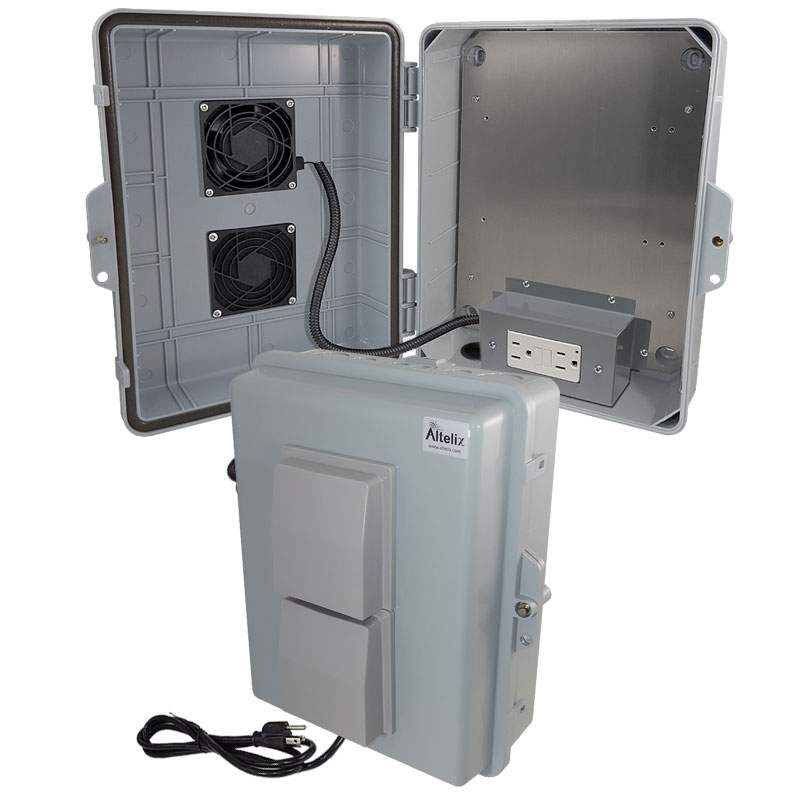

The Altelix NP141105VA1C-GFI Vented Fan Cooled Polycarbonate + ABS NEMA Weatherproof Enclosure with 120VAC Power and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.
PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.
Cooling Fan Ventilation
The NP141105VFA1C-GFI features two 3" vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure. Dual fans are also available by request.
Power
This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 2.0mm thick aluminum plate with 120VAC GFCI power outlets. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. The enclosure can also be hard wired by an electrician or qualified installer. An external ground lug is provided. A cable grommet on the enclosure allows cables to be connected to internal devices. Knock-outs are also provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit
120VAC GFCI Protected Outlet
The NP141105VFA1C-GFI features a Ground Fault Circuit Interrupter (GFCI) outlet. Like a circuit breaker, this outlet shuts off electric power when it senses an imbalance between the outgoing and incoming current. They are ideal in locations where water may be present since they provide an extra level of protection from electrical shock. Test and reset buttons are provided on the outlet.
Aluminum Equipment Mounting Plate
The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.
Features
- Two (2) 3" Vents and Thermostat Controlled Cooling Fan
- ABS + Polycarbonate Enclosure
- Available in Gray and Black
- Gasketed Lid with Tamper-Proof Locking Screw
- Dual Door Latches
- Aluminum Equipment Mounting Plate
- GFCI Protected 120VAC Outlet
- Pre-wired 5 foot power cord
- NEMA Type 3R, 3RX / IP24 Rated
- Includes Wall Mount Hardware and Cable Grommets
Applications
- Indoor / Outdoor WiFi Equipment
- SCADA Remote Terminal Unit
- Security and Surveillance Systems
- Outdoor use of Indoor Equipment
- Protection of Equipment from Theft or Damage
- Concealment of Electronic Equipment
