Altelix 14x12x10 Fiberglass Vented Weatherproof NEMA Enclosure with Blank Aluminum Mounting Plate

Altelix 14x12x10 Fiberglass Vented Weatherproof NEMA Enclosure with Blank Aluminum Mounting Plate

Vented NEMA Enclosure with Aluminum Equipment Mounting Plate

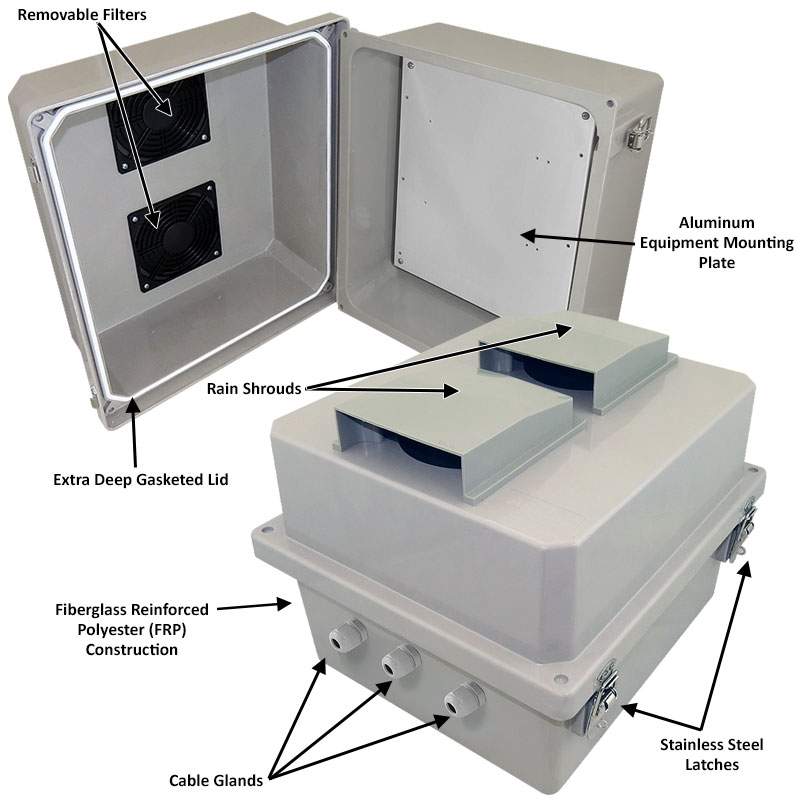

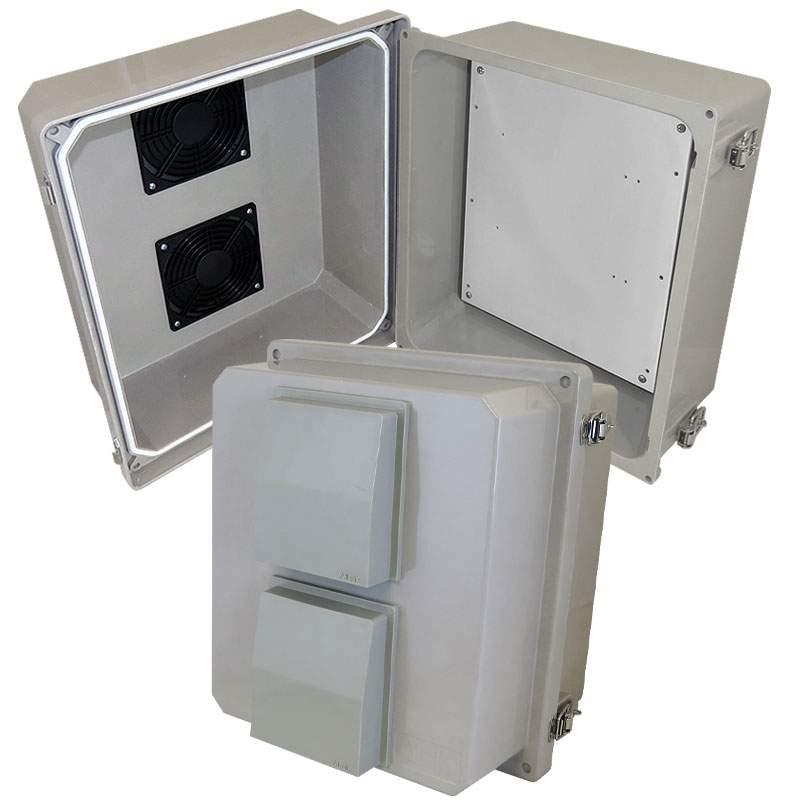

The Altelix NF141210VP features two 4 inch air vents covered by rain shields, with cleanable screens. It is ideal for protecting equipment from harsh environments and tampering, while allowing ventilation for installed equipment or batteries.

Aluminum Equipment Plate
This enclosure features an easy to drill aluminum equipment mounting plate. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

Increased Interior Space
The NF141210 series enclosures feature an extra deep lid, almost 2 inches deeper than our NF141208 series enclosures. With the generous size of this enclosure and extended lid the NF141210 can accommodate a wide range of equipment.

Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).

Additional Sizes Available
The NF14 series enclosures are available in two additional sizes:
NF141206 Series - 14x12x6
NF141208 Series - 14x12x8

Features

• Two (2) 4" Vents with Rain Shields and Screens
• Includes Easy to Drill Blank Aluminum Equipment Mounting Plate
• Water Resistant JIC Enclosure Design with Gasketed Lid
• Extra Deep Extended Lid for Increased Equipment Clearance
• NEMA Type 3R, 3RX / IP24 Rated
• Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
• Stainless Steel Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• Includes Stainless Steel Mounting Feet
• RF Transparent Enclosure
• Pole Mounting Kit Available

Applications

• Rapid Deployment Systems
• Harsh Environments
• WiFi Enclosure
• RFID Reader Enclosure
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Solar Equipment Enclosure
• Outdoor use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
• Building Automation Controls
• Industrial Controls Enclosure
• Battery Box
