Altelix 14x12x10 Fiberglass Weatherproof NEMA 4X Pole Mount Enclosure

Extreme Protection Built to Last

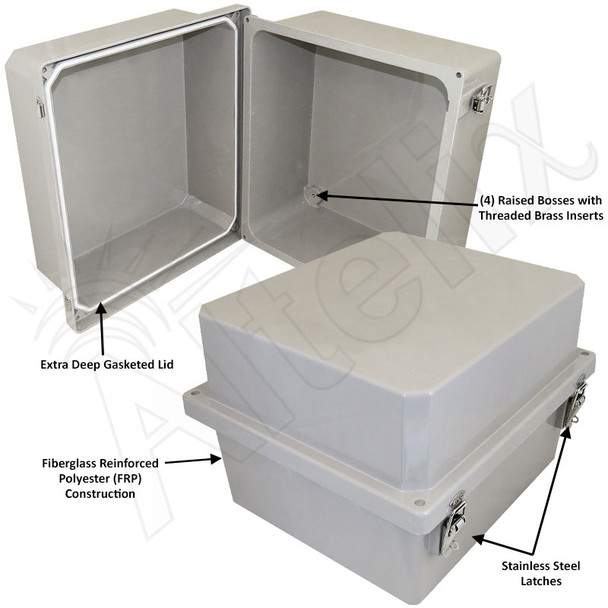

The Altelix NF141210-PKIT NEMA 4X Weatherproof Pole Mount Enclosure is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

This JIC style pole mount enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

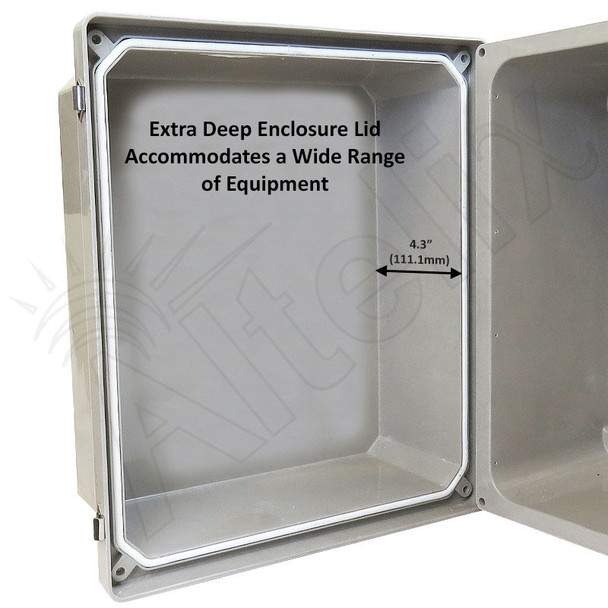

Increased Interior Space
The NF141210 series enclosures feature an extra deep lid, almost 2 inches deeper than our NF141208 series enclosures. With the generous size of this enclosure and extended lid the NF141210 can accommodate a wide range of equipment.

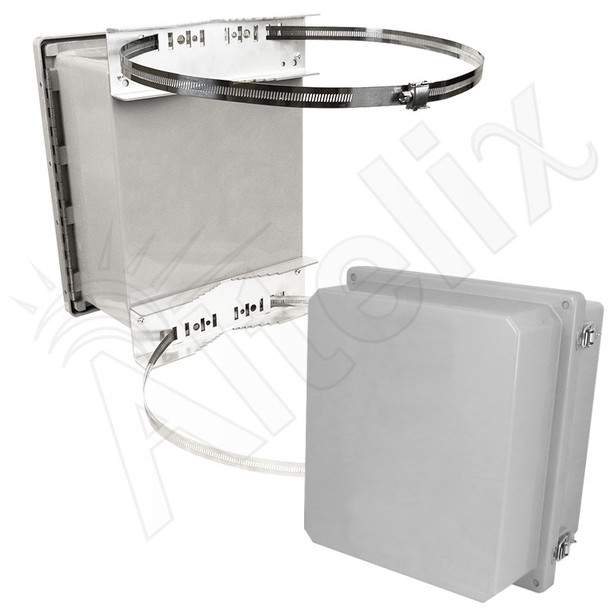

Pole Mounting

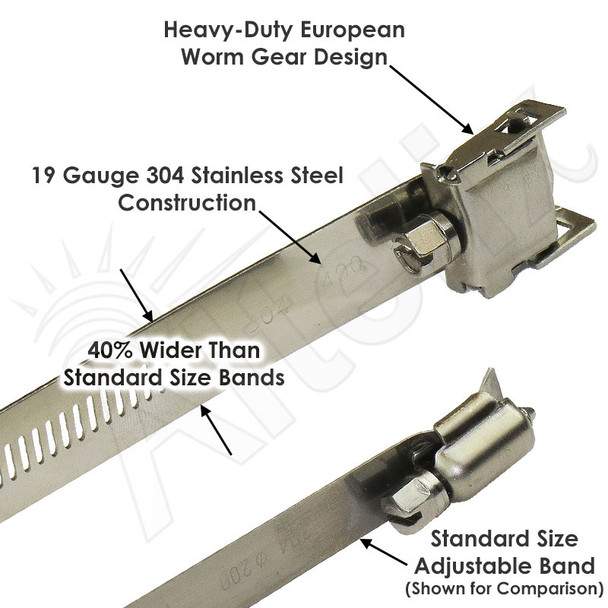

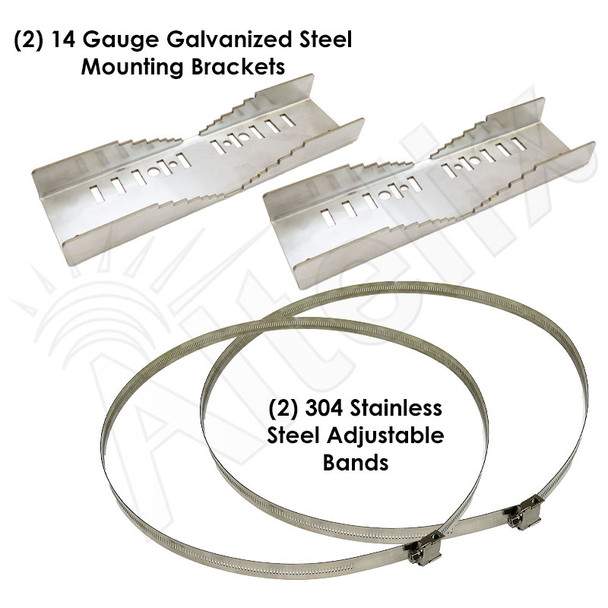

Included in this kit is our heavy duty NMHS-300-16 pole mount which is designed for rugged all weather installations. The (2) included mounting brackets are constructed from 14 gauge (0.08 inch thick) galvanized steel. To mount to the pole this kit includes (2) heavy duty 19 gauge 304 stainless steel adjustable bands. 40% wider then standard adjustable bands, these 0.7 inch (18mm) wide bands feature a heavy-duty European worm gear design which is stronger than standard hose clamp gears.

Additional Sizes Available
The NF14 series enclosures are available in two additional sizes:
NF141206 Series - 14x12x6
NF141208 Series - 14x12x8

Features

• Includes Heavy Duty Pole Mount Kit with Galvanized Steel Mounting Brackets and Stainless Steel Adjustable Bands

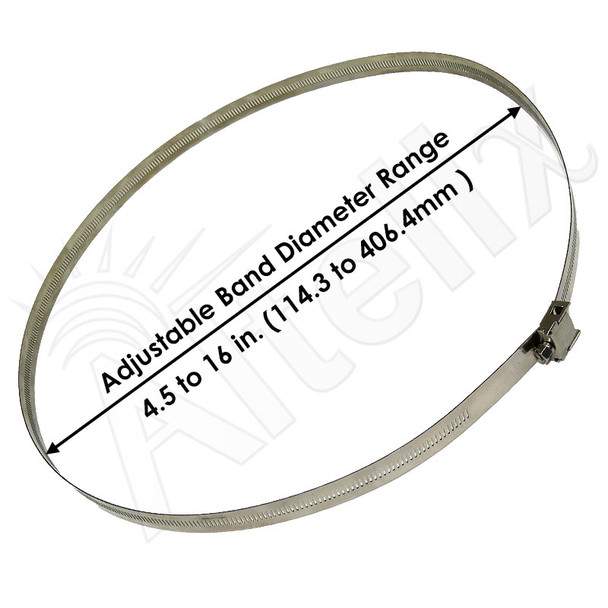

• Adjustable Bands for Mounting to Poles 1.7 to 16 inches (44.4 to 406.4mm) in Diameter
• Water Resistant JIC Enclosure Design with Gasketed Lid
• Extra Deep Extended Lid for Increased Equipment Clearance
• Meets NEMA 1, 2, 4, 4X, 12, 13, IP65, IP66
• Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
• Stainless Steel Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• Raised Bosses and Threaded Brass Inserts for Plate Mounting
• Includes Stainless Steel Mounting Brackets
• RF Transparent and Non-Conductive
• Outer Dimensions: 15.7 x 13.8 x 10.5 Inches (401 x 352 x 268 mm)
• Inner Dimensions: 12.7 x 10.7 x 9.4 Inches (323 x 273 x 240 mm)

Applications

• Pole and Mast Mounting
• Harsh Environments
• WiFi Enclosure
• RFID Reader Enclosure
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Solar Equipment Enclosure
• Outdoor use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
• Building Automation Controls
• Industrial Controls Enclosure
