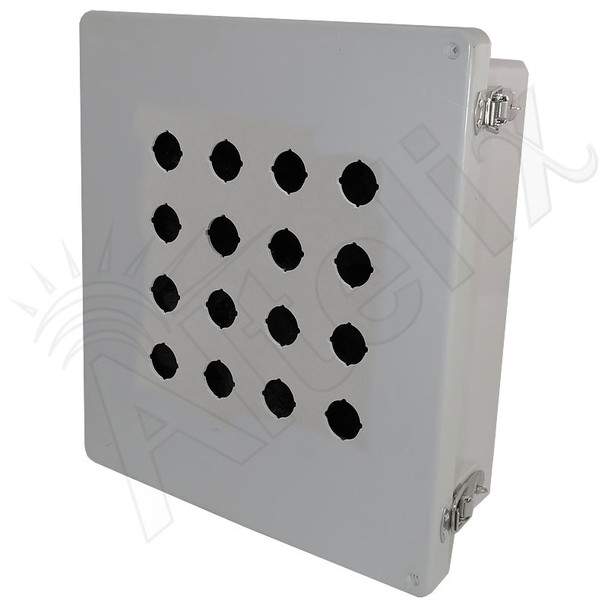

Altelix NP141206-PB22-16 - 14x12x6 Fiberglass NEMA 4X Weatherproof 16 Pushbutton Enclosure with 22mm holes

Altelix NP141206-PB22-16 14x12x6 Fiberglass NEMA 4X Weatherproof 16 Pushbutton Enclosure with 22mm holes

Best For

The Altelix NF141206-PB Series NEMA 4X Weatherproof Enclosure is an industrial quality weatherproof Push Button Enclosure designed to offer extreme protection for a variety of 22 and 30 mm pilot devices including indicators and selector switches.

Why Choose the NP141206-PB22-16?

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

Key Benefits

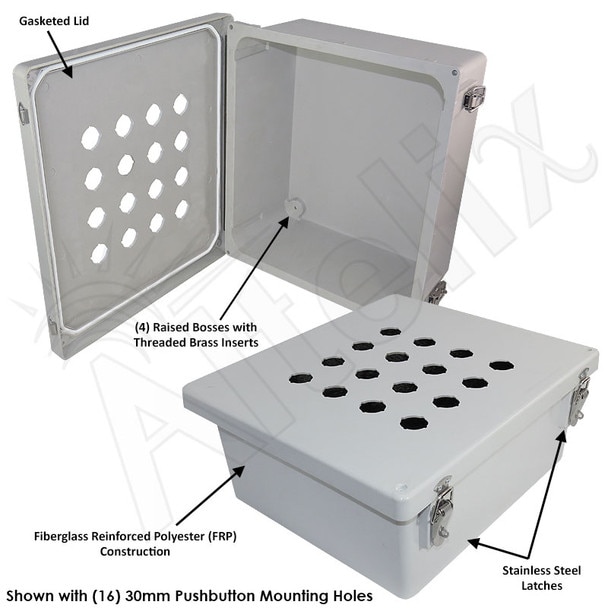

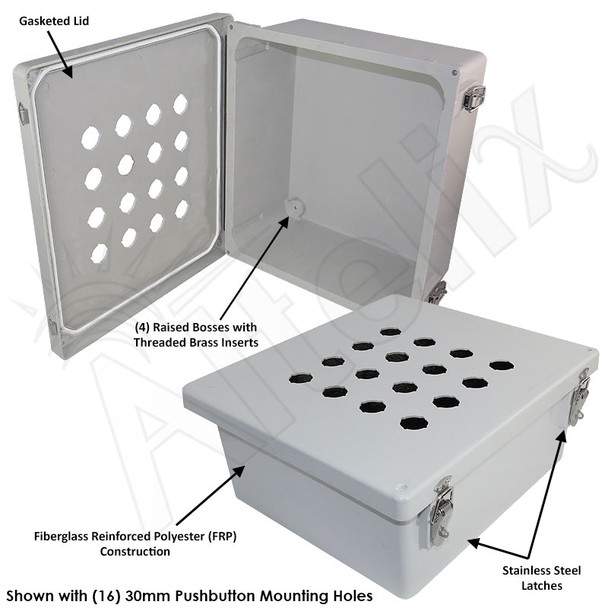

• Water Resistant JIC Enclosure Design with Gasketed Lid
• Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
• Raised Bosses and Threaded Brass Inserts for Plate Mounting
• Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• Includes Stainless Steel Mounting Feet

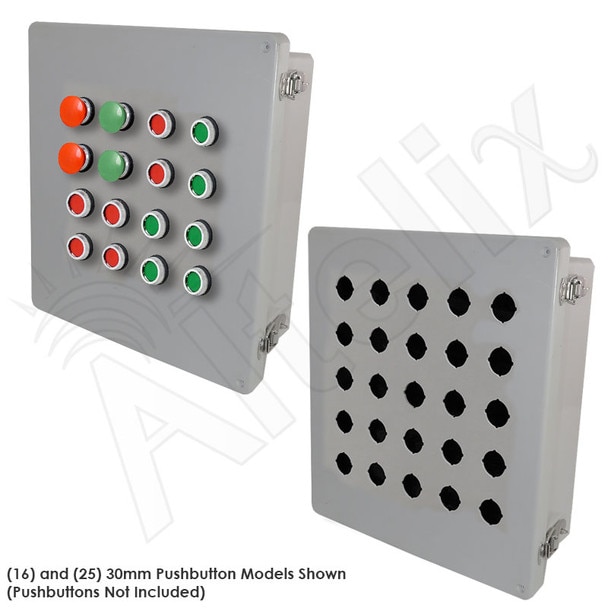

• Available with either 16, 20, 24, 25 or 30 Precut Pushbutton Mounting Holes (22mm or 30mm)
• Pole Mounting Kit Available

Who Should Buy the NP141206-PB22-16?

Installers and integrators who need a weatherproof enclosure for their equipment and have confirmed the equipment dimensions, mounting method and cable-entry requirements.

Pushbutton Enclosure

The NF141206-PB is designed to work with 22.5mm or 30.5mm push buttons, switches, pilot lights and other indicators. The gasketed hinged door of this enclosure helps prevent damage and wear to sensitive electrical contacts. The NF141206-PB is available in 16 hole, 20 hole, 24 hole, 25 hole and 30 hole configurations. (See the download section for configuration drawings and mounting hole dimensions) Custom push button mounting hole configurations are also available.

Mounting

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).

Applications

• Protection for Industrial Components
• Securely House Pushbutton devices such as Indicators, Selector Switches, Pilot Lights and Buzzers
• Agriculture Processing Facilities
• Mining Operations and Refineries
• Food Processing Facilities
• Industrial Controls
• Building Automation
• Warehouses and Package Sorting Facilities
• Access Controls
