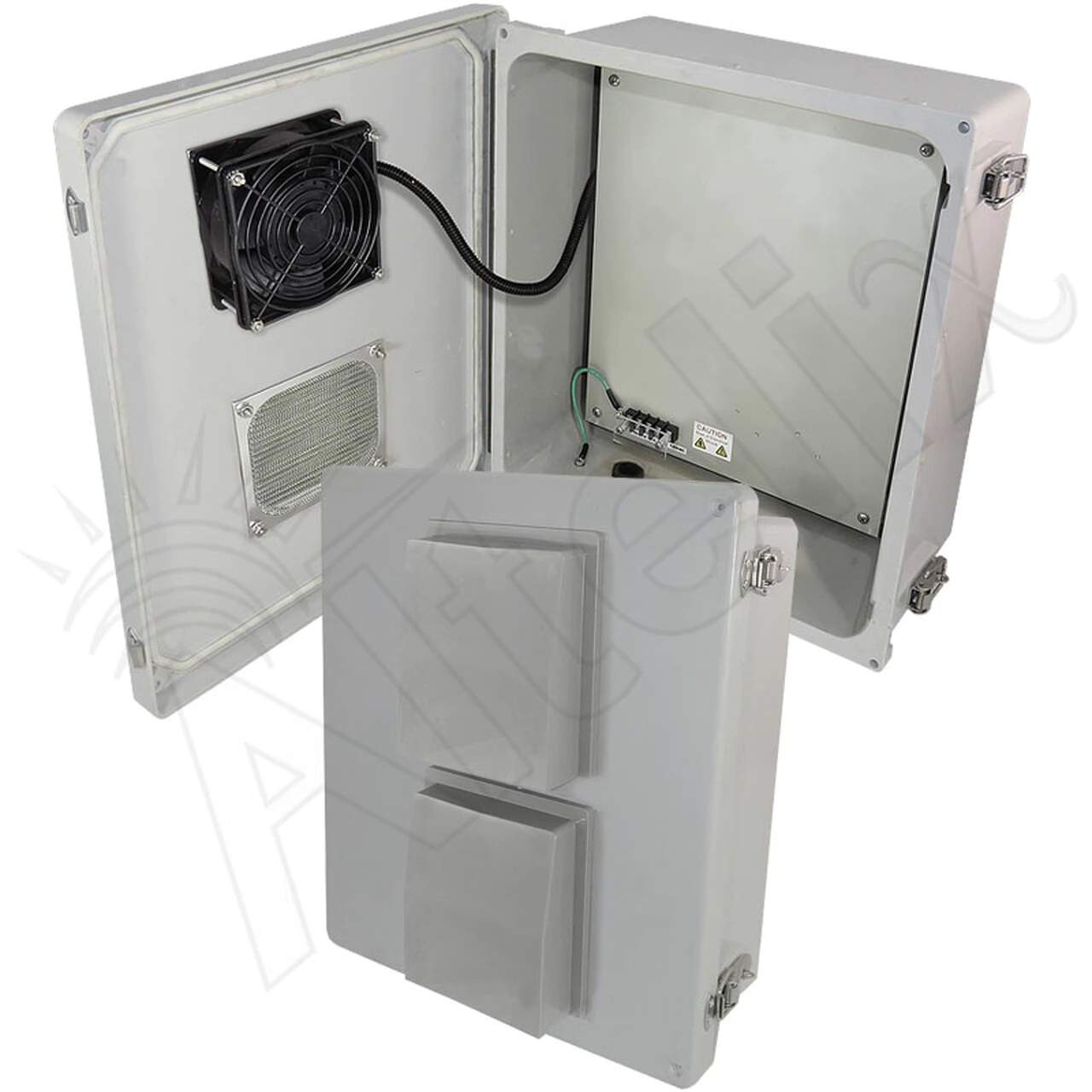

Altelix NF141206VFD2 - 14x12x6 Fiberglass Weatherproof Vented NEMA Enclosure with 24 VDC Cooling Fan

The Altelix NF141206VFD2 features two 4" vents and a 24VDC thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for your equipment. This enclosure can be powered from 24VDC solar and battery power sources, and features a terminal strip for easy wiring. This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment. The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Key Features

• 24VDC Thermostat Controlled Cooling Fan
• Two (2) 4" Vents with Rain Shields and Screens
• Terminal Strip
• Aluminum Equipment Mounting Plate
• Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• NEMA Type 3R, 3RX / IP24 Rated
• Includes Cable Glands and Stainless Steel Mounting Feet
• RF Transparent Enclosure

Specs:

• Material: Fiberglass Reinforced Polyester
• Color: Gray
• Voltage: 24VDC
• Cooling Fan Turn-On Temperature: 100°F (38°C)
• Cooling Fan Turn-Off Temperature: 79°F (26°C)
• Outer Dimensions: 15.7 x 13.8 x 6.5 Inches (401 x 352 x 164 mm)
• Inner Dimensions: 13.87 x 11.97 x 6.2 Inches (352 x 304 x 154 mm)
• Mounting Plate Material: 0.10 in (2.5 mm) Aluminum
• Mounting Plate Dimensions: 10.9 x 12.8 in. (276 x 324 mm)
• Weight: 11.9 lbs. (5.4 kg)
• Ratings: NEMA Type 3R, 3RX / IP24
• Flame Rating: UL94-5V
