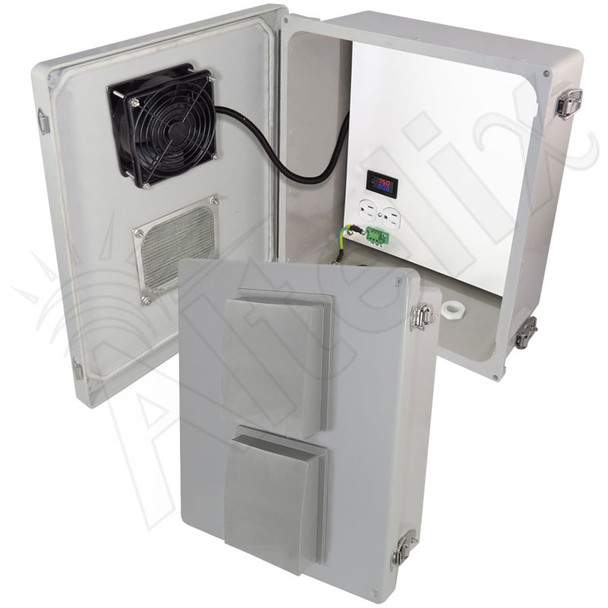

Altelix NF141206VMFA1-DF - 14x12x6 Fiberglass WiFi Weatherproof Vented NEMA Enclosure with 120 VAC Outlets, No-Drill PVC Equipment Mounting Plate and Cooling Fan with Digital Temperature Controller

  • Brand: Altelix
  • P\N: NF141206VMFA1-DF
(0)No Reviews yet

Availability: In Stock


Your Price: $379.99

Do you have questions?

Please contact our experts for assistance.

Description

Fan Cooled NEMA Enclosure with 120VAC Power Outlets

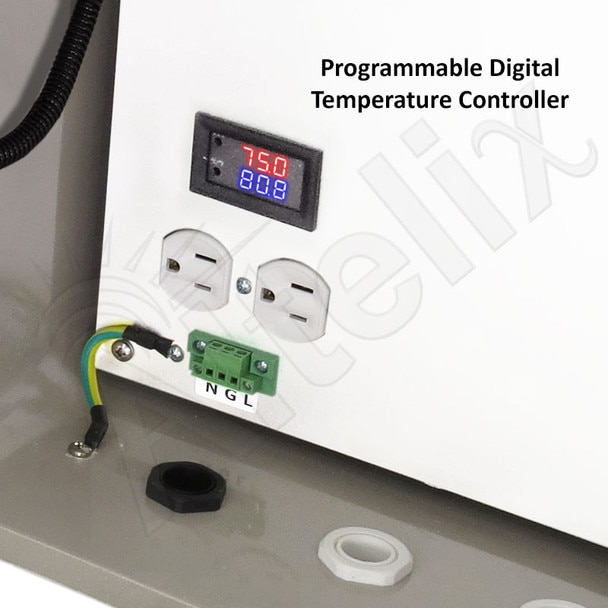

The Altelix NF141206VMFA1-DF features two 4" vents and a cooling fan which helps maintain lower internal temperatures. The operation of the cooling fan can be controlled by the programmable digital temperature controller accessible inside the enclosure. The fan can be programmed to turn on and off within a set temperature range set by the user. The controller features a color digital readout and can be programmed for Fahrenheit or Celsius. Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment.

This enclosure provides two pre-wired 120VAC power outlets and a terminal strip, for easy wiring by a qualified installer. The fan is wired internally, leaving all power outlets available for installed equipment.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.

Wireless Compatibility
This RF transparent enclosure features a 0.20" (5mm) thick polyester non-metallic equipment mounting plate making it ideal for wireless applications including WiFi, RFID, iOT, Cellular and more. The non-metallic materials will not interfere with the operation of wireless gear.

Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.


Removable Terminal Block
This enclosure features our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.


Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).

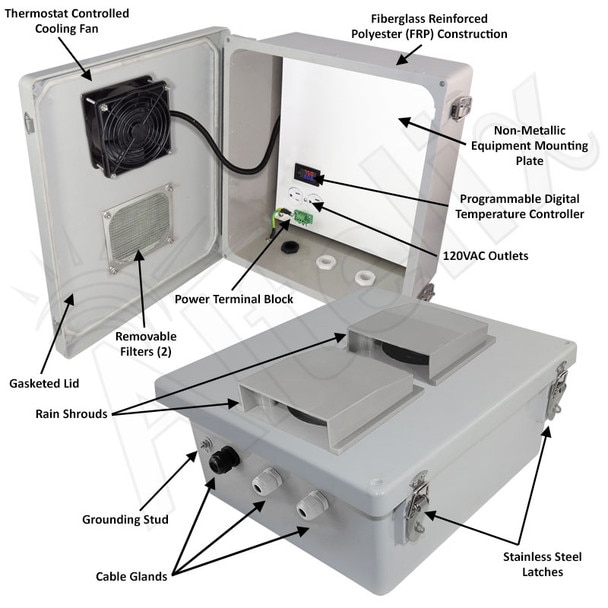

Features

  • Cooling Fan with Programmable Digital Temperature Controller
  • Two (2) 4" Vents with Rain Shields and Screens
  • (2) Pre-Wired 120VAC Outlets
  • Removable 120VAC Terminal Block
  • Easy to Drill RF Transparent Blank 5mm Thick Non-Metallic Polyester Equipment Mounting Plate
  • Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Cable Glands and Stainless Steel Mounting Feet
  • RF Transparent Enclosure
  • Pole Mounting Kit Available

Applications

  • Rapid Deployment Systems
  • Harsh Environments
  • WiFi Enclosure
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure
  • Battery and Charger Box
