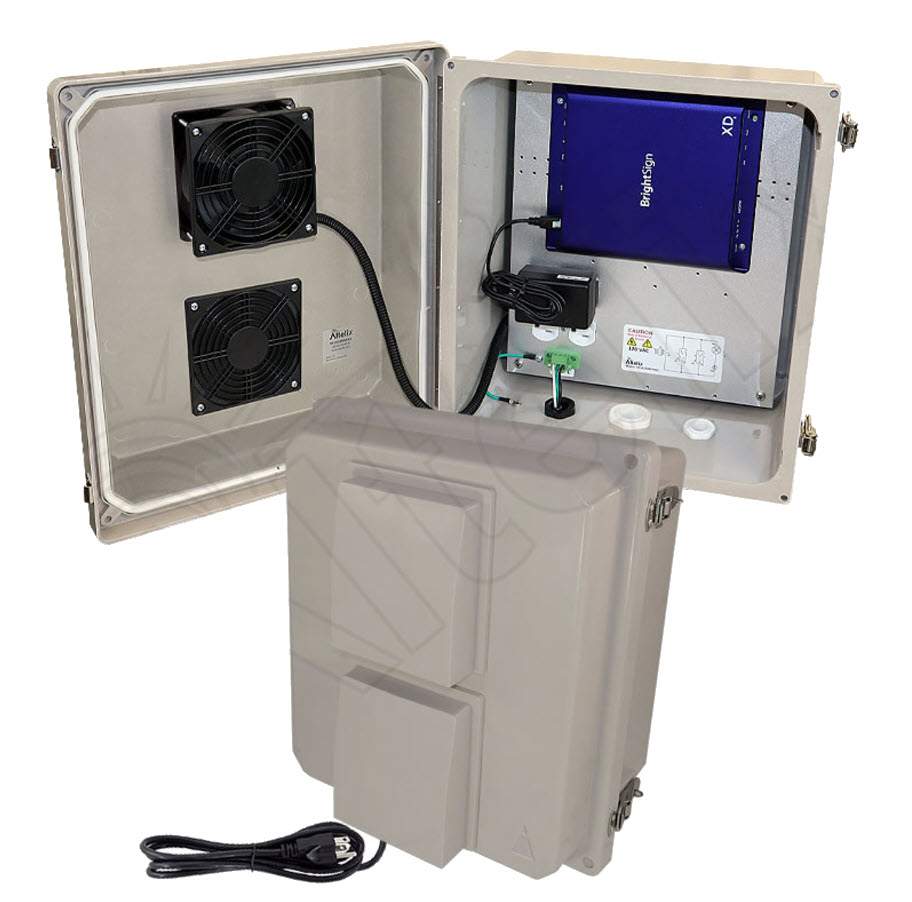

Altelix NF14VFA1C-BSN1 - 14x12x8 Fiberglass Weatherproof Vented NEMA Enclosure for BrightSign® HD5, XD5 & XT4 Digital Signage Players with Cooling Fan, 120 VAC Outlets & Power Cord
- Brand: Altelix
- P\N: NF14VFA1C-BSN1
Do you have questions?
Please contact our experts for assistance.
Description
Description
Industrial Grade All Weather Protection For BrightSign® Players
Designed to provide the ultimate protection for BrightSign® HD5, XD5 and XT4 Digital Signage Players, this fan cooled enclosure is easy to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The aluminum equipment mounting plate features four pre-wired 120VAC power outlets for powering the BrightSign® players and any additional equipment installed in the enclosure such as a router.
Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.
Plug and Play Setup
The NF14VFA1C-BSN1 enclosure provides easy plug-n-play installation. The equipment mounting plate is pre-drilled to except the BrightSign® player. Once the player is securely mounted to the plate, connect the power supply to the internal 120VAC power outlet. Cable glands on the enclosure allows cables to be connected to the device. Simply plug the enclosure's 5 foot power cord into an outdoor outlet and you are up and running. The generous size of this enclosure and extended lid provides space for additional equipment to be installed such as the Cradlepoint® IBR650B LTE router, cable modem or WiFi access point. This enclosure is compatible with the following BrightSign® Digital Signage Players:
- HD5 Series - HD225
- HD5 Series - HD1025
- XD5 Series - XD235
- XT4-T Series - XT1144-T
- XT4 Series - XT244
- XT4 Series - XT1144
Fan Cooling with Thermostat Control
This enclosure features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment. The fan is wired internally, leaving all 4 power outlets available for installed equipment.
Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.
Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. One for a HDMI cable and the other for USB or Ethernet cables. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available. See available accessories when adding to cart.
Customization
In addition to this standard enclosure, Altelix can custom design and manufacture enclosures for your unique digital signage requirements. We offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
Features
|
Applications
- Harsh Environments
- Protection from Theft and Vandalism
- Concealment of Digital Signage Equipment
- Outdoor Digital Signage Installations
- Advertising Displays
- Drive-Thru Display Menus
