Altelix NF141208VMFE1 - 14x12x8 PoE Powered Fiberglass Weatherproof Vented NEMA Enclosure with Cooling Fan & 2-Port PoE Power Splitter

Altelix NF141208VMFE1 14x12x8 PoE Powered Fiberglass Weatherproof Vented NEMA Enclosure with Cooling Fan & 2-Port PoE Power Splitter

Best For

The Altelix NF141208VMFE1 is a 14x12x8 PoE Powered Fiberglass Weatherproof Vented NEMA Enclosure with Cooling Fan & 2-Port PoE Power Splitter.

Why Choose the NF141208VMFE1?

Using a single Ethernet cable to provide power and data, this enclosure can be installed in remote locations with no power outlets available.

Key Benefits

• Integral Gigabit PoE/PoE+ Repeater/Power Splitter Which Provides Power+Data for up to (2) PoE Devices
• Thermostat Controlled PoE Powered DC Cooling Fan
• Two (2) 4" Vents with Rain Shields and Screens
• Features a No-Drill Non-Metallic Equipment Mounting Plate - Mount Your Equipment Securely Without the Need for Drilling
• Extended Lid for Increased Equipment Clearance
• Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• NEMA Type 3R, 3RX / IP24 Rated
• Includes Cable Glands and Stainless Steel Mounting Feet
• RF Transparent Enclosure
• Pole Mounting Kit Available

Who Should Buy the NF141208VMFE1?

The Altelix NF141208VMFE1 Vented FRP NEMA Weatherproof PoE Enclosure with DC Cooling Fan and Non-Metallic Equipment Mounting Plate is ideal for protecting Power-Over-Ethernet (PoE) enabled equipment from harsh environments and tampering.

Integral Gigabit PoE/PoE+ Repeater / Power Splitter

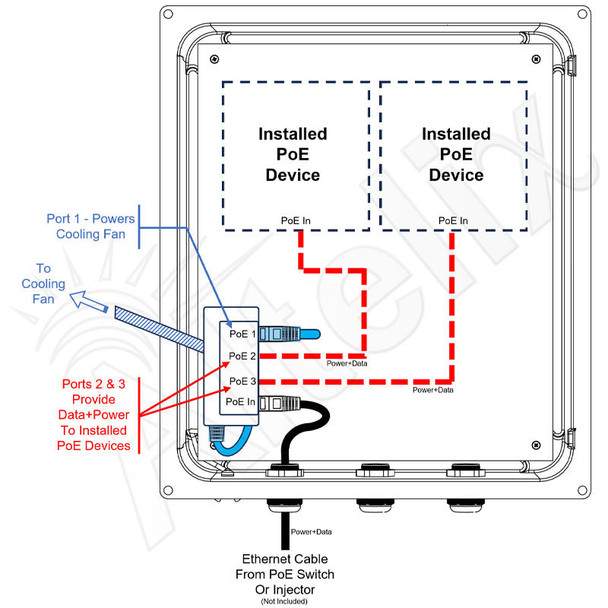

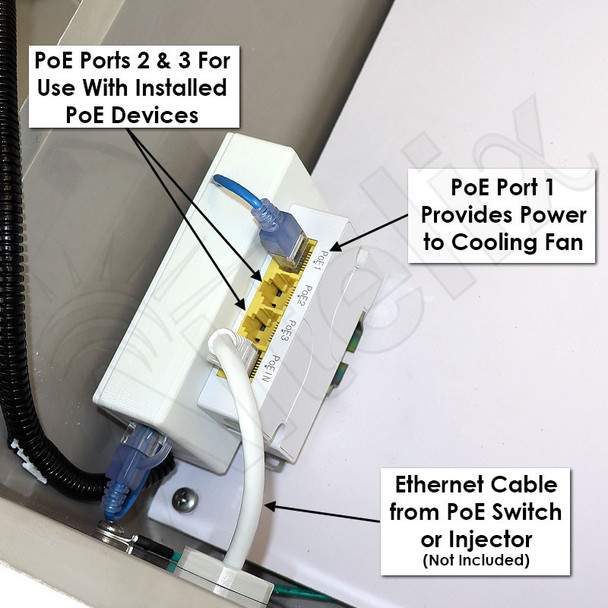

Featured in this enclosure is an integral Gigabit PoE repeater/power splitter mounted to the equipment mounting plate. This Gigabit PoE splitter is used to power the thermostat controlled DC cooling fan as well as providing data+power to one or two PoE enabled devices installed inside the enclosure. The PoE splitter is compatible with IEEE 802.3af/at standards and features 10/100/1000Mbps data speeds.

PoE Powered Cooling Fan

The NF141208VMFE1 features dual 4" vents and a thermostat controlled PoE powered DC cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds on the front door keep rain water from entering the enclosure.

No-Drill Non-Metallic Equipment Plate

This enclosure includes a no-drill non-metallic 1/4" thick PVC equipment mounting plate. Due to the "No-Drill" design of this plate, mounting radios and other equipment can be done simply by using self-tapping screws.

RF Transparent Design

The NF141208VMFE1 is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. The generous size of this enclosure and the extended lid will accommodate a wide range PoE wireless equipment.

Extreme Protection Built to Last

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

Cable Glands

This enclosure features three of our unique PG-16 cable glands. The first is a specially designed cable gland which will allow a pre-terminated Ethernet cable to be fed into the enclosure. The second two glands features a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Larger Size Available

For applications requiring additional interior space, this enclosure is also available in a larger size. The NF141210VMFE1 14x12x10 enclosure features an extra deep lid for increased equipment clearance.

Applications

• PoE Network Equipment Deployment
• Indoor / Outdoor WiFi PoE Access Points and Routers
• Installation in Remote Locations Without Available Power
• Security and Surveillance Systems
• Outdoor Use of Indoor Equipment
• Protection of Equipment From Theft or Damage
• Concealment of Electronic Equipment
