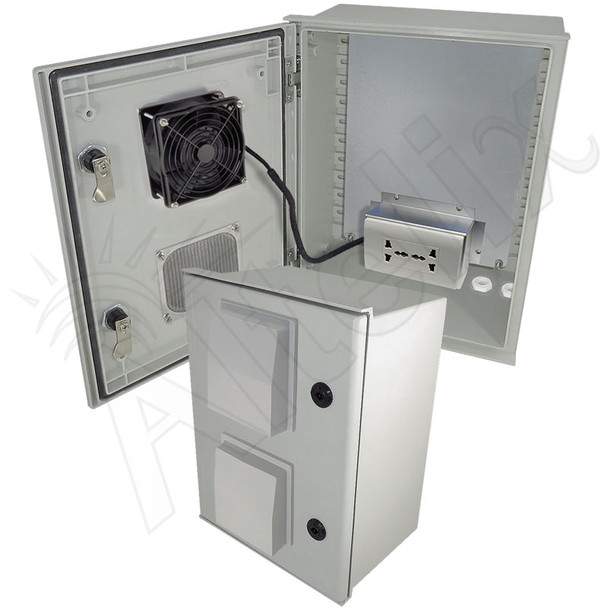

Altelix NFC161208VFAU - 16x12x8 Vented Fiberglass Weatherproof NEMA Enclosure with 100-240 VAC Universal Power Outlet & Cooling Fan
- Brand: Altelix
- P\N: NFC161208VFAU
Do you have questions?
Please contact our experts for assistance.
Description
The Altelix NFC161208VFAU Vented Fan Cooled Weatherproof NEMA Enclosure with 100-240VAC Universal Power Outlet and Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

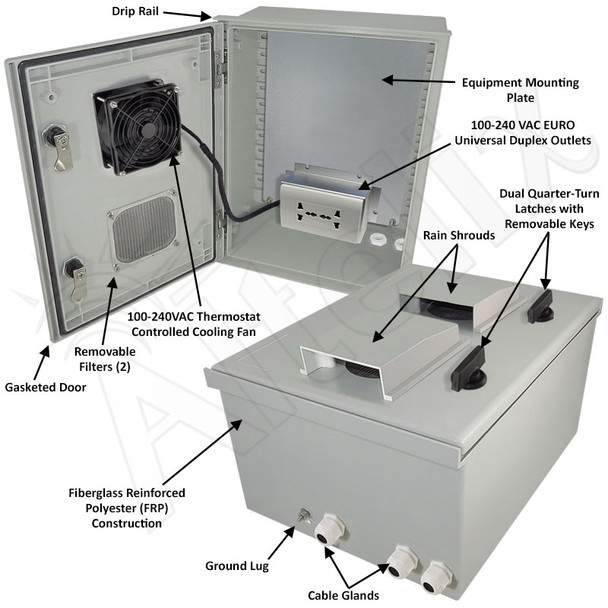

Construction and Features
This rugged enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.
Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!
Power
This enclosure features a 100-240VAC universal power outlet supporting multiple international power standards outside the USA.:
- 110VAC 50/60Hz
- 115VAC 50/60Hz
- 220VAC 50/60Hz
- 230VAC 50/60Hz
- 240VAC 50/60Hz
Universal Power Outlet
The universal 100-240 VAC power outlet is compatible with the following plug types:
- UK/Ireland BS 1363
- Italy CEI 23-16/VII
- Denmark Afsnit 107-2-D1
- Euro plug (2-pin) CEE 7/16
- Australia Type I
- India BS 546
For the following plugs types, please refer to the safety notes in the Technical Specs:
- Swiss (2-pin) SEV 1011
- Israel SI 32
- North America (2-pin) NEMA 1-15 and (3-pin) NEMA 5-15
- Continental Europe (Schuko) CEE 7
- France/Belgium CEE 7
Cooling Fan Ventilation
The NFC161208VFAU features two 4" vents and a thermostat controlled 100-240VAC cooling fan that fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure, and the internal aluminum mesh filters are removable for cleaning. Dual fans are also available by request.
Equipment Mounting Plate
The equipment mounting plate is provided for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting
Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-300-08) and stainless steel (model NMKX-300-08).
Optional Lockable Latches
For additional protection of internal equipment installed, three lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. Similar to the HN-0005, the HN-0001 has an interlock feature that traps the key when it is in the unlocked position. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). All of these optional lockable latches are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
Features
- Heavy Duty Fiberglass Reinforced Polyester (FRP) Construction
- Includes Equipment Mounting Plate
- Dual 4" Vents and Thermostat Controlled 100-240 VAC Cooling Fan
- Universal 100-240VAC Duplex Outlets
- Dual Quarter-Turn Door Latches
- Bonus Aluminum Bottle Opener Key Now Included!
- (4) Mounting Feet Included
- NEMA Type 3R, 3RX / IP24 Rated
- Optional Lockable Latch Sets Available
Applications
- Worldwide Operation
- Indoor / Outdoor WiFi Equipment
- SCADA Remote Terminal Unit
- Security and Surveillance Systems
- Outdoor use of Indoor Equipment
- Protection of Equipment from Theft or Damage
- Concealment of Electronic Equipment
