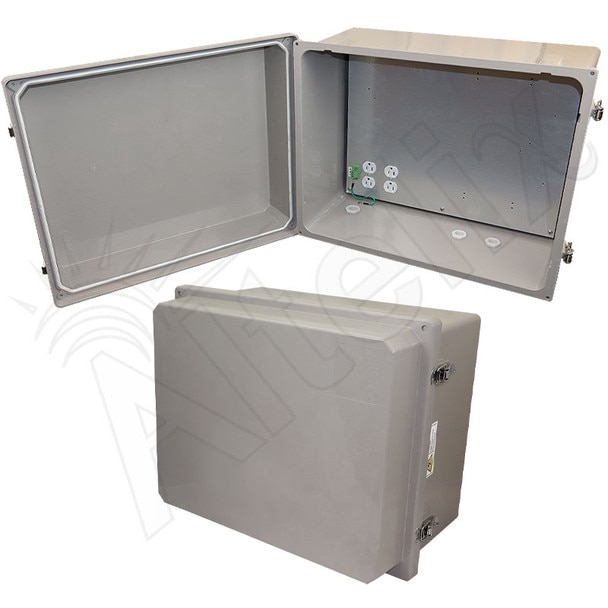

Altelix NF162012A1 - 16x20x12 Fiberglass Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets

Altelix 16x20X12 Fiberglass Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets (NF162012A1)

Weatherproof Protection and 120VAC Power Outlets

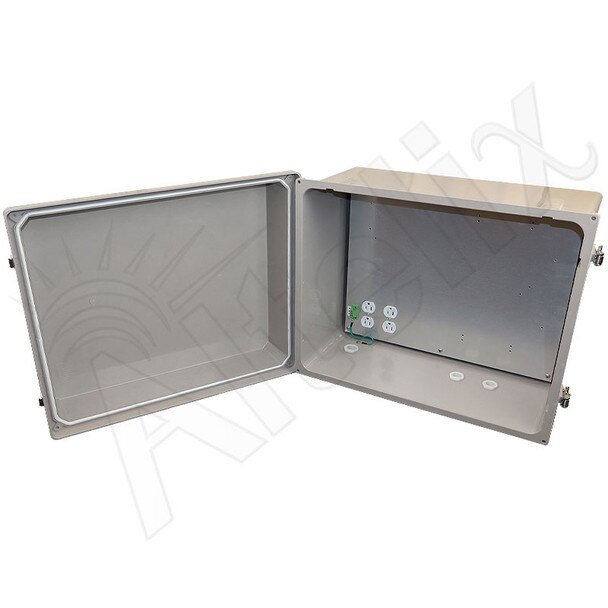

The Altelix NF162012 Series Enclosures are designed with all the same rugged components as our NF14 Series enclosures, but in a larger size to accommodate larger and more equipment. This NEMA 4X enclosure features four pre-wired 120VAC power outlets and a quick-connect terminal strip for easy wiring by a qualified installer. The finished aluminum equipment mounting plate can be easily drilled by the installer for unique application requirements.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

Increased Interior Space

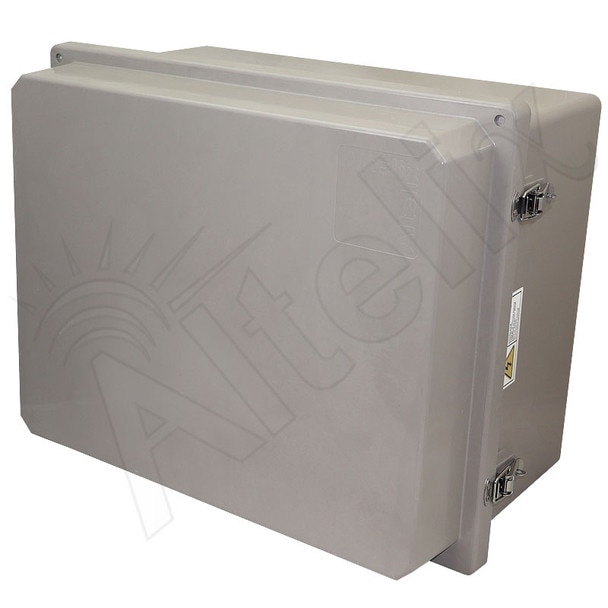

The NF162012 series enclosures feature an extra deep lid, over 3 inches deep. With the generous size of this enclosure and extended lid the NF162012 can accommodate a wide range of equipment.

Also Available in 20”x16""x12” Configuration
This enclosure is also available in a 20""x16”x12” configuration. For more information see NF201612A1.

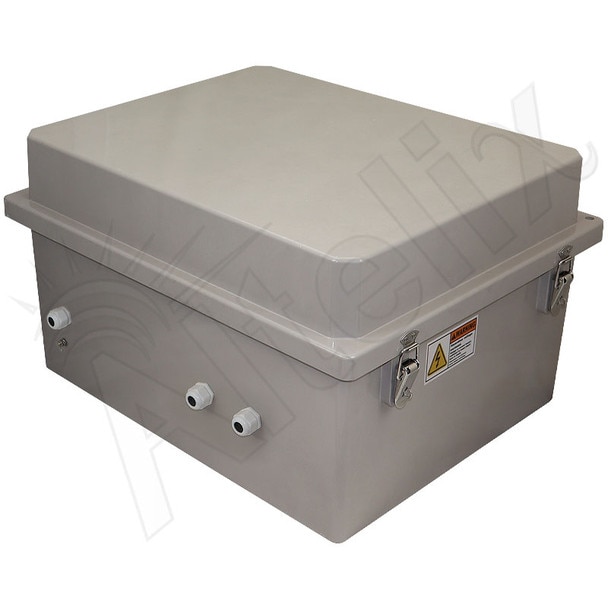

Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

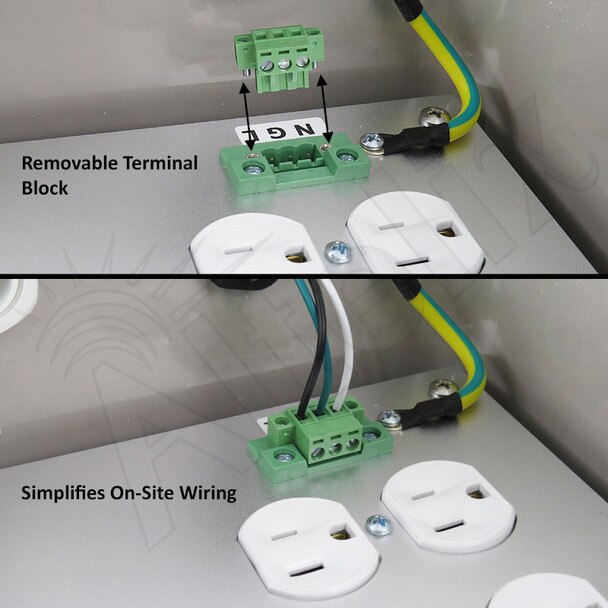

Removable Terminal Block
This enclosure features our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

Mounting

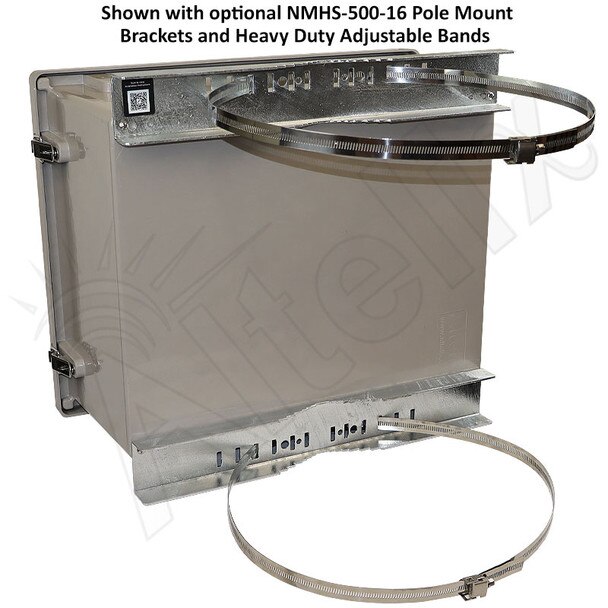

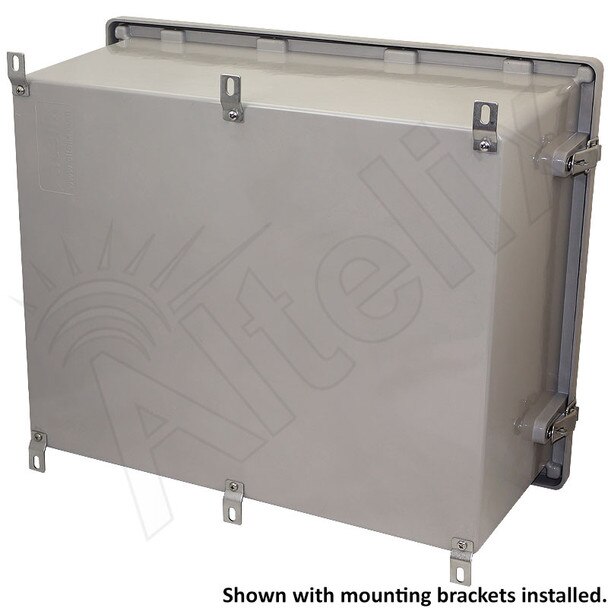

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

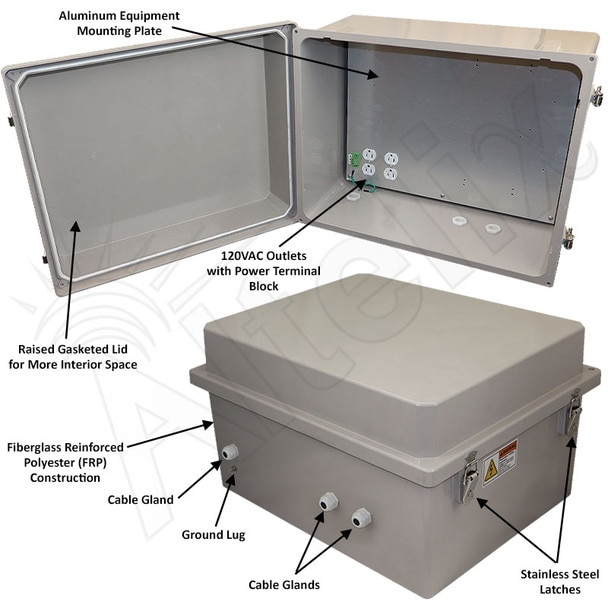

Features

• New 16x20x12 Size Ideal for Wider Equipment as well as 19" Wide Equipment Racks!
• (4) Pre-Wired 120VAC Outlets
• Removable 120VAC Power Terminal Block
• Aluminum Equipment Mounting Plate
• Extra Deep Extended Lid for Increased Equipment Clearance
• Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
• Stainless Steel Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
• Includes Cable Glands and Stainless Steel Mounting Feet
• RF Transparent Enclosure
• Pole Mounting Kit Available

Applications

• Rapid Deployment Systems
• Harsh Environments
• WiFi Enclosure
• 19" Wide Equipment Racks
• RFID Reader Enclosure
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Outdoor use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
• Building Automation Controls
• Industrial Controls Enclosure
